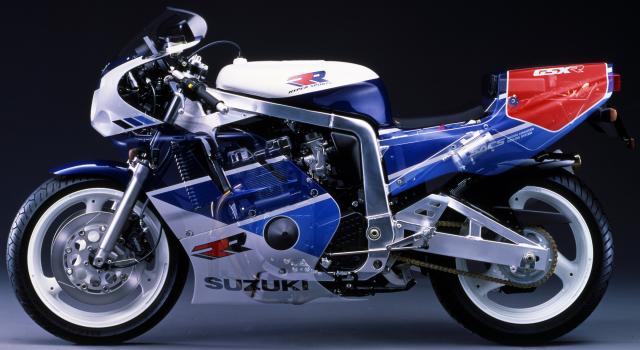

Suzuki GSX-R 750RR Limited Edition

Make Model	Suzuki GSX-R 750RR Limited Edition
Year	1989
Engine	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity	748 c / 45.6 cub. in.
Bore x Stroke	73.0 x 44.7 mm
Compression Ratio	10.9:1
Cooling System	Air/Oil cooled
Engine Oil	10W/40
Exhaust System	4-into-1-into-2 Stainless-steel exhaust
Lubrication	Wet sump
Induction	4 x 40 mm Slingshot carburetors
Ignition	Full transistor
Spark Plug	NGK JR9C
Starting	Electric
Max Power	80.2 kW / 112 hp @ 11000 rpm
Max Power Rear Tyre	67.9 kW / 91 hp @ 11000 rpm
Max Torque	74.5 Nm / 7.6 kgf-m / 54.9 ft-lb @ 10000 rpm
Clutch	Cable operated, wet multiple, coil spring
Transmission	6 Speed, constant mesh
Final Drive	#530 Chain, O-ring sealed, 108 links
Gear Ratios	1st 2.38 / 2nd 1.88 / 3rd 1.63 / 4th 1.45 / 5th 1.29 / 6th 1.20:1
Frame	Lightweight aluminium alloy frame incorporated 45mm box tube main section and cast swing arm pivot
Front Suspension	43 mm Telescopic forks adjustable for preload rebound damping
Rear Suspension	Full-floater Monoshock adjustable for preload rebound damping
Front Brakes	2 x 310 mm Discs, 4 piston calipers
Rear Brakes	Single 230 mm disc, 1 piston caliper
Wheels	Alloy, 3 spoke
Front Rim	3.5 x 17
Rear Rim	4.5 x 17
Front Tyre	120/60 ZR17
Rear Tyre	160/60 ZR17
Wheelbase	1400 mm / 55.1 in.
Dimensions	Length 2055 mm / 80.9 in. Width 730 mm / 28.7 in. Height 1100 mm / 43.3 in.
Dry Weight	187 kg / 412 lbs
Fuel Capacity	19 Litres / 5.0 US gal / 4.2 Imp gal
Average Consumption	6.6 L/100 km / 15.1 km/l / 35.5 US mpg / 42.8 Imp mpg
Stopping Distance 100 kmh-0 (60mph-0)	37.2 m / 122 ft
Standing ¼ mile	11 sec / 203 km/h / 126 mph
Top Speed	248.3 km/h / 154.3 mph

The luscious and expensive limited edition GSX-R750R was released to Japanese market with a return to the long-stroke motor of the F/G/H models. 500 limited edition (some claim 1000) GSX-R750R ( the 'Double R') serving as ready-to-race platform The newly redesigned engine reverted to the original long stroke (70 x 48.7mm) configuration. Crankcase, crankshaft connecting rods and clutch were among the critical areas receiving more attention necessary for the race duty. The 'Double R' also received new 40mm Slingshot carburetor and 4-into-1 exhaust pipe as well as close ratio gearbox, rear swing arm with sub frame, new aerodynamic fiber with large air intake duct, solo seating with race number box and 19 liter aluminium fuel tank as standard equipment. The dry weight measured, 187kg.

When the Suzuki GSX-R750 was launched in 1985, it was the lightest, quickest, most advanced sportsbike available to the public. ‘This pure supersports model was our first 750cc bike featuring an aluminum frame of unprecedented light weight and superb torsional rigidity. We had no real competitors in the market, other than factory racing machines,’ says Hiroshi Fujiwara, the Japanese engineer who headed the development of the first GSX-R back in the 1980s.

With 99 horsepower from its carbureted, oil-cooled, inline-four and with a dry weight of about 179 kilos, the mid-1980s GSX-R750 offered performance that was unrivalled in its time. ‘We knew that reaching our goal of the world's best power-to-weight ratio – required to realize overpowering performance – would be an enormous challenge,’ says Isamu Okamoto, the man responsible for designing the first GSX-R750’s engine.

And yet, Suzuki not only took on that challenge with the 1985 GSX-R750 but also upped the ante in 1986 with the GSX-R750 Limited Edition. At US$6,500 the LE cost $2,000 more than the standard GSX-R750 and was the most expensive Japanese sportsbike of its time. It featured bits like a gold-plated chain, high-performance radial tyres, single seat, tail section made of hand-laid fiberglass, dry clutch, 41mm ‘NEAS’ front forks (with an electrically activated anti-dive mechanism), three-point steering damper and twin 310mm brake discs up front. And at 176 kg dry, the LE was also 3kg lighter than the standard GSX-R750. These things may not sound special today, but added up to a pretty trick sportsbike back in 1986.
