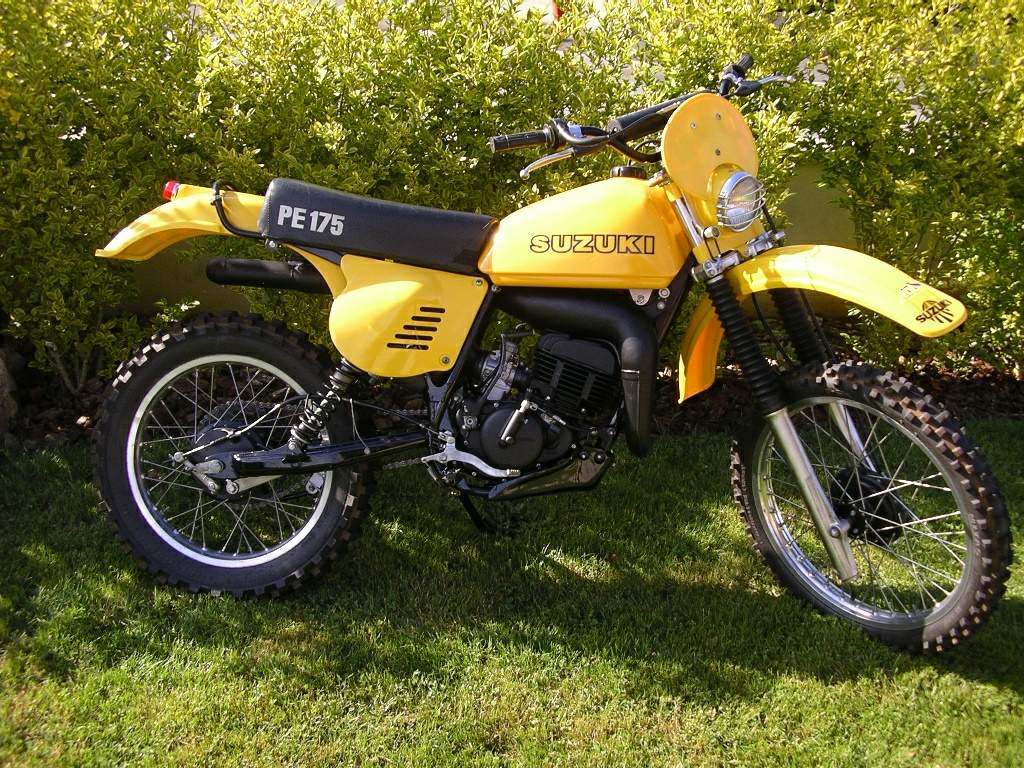

Suzuki PE 175

.

Make Model

Suzuki PE 175

Year

1978

Engine

Two stroke, single cylinder, piston and reed valve

Capacity

172 cc / 10.7 cu in
Bore x Stroke 62 x 57 mm
Compression Ratio 7.9:1
Cooling System Air cooled

Lubrication System

Fuel/oil premix, 20:1

Induction

Mikuni VM34SS carburetor

Ignition

Suzuki PEI

Spark Plug

NGK B10EGV, Champion N-59G

Starting

Kick

Max Power

18 kW / 24 hp @ 9500 rpm

Max Torque

18.5 Nm / 1.9 kgf-m / 13.7 lb-ft @ 7500 rpm

Clutch

Wet, multiplate

Transmission

6 Speed

Final Drive

Chain, DAIDO DID 520UB, 106 links

Primary Reduction

2.761 (58/21)

Final Reduction

4.000 (48/12)

Gear Ratios

1st 3.00 (33/11) / 2nd 2.142 (30/14) / 3rd 1.647 (28/17) / 4th 1.300 (26/20) / 5th 1.045 (23/22) / 6th 0.875 (21/24)

Front Suspension

Telescopic pneumatic/coil spring, oil dampened

Rear Suspension

Full-floating suspension system, swingarm, gas/oil damped, sprin pre-load adjustable, damper 4-way adjustable

Front Brakes

Drum, internal expanding

Rear Brakes

Drum, internal expanding

Front Tyre

3.00-21 4PR

Rear Tyre

4.00-18 4PR

Caster

62o

Trail

113 mm / 4.45 in

Steering Angle

45o (left & right)

Turning Radius

2.3 m / 7.5 ft

Dimensions

Length: 2100 mm / 82.7in
Width:   880 mm / 34.6 in
Height: 1200 mm / 47.2 in

Wheelbase

1420 mm / 55.9 in

Ground Clearance

280 mm / 11.0 in

Dry-Weight

98 kg / 216 lbs

Transmission Oil Capacity

0.8 Litres / 0.85 US qt / 0.7 Imp qt

Fuel Capacity

12 Litres / 3.2 US gal / 2.6 Imp gal
