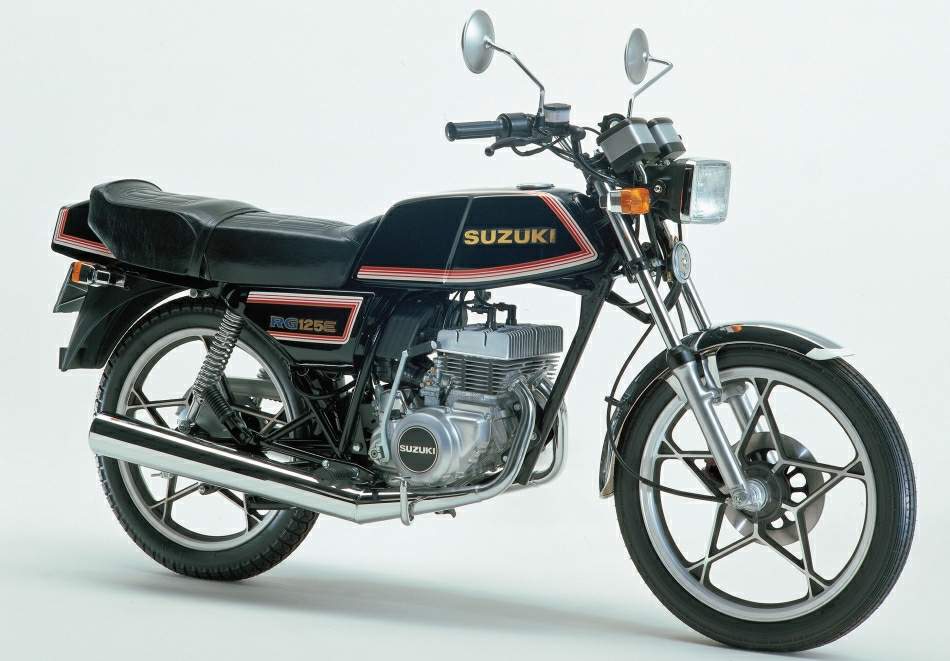

Suzuki RG 125E

.

Make Model

Suzuki RG 125E

Year

1980 - 84

Engine

Single cylinder, two-stroke, piston valve

Capacity

124 cc / 7.6 cu in
Bore x Stroke 43 х 43 mm
Compression Ratio 6.8:1
Cooling System Air cooled

Starting

Kick

Max Power

11.9 kW / 16 hp @ 9500 rpm

Max Torque

12.7 Nm / 1.3 kgf-m / 9.4 lb-ft @ 8500 rpm

Clutch

Wet, multi-plate

Transmission

5 Speed constant mesh

Final Drive

Chain

Frame

Steel pipe, single cradle

Front Suspension

Telescopic, oil dampened

Rear Suspension

Swingarm, dual shocks, coils, oil dampened

Front Brakes

Single disc, hydraulic

Rear Brakes

Drum, internal expanding

Front Tyre

2.75-18

Rear Tyre

3.00-18

Dimensions

Length: 1970 mm / 77.6 in
Width:     750 mm / 29.5 in
Height:  1035 mm / 40.7 in

Wheelbase

1270 mm / 50.0 in

Dry Weight

115 kg / 253 lbs
