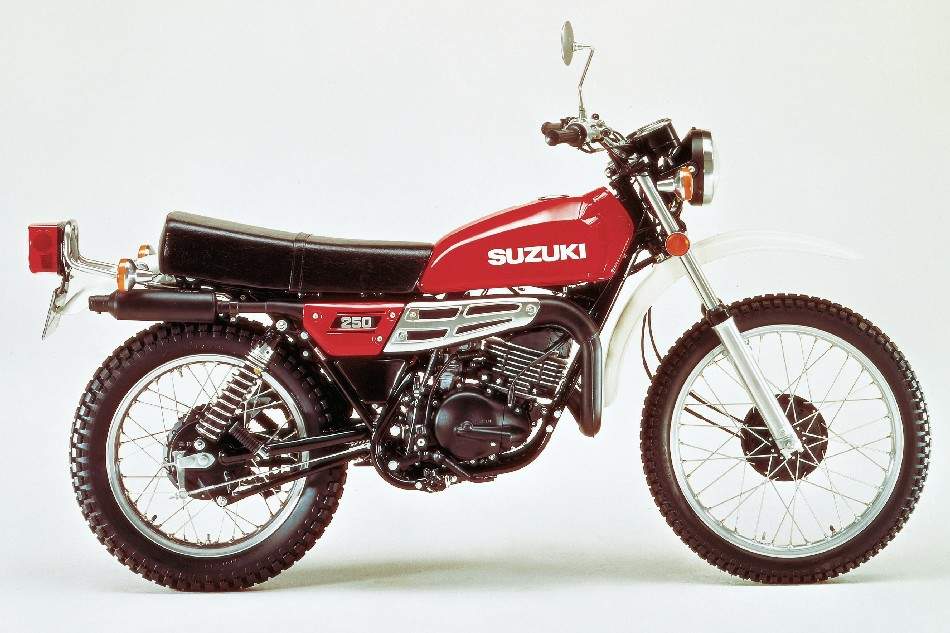

Suzuki TS 250

.

Make Model

Suzuki TS 250

Year

1976 - 77

Engine

Two stroke, single cylinder, reed valve

Capacity

246 cc / 15.0 cu in
Bore x Stroke 72 x 64 mm
Compression Ratio 6.5:1
Cooling System Air cooled
Lubrication System Fuel/oil mix, Posi-force, CCI

Exhaust

Single, high drawn

Induction

Mikuni VN28SS carburetor

Ignition

Suzuki PEI

Starting

Kick

Max Power

17.2 kW / 23 hp @ 6500 rpm

Max Torque

26.5 Nm / 2.7 kgf-m / 19.6 lb-ft @ 5000 rpm

Clutch

Wet, multi-plate

Transmission

5 Speed, constant mesh

Final Drive

Chain

Frame

Double cradle, tubular steel

Front Suspension

Telescopic fork, oil damped

Front Wheel Travel

175 mm / 6.9 in

Rear Suspension

Swingarm, dual shocks, coil springs, 5-way adjustable

Front Brakes

Drum, internal expanding

Rear Brakes

Drum, internal expanding

Front Tyre

3.25-19 4PR Trails

Rear Tyre

4.00-18 4PR Trails

Dimensions

Length: 2184 mm / 86.0 in
Width:     889 mm / 35.0 in
Height:  1100 mm / 43.3 in

Wheelbase

1415 mm / 55.7 in

Ground Clearance

249 mm / 9.8 in

Dry Weight

111 kg / 245 lbs

Oil Capacity

1.1 L / 2.3 US pt / 1.9 Imp pt

Fuel Capacity

9.1 L / 2.4 US gal / 2.0 Imp gal

Top Speed (est.)

129 km/h / 80 mph
.

The Suzuki TS series is a family of two-stroke, dual-sport motorcycles made by Suzuki since 1969. The series was the first Suzuki trail bikes sold on the mass market. Most of the TS line had an air-cooled engine and most models were introduced alongside the closely related TM (Motocross) or TC (trail) models, TF (farm) and also the DS (for Dirt Sport, which had no turn signals, and simplified lighting) which in most cases shared engine and chassis designs. Suzuki's first mass market motocross bike, the TM400 Cyclone, was introduced in 1971 and was based on the TS that first sold in 1969. A TS185ER model was available in a few countries.
