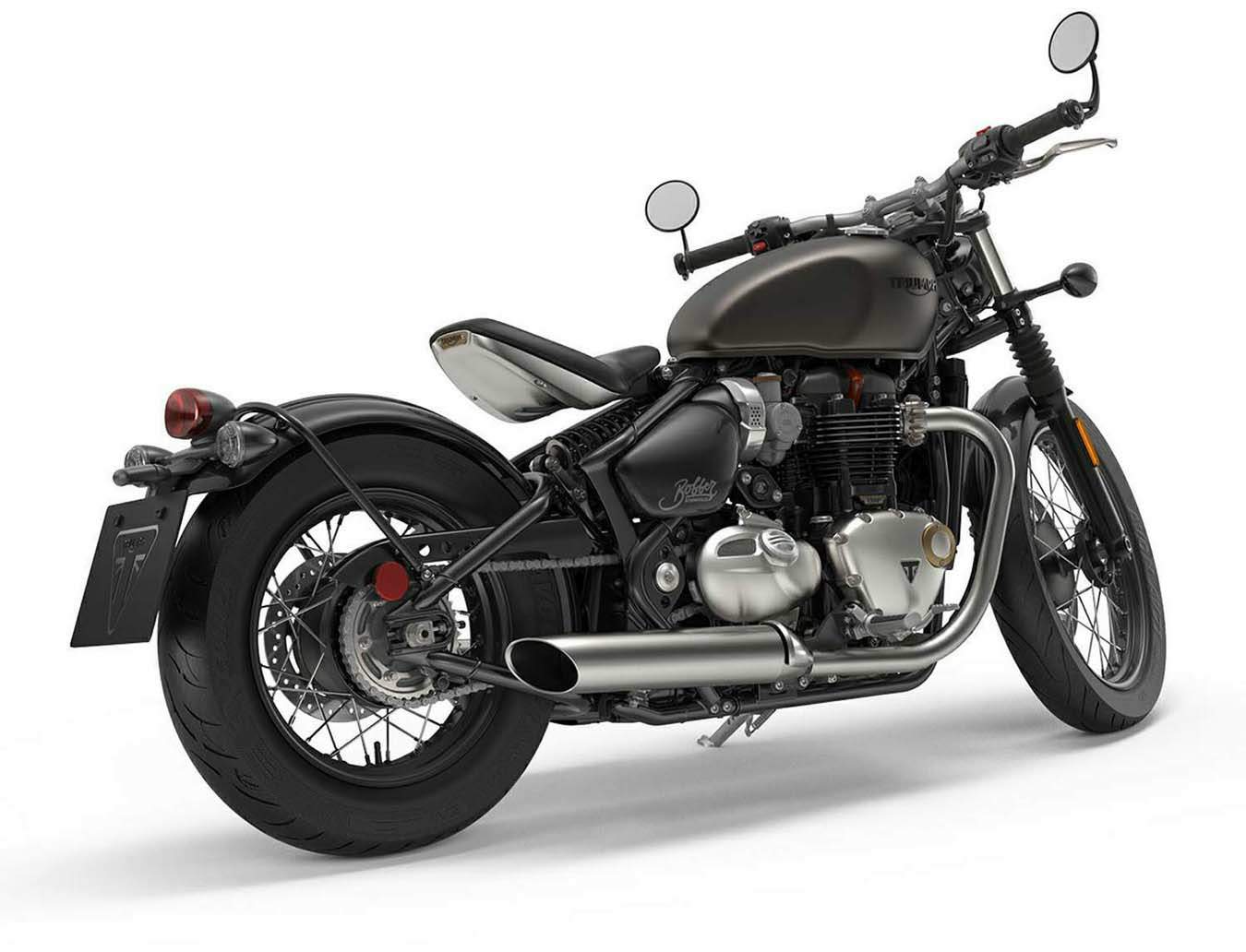

Triumph Bonneville Bobber

.

Make Model

Triumph Bonneville Bobber

Year

2017 - 18

Engine

Four stoke, parallel twin, 270o crank, SOHC

Capacity

1198 cc / 73.1 cu in
Bore x Stroke 97.6 x 80 mm
Compression Ratio 10.0:1
Cooling System Liquid cooled
Lubrication Wet sump
Exhaust Straight line stainless steel twin-skin slash cut twin stubby silencers

Induction

Multipoint sequential electronic fuel injection

Ignition

Digital

Starting

Electric

Max Power

57.4 kW / 77 hp @ 6550 rpm

Max Torque

105 Nm / 10.7 kgf-m / 77.4 lb-ft @ 3100 rpm
Clutch Wet, multi-plate

Transmission

6-Speed
Final Drive Chain, X-ring
Frame Dual tubular steel cradle

Front Suspension

Kayaba 41 mm forks

Front Wheel Travel

120 mm / 4.7 in

Rear Suspension

Kayaba twin shocks with adjustable preload

Rear Wheel Travel

120 mm / 4.7 in

Front Brakes

Single 310 mm disc, 2 piston floating Nissen calipers, ABS

Rear Brakes

Single 255 mm disc, 2 piston floating Nissen caliper, ABS
Wheels Wire 32-spoke, steel rims

Front Tyre

100/90-19

Rear Tyre

150/80-16
Rake 25.8º
Trail 87.0 mm / 3.4 in
Dimensions Length 2235 mm / 87.9 in
Width   800 mm / 31.5 in
Height  1025 mm / 40.4 in
Wheelbase 1510 mm / 59.4 in
Seat Height Solo 690 mm / 27.2 in

Dry Weight

228.0 kg / 502.7 lbs

Fuel Capacity

10.6 Litres / 2.8 US gal / 3.2 Imp gal
.

The latest addition to the Bonneville family, Triumph introduces the all-new premium custom Bonneville Bobber. Born in a unparalleled bloodline of Triumph bobber customs that stretch all the way back to the 1940’s it perfectly encapsulates the minimalist styling principles, muscular stance and purposeful engineering attitude of a genuine bobber.

THE PREMIUM CUSTOM BONNEVILLE BOBBER

Brutally beautiful, the new Bonneville Bobber is a genuine factory custom. It perfectly encapsulates the minimalistic styling principles, muscular stance and purposeful engineering attitude of a genuine Bobber.

Stripping the Bonneville T120 back to its purest essence it delivers all the hallmarks of a real bobber. With clean lines and low stance, single seat, wide flat bars, minimal bodywork and headlight, sculpted tank, wire spoked wheels, with wide rear wheel and that all important hard tail look.

An all-new chassis, suspension and frame deliver a supremely confident, dynamic and comfortable category defining ride. With an innovative elegantly engineered adjustable seat and clock position to suit the rider and riding style. The stunning ‘swing cage’ hard tail set-up and hidden mono-shock suspension make the bobber as dynamic and thrilling to ride as it is to look at.

All electronic components are hidden from view so as not to compromise its clean lines. Rider focused technology and the signature Bonnie straight-line ‘hidden cat box’ exhaust run, are all neatly incorporated without interfering with the Bobber’s stunning looks.

At the heart of the Bobber is a category-leading, high-torque Bonneville 1200cc engine with a dedicated Bobber tune for even more torque and power low down and twin slash cut sawn off peashooter silencers and unique twin airbox and filters to surround the rider in a pure Bonneville hot rod sound.

The Bonneville Bobber has over 150 additional accessories available to enhance its beauty further and make it truly unique.

The New Bonneville Bobber has absolutely peerless authenticity. A genuine Bonneville, the bike is truly iconic with unparalleled heritage, attitude and desirability – beautifully styled, with hot rod minimalism.

Stripped back to reveal its bare essence, the Bobber has been distilled from the iconic T120, sharing the Bonneville engineering and design DNA, but with its own unique, lower, more muscular and minimalist stance and a more purposeful and distinctive presence.

PREMIUM FINISHES

The Bonneville Bobber has many premium finishes including special bronze Bonneville 1200HT engine badge, premium tank badges and the signature Triumph makers mark triangle. Polished embellishments, brushed engine covers, machined detailing to instruments, silver satin and graphite handlebar risers, all comes together to create a stunning look that’s totally authentic and utterly unique.

HALLMARK FEATURES OF A GENUINE BOBBER

The Bonneville Bobber comes complete with all the hallmark features of a classic stripped back custom ride. Clean lines, low single seat pan with hard tail look, wide flat bars, sculpted fuel tank, narrow front and wide rear wire spoked wheels, minimal headlight and steel mudguards with centre ridge, all complement the sleek bodywork and add to its distinctive look.

PREMIUM FINISHES

The Bonneville Bobber has many premium finishes including special bronze Bonneville 1200HT engine badge, premium tank badges and the signature Triumph makers mark triangle. Polished embellishments, brushed engine covers, machined detailing to instruments, silver satin and graphite handlebar risers, all comes together to create a stunning look that’s totally authentic and utterly unique.

HALLMARK FEATURES OF A GENUINE BOBBER

The Bonneville Bobber comes complete with all the hallmark features of a classic stripped back custom ride. Clean lines, low single seat pan with hard tail look, wide flat bars, sculpted fuel tank, narrow front and wide rear wire spoked wheels, minimal headlight and steel mudguards with centre ridge, all complement the sleek bodywork and add to its distinctive look.

HIDDEN TECHNOLOGY

Fundamental to the Bonneville Bobber’s stunning looks is the elegant way that key components have been sensitively incorporated and hidden from view, so as not to compromise the clean lines or visual impact. Along with hiding away key technology like the ECU, ABS modulator and immobiliser, the signature Bonnie straight-line exhaust pipe run has a hidden cat box.

FIRST-IN-CLASS ADJUSTABLE RIDING POSITION

The Bonneville Bobber has a first-in-class adjustable riding position that can be tailored to suit the size and riding style of the rider.

The innovative aluminium seat pan can move up, down, forwards and backwards allowing you to tailor the seat position for a dynamic ‘up and forward’ ride, or a ‘down and back’ more traditional Bobber stance.

As well as the seat, the clock position can be tailored too with a simple quick-release mechanism that allows you to change the angle to suit your riding position.

FLOATING ALUMINIUM SINGLE SEAT PAN

The Bonneville Bobber has a beautiful, distinctive, floating aluminium single seat pan with cantilever support arm. The seat profile has been ergonomically optimised and sculpted for comfort with a beautifully stitched deep foam pad, finished with premium Triumph branding detail.

SWING CAGE AND SUSPENSION

There is a sublime black powder coated ‘cage’ swinging arm that brings the distinctive Bobber ‘hard-tail’ look, fitted with paddock stand bobbin mounts.

The hidden monoshock rear suspension set-up under the floating seat, has been designed to deliver superior suspension performance and comfort.

HIDDEN TECHNOLOGY

Fundamental to the Bonneville Bobber’s stunning looks is the elegant way that key components have been sensitively incorporated and hidden from view, so as not to compromise the clean lines or visual impact. Along with hiding away key technology like the ECU, ABS modulator and immobiliser, the signature Bonnie straight-line exhaust pipe run has a hidden cat box.

FIRST-IN-CLASS ADJUSTABLE RIDING POSITION

The Bonneville Bobber has a first-in-class adjustable riding position that can be tailored to suit the size and riding style of the rider.

The innovative aluminium seat pan can move up, down, forwards and backwards allowing you to tailor the seat position for a dynamic ‘up and forward’ ride, or a ‘down and back’ more traditional Bobber stance.

As well as the seat, the clock position can be tailored too with a simple quick-release mechanism that allows you to change the angle to suit your riding position.

SLASH-CUT EXHAUST – HOT ROD SOUND

Thrilling slash-cut brushed stainless steel twin sawn-off ‘peashooter’ style silencers deliver a pure Bonneville hot rod sound that envelops its rider.

BONNEVILLE 1200HT ENGINE BOBBER TUNE

The category-leading, high-torque (HT) Bonneville 1200cc engine has a dedicated Bobber tune, delivering even more torque and power low down than the Bonneville T120. To maximise the riding character the Bobber has a new twin airbox and twin filter set-up, unique intake and exhaust system and new output shaft. The latest electronic ride-by-wire system has also been incorporated for enhanced throttle control, with 2 riding modes and liquid cooling sensitively incorporated for greater fuel efficiency.

The new Bonneville Bobber has an extended service interval of 10,000 miles (16,000 km) contributing to a reduced cost of ownership.

SLASH-CUT EXHAUST – HOT ROD SOUND

Thrilling slash-cut brushed stainless steel twin sawn-off ‘peashooter’ style silencers deliver a pure Bonneville hot rod sound that envelops its rider.

BONNEVILLE 1200HT ENGINE BOBBER TUNE

The category-leading, high-torque (HT) Bonneville 1200cc engine has a dedicated Bobber tune, delivering even more torque and power low down than the Bonneville T120. To maximise the riding character the Bobber has a new twin airbox and twin filter set-up, unique intake and exhaust system and new output shaft. The latest electronic ride-by-wire system has also been incorporated for enhanced throttle control, with 2 riding modes and liquid cooling sensitively incorporated for greater fuel efficiency.

The new Bonneville Bobber has an extended service interval of 10,000 miles (16,000 km) contributing to a reduced cost of ownership.

WHEELS AND TYRES

Classic wire-spoke wheels, big rear wheel set-up and stylish black rims give the bike its signature bobber look and feel.

The Bonneville Bobber is fitted with Avon Cobra tyres that have been developed specifically for the bike – 19 x 2.5in on the front and a wider 16 x 3.5in on the rear. for improved high-speed manoeuvrability with class leading stability.

CATEGORY DEFINING CAPABILITY, CONTROL AND COMFORT

The Bonneville Bobber is built on an all new frame, chassis and suspension set up, with class defining dynamics and characterful commanding ergonomics. The new bespoke frame has been designed to suit the unique geometry and minimal tail end shape of the Bobber, with new front forks and bespoke damping.

The first-in-class adjustable riding position and low seat height make the Bobber easily accessible and suitable for different size riders and riding styles.

WHEELS AND TYRES

Classic wire-spoke wheels, big rear wheel set-up and stylish black rims give the bike its signature bobber look and feel.

The Bonneville Bobber is fitted with Avon Cobra tyres that have been developed specifically for the bike – 19 x 2.5in on the front and a wider 16 x 3.5in on the rear. for improved high-speed manoeuvrability with class leading stability.

CATEGORY DEFINING CAPABILITY, CONTROL AND COMFORT

The Bonneville Bobber is built on an all new frame, chassis and suspension set up, with class defining dynamics and characterful commanding ergonomics. The new bespoke frame has been designed to suit the unique geometry and minimal tail end shape of the Bobber, with new front forks and bespoke damping.

The first-in-class adjustable riding position and low seat height make the Bobber easily accessible and suitable for different size riders and riding styles.

ENHANCED RIDER-FOCUSED TECHNOLOGY

FEATURE PACKED SINGLE CLOCK

The new Bobber has a stylish feature-packed single clock with a beautiful machined dial face, neatly housing a digital menu system, accessed by a handlebar mounted scroll button. Key features include: gear position indicator, odometer, rev counter, two trip settings, service indicator, range to empty, fuel level, average and current MPG, clock plus access to turn off traction control features.

LED REAR LIGHT, INDICATORS & NUMBER PLATE LIGHT

The LED rear light, indicators and number plate light have each been sensitively incorporated in keeping with the Bobber’s minimalistic look and provide a distinctive light pattern and greater power efficiency for long term durability.

Engine Immobiliser

The Bonneville Bobber features a Thatcham approved security device that integrates a transponder into the new Bobber key, linked to a receiver in the ignition system, to prevent the engine from running without the correct key present.

Ride-by-wire

The latest generation ride-by-wire system brings a new level of control to the Bonneville Bobber, with minimal visual impact.

Liquid Cooling

The modern liquid cooling system provides more clean fuel efficient riding, better fuel economy and a high first major service interval of 10,000 miles.

Riding Modes

Linked to the ride-by-wire system the Bobber has two selectable riding modes – ‘road’ and ‘rain’ for greater control and safety. The two dedicated throttle maps can be selected via the handlebar mounted switch gear.

Switchable Traction Control

The new Bobber incorporates a switchable traction control system that optimises the delivery of torque when traction is compromised to maximise rider safety and control.

Torque-assist clutch

The torque-assist clutch system brings a light touch and feel to the clutch control of the Bobber, helping reduce clutch lever effort for the rider, making it easier to ride for longer. The system also reduces the clutch packaging, allowing for a slimmer engine profile.

FEATURE PACKED SINGLE CLOCK

The new Bobber has a stylish feature-packed single clock with a beautiful machined dial face, neatly housing a digital menu system, accessed by a handlebar mounted scroll button. Key features include: gear position indicator, odometer, rev counter, two trip settings, service indicator, range to empty, fuel level, average and current MPG, clock plus access to turn off traction control features.

LED REAR LIGHT, INDICATORS & NUMBER PLATE LIGHT

The LED rear light, indicators and number plate light have each been sensitively incorporated in keeping with the Bobber’s minimalistic look and provide a distinctive light pattern and greater power efficiency for long term durability.

Engine Immobiliser

The Bonneville Bobber features a Thatcham approved security device that integrates a transponder into the new Bobber key, linked to a receiver in the ignition system, to prevent the engine from running without the correct key present.

Ride-by-wire

The latest generation ride-by-wire system brings a new level of control to the Bonneville Bobber, with minimal visual impact.

Liquid Cooling

The modern liquid cooling system provides more clean fuel efficient riding, better fuel economy and a high first major service interval of 10,000 miles.

Riding Modes

Linked to the ride-by-wire system the Bobber has two selectable riding modes – ‘road’ and ‘rain’ for greater control and safety. The two dedicated throttle maps can be selected via the handlebar mounted switch gear.

bars, headlight bezel, bar end peep mirrors, clip on handlebars, shortened front mudguard and LED indicators that add even more muscle and style.

You can upgrade the comfort level too with practical accessories such as heated grips, cruise control kit, swing arm bag and a ribbed or quilted seat.

The Bonneville Bobber really is your canvas for individual styling.
