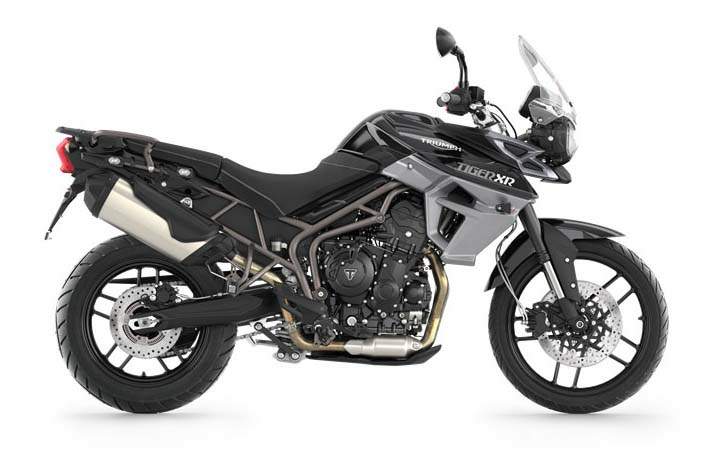

Triumph Tiger 800 XR

.

Make Model

Triumph Tiger 800 XR

Year

2017 - 18

Engine

Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.

Capacity

799 cc / 48.7 cub in
Bore x Stroke 74 x 61.9 mm
Cooling System Liquid cooled
Lubrication Wet sump
Oil Capacity 3.7 L / 0.98 US gal / 0.83 Imp gal

Induction

Multipoint sequential electronic fuel injection

Ignition

Digital CDI
Starting Electric
Exhaust Stainless Steel, 3 into 1, high-level stainless steel silencer
Clutch Wet, multi-plate

Max Power

70.8 KW / 95 hp @ 9300 rpm

Max Torque

79 Nm / 8.1 kgf-m / 58 ft.lb @ 7850 rpm

Transmission

6 Speed
Final Drive Chain, O-ring
Frame Tubular steel trellis frame, swingarm: Twin-sided, cast aluminum alloy

Front Suspension

Showa 43mm upside down forks
Front Wheel Travel 180 mm / 7.1 in

Rear Suspension

Showa monoshock with hydraulically adjustable preload
Rear Wheel Travel 170 mm / 6.7 in

Front Brakes

2 x 305 mm floating discs, Nissin 2­piston sliding calipers, Switchable ABS

Rear Brakes

Single 255 mm disc, Nissin single piston sliding caliper, Switchable ABS

Front Wheel

Cast aluminium alloy 10-spoke

Rear Wheel

Cast aluminium alloy 10-spoke

Front Tyre

100/90-19

Rear Tyre

150/70 R17

Rake 24.3°
Trail 95.3 mm / 3.75 in

Dimensions

Length 2215 mm / 87.1in
Width 865 mm / 34.1 in (with handlebars)
Height 1390 mm / 54.7 in (without mirrors)
Wheelbase 1545 mm / 60.8 in
Seat Height 810 mm - 830 mm / 31.8 in- 32.6 in adjustable

Dry Weight

190 kg / 419 lbs
Dry Weight 199 Kg / 438.7 lbs

Wet Weight

213 kg / 469 lbs

Fuel Capacity

19 Litres / 5.0 US gal / 4.2 Imp gal

The new road-loving Tiger 800 XR is a no-nonsense bike that’s perfect for touring the world’s highways, with superb off the beaten track handling.

The XR is a ride with a smooth delivery and confidence-inducing capability. The more responsive Triumph 800 Triple engine and the lighter, improved exhaust system are just two of the many features, innovations and modifications that have been designed into the latest generation of the XR model.

19-inch aluminium cast front wheel and Metzeler Tourance tyres work in harmony with the adjustable suspension of the XR for a smooth and comfortable road ride. You’ll benefit from the new shorter ratio first gear, giving you more low-speed traction and instant responsiveness right when you need it most. All this is in addition to category-defining core technologies including ride-by-wire throttle and switchable ABS and traction control.
The new Tiger 800 XR sets the bar for all-road, all-day comfort.

With cast wheels , 19” front wheel, hydraulically adjustable Showa monoshock suspension and a torque-laden 95 PS 800cc triple engine the XR is ideally suited both for long road adventures and every-day functionality. Rider technology comes as standard with ride-by-wire throttle for improved response and feel, Triumph Traction Control and switchable ABS. Together with a chassis designed to exploit every ounce of torque from the triple engine and adjustable seat height for excellent comfort: you have the perfect machine to tackle the day ahead.

Adventure riding has a new pioneer.

Standard Equipment

Thrilling new generation 800cc engine providing more power and torque low down
Lower ratio 1st gear improving acceleration and off-road traction
Lighter, freer-flowing exhaust
New cast road wheels including 19” front
Switchable ABS and Traction Control
Tailored ergonomics – adjustable seat height, handlebar position, brake and clutch levers
Metzeler Tourance tyres
On Board computer
12V & USB Power Sockets
Immobiliser

It’s your ride, it’s your journey, and it’s your planet to explore. So whether you choose motorways or mud tracks, twisty tarmac or bumpy town streets, Triumph’s range of adventure and touring motorcycles all share your passion for travel and discovery.

THE NEW TIGER 800 XC AND XR RANGE – One of Triumph’s best-loved motorcycles, the new Tiger 800 XC and XR family takes this celebrated range to a new level. With 200 upgrades, including the highest ever level of state-of-the-art technology, enhanced rider ergonomics, more capability and a more responsive power delivery from the latest generation Triple engine, our Tigers are better in every way, off road and on.
TIGER XC – MAXIMUM FUN. EVERY DAY. EVERYWHERE.
The new Tiger 800 XC family’s credentials are undeniable and now come with over 200 upgrades including a major technology update with new full-colour TFT instruments, a more responsive signature Triple engine, a shorter ratio first gear for enhanced off-road traction and all-road acceleration, new ‘Off-Road Pro’ riding mode, they are radically better off-road. There are two new Tiger XC models, each one tailor-made with a dedicated level of technology and equipment, the Tiger’s legendary accessible and agile easy-riding style, as well as enhanced rider ergonomics, more distinctive Tiger poise, and premium finish and detailing. The result? You’re looking at a Tiger 800 XC line-up that is genuinely better in every way, on the road…but especially off it.


TIGER XR – ENJOY. EVERY. SINGLE. MOMENT.
With a bloodline that stretches over 80 years of motorcycle adventuring, the latest generation Tiger 800 XR offers the most road-focused adventure set-up ever across four new models, each packed with its own dedicated level of new technology and equipment. From crowded city streets, to country lanes with sweeping bends, to mile-munching highways, the new Tiger 800 XR family sets the bar even higher with over 200 chassis and engine upgrades and a whole new level of technology, performance and capability for all-road, all-day comfort. As any true adventure rider will tell you, there’s always further to go, and the new Tiger XR goes the extra mile with a major step up in the signature easy-handling, thrilling Triple engine and purposeful premium style.
TIGER 800 XCA
For total confidence in your off-road adventures, the XCA now boasts six riding modes (including the new ‘Off-Road Pro’ and a rider-programmable mode for the ultimate personalised set-up). The range-topping XCA takes its specifications to the highest-ever level with the addition of LED headlight and foglights, heated rider and pillion seats, and stylish backlit illuminated switchcube buttons.
OFF-ROAD ADVENTURE RANGE
With the highest level of technology ever, a more responsive Triple engine, and enhanced rider ergonomics the Tiger 800 XC range has never had as much off-road capability and all-road comfort. With two models to choose from, both with more style, premium bodywork, and a dedicated set-up of technology and equipment the new Tiger 800 XC range is built to be as great off-road as it’s always been on.
TIGER 800 XCX
With both off-road and road-based adventure firmly in mind, the XCX has five riding modes (including all-new ‘Off-Road Pro’), a new full-colour 5″ adjustable TFT instrument display, new five-position adjustable screen, and powerful Brembo front brakes. With new technology and enhanced rider ergonomics, the XCX delivers maximum poise and capability.
TIGER 800 XCA
For total confidence in your off-road adventures, the XCA now boasts six riding modes (including the new ‘Off-Road Pro’ and a rider-programmable mode for the ultimate personalised set-up). The range-topping XCA takes its specifications to the highest-ever level with the addition of LED headlight and foglights, heated rider and pillion seats, and stylish backlit illuminated switchcube buttons.
OFF-ROAD ADVENTURE RANGE
With the highest level of technology ever, a more responsive Triple engine, and enhanced rider ergonomics the Tiger 800 XC range has never had as much off-road capability and all-road comfort. With two models to choose from, both with more style, premium bodywork, and a dedicated set-up of technology and equipment the new Tiger 800 XC range is built to be as great off-road as it’s always been on.
TIGER 800 XRT
The incredibly versatile 800 XRT utilises advanced technology to give you the most capable and comfortable riding experience possible. With this range-topping XRT, the specification reaches the highest level ever with the addition of Showa adjustable suspension, heated rider and passenger seats, all-LED lighting, and a total of five different riding modes to choose from, including a rider-programmable mode, to personalise the set-up of the bike exactly as you want it.


ROAD ADVENTURE RANGE
Built for maximum adventure every day, with enhanced rider ergonomics, the highest level of technology ever, a major engine update and more all-day comfort, the Tiger 800 XR range is ready to take you everywhere, from the city streets to touring in style. With four models to choose from, all with more premium bodywork and dedicated technology and equipment set-ups, the new Tiger 800 XR range is just like you… born for adventure.
TIGER 800 XR
The superb entry point into this exciting range is the Tiger 800 XR. Packed with its own dedicated level of technology and equipment, the new XR maintains the Tiger’s trademark agile handling, and boasts a standard specification that includes ride-by-wire throttle, switchable ABS and traction control, together with new cast wheels and lighter silencer for more of that signature Tiger style and performance.
TIGER 800 XRX
The extremely intuitive XRX model gives you an increased specification and even more stylish adventure performance. With a superb range of new developments including adjustable full-colour 5″ TFT display, four riding modes, new switchcubes for greater, more intuitive control, Brembo front brakes and a five-position adjustable windscreen, all come as standard.
TIGER 800 XRX LOW
To make this agile performer even more accessible, the Tiger 800 XRX is also available as a Low Ride Height option. In addition to the road-focused performance and its trademark agile handling, the combination of ergonomically designed lower seat set-up and dedicated suspension delivering a low seat height of 780mm, compared with 830mm on the standard XRX and can be lowered a further 20mm again to 760mm with the adjustable seat mechanism.
TIGER 800 XRT
The incredibly versatile 800 XRT utilises advanced technology to give you the most capable and comfortable riding experience possible. With this range-topping XRT, the specification reaches the highest level ever with the addition of Showa adjustable suspension, heated rider and passenger seats, all-LED lighting, and a total of five different riding modes to choose from, including a rider-programmable mode, to personalise the set-up of the bike exactly as you want it.
ROAD ADVENTURE RANGE
Built for maximum adventure every day, with enhanced rider ergonomics, the highest level of technology ever, a major engine update and more all-day comfort, the Tiger 800 XR range is ready to take you everywhere, from the city streets to touring in style. With four models to choose from, all with more premium bodywork and dedicated technology and equipment set-ups, the new Tiger 800 XR range is just like you… born for adventure.
TIGER 800 TECHNOLOGY
The new Tiger 800 XC and XR range represents a major step up in rider technology.
There are state-of-the-art enhancements on all bikes in the 800 XC and XR line-up and every single new addition has been developed for an even more thrilling ride than ever before. These exciting improvements include; full-colour adjustable TFT instruments, up to six riding modes, new switchcubes incorporating elegant backlit buttons, distinctive signature all-LED lighting and updated cruise control. On top of this comes a host of core technologies that are at the heart of the Tiger 800s superb riding experience, including; ride-by-wire throttle, switchable ABS and traction control, heated grips and heated rider and pillion seats, powered sockets (12v and USB) and an immobiliser.


KEY FEATURES INCLUDE NEW BREMBO FRONT BRAKES
High specification Brembo front brakes now come as standard on the mid and top spec Tigers, bringing premium braking capability off-road and on.
HIGH SPECIFICATION SUSPENSION AND RIDER SYSTEMS
Across the new line-up we have a host of high specification equipment including: Showa suspension on the XR models with new adjustable set-up on the top spec XRT, off-road focused WP long travel suspension on both XC models, and switchable ABS and traction control as standard.
EVEN MORE TIGER STYLE
More premium bodywork gives each new Tiger 800 a more dynamic stance that reflects the road and off-road bias of each model. Every Tiger gets the highest-ever level of finish and detailing with high quality badges, graphics, and paint finishes to enhance their contemporary style.
MORE RESPONSIVE ENGINE & SHORTER RATIO FIRST GEAR
The thrilling new generation, mass-optimised 800cc Triple engine delivers 95PS and brings with it even more responsiveness and acceleration. Add to this the new shorter ratio first gear and you get more low-speed traction and instant responsiveness right when you need it most, both off-road and on. To top it off there is a new lighter exhaust with an even better Triple soundtrack.
NEW FULL-COLOUR TFT INSTRUMENTS & ILLUMINATED SWITCHGEAR
The mid and top spec Tigers feature new angle-adjustable, full colour 5’’ TFT instruments that access a host of rider-focused technology available from the new on-board computer. With this comes new ergonomically designed switchcubes and 5-way joystick, which, on the top spec Tigers, feature premium illuminated backlit buttons.
UP TO SIX RIDING MODES, INCLUDING NEW ‘OFF-ROAD PRO’ MODE
To suit every type of environment and riding style, riding modes include: ‘Road’, ‘Rain’, ‘Off-Road’, ‘Sport’, ‘Rider programmable’ and an all-new ‘Off-Road Pro’ mode for advanced off-road fun.
NEW SIGNATURE LED LIGHTING
All-LED lights and fog lights are included on high specification models, as well as Triumph’s signature Daytime Running Light (DRL) system for maximum safety and minimal maintenance.
ENHANCED RIDER ERGONOMICS
Incorporating a new seat compound with extra foam & 3D-net technology, and revised handlebar geometry to suit a wider range of riders for a more commanding riding position and enhanced long distance comfort.
NEW FIVE-POSITION ADJUSTABLE SCREEN
For superior wind protection the mid and top specification Tigers come with an all-new five-position adjustable screen, and new aero diffusers delivering greater rider and pillion comfort.
NEW BREMBO FRONT BRAKES
High specification Brembo front brakes now come as standard on the mid and top spec Tigers, bringing premium braking capability off-road and on.
HIGH SPECIFICATION SUSPENSION AND RIDER SYSTEMS
Across the new line-up we have a host of high specification equipment including: Showa suspension on the XR models with new adjustable set-up on the top spec XRT, off-road focused WP long travel suspension on both XC models, and switchable ABS and traction control as standard.
EVEN MORE TIGER STYLE
More premium bodywork gives each new Tiger 800 a more dynamic stance that reflects the road and off-road bias of each model. Every Tiger gets the highest-ever level of finish and detailing with high quality badges, graphics, and paint finishes to enhance their contemporary style.
MORE RESPONSIVE ENGINE & SHORTER RATIO FIRST GEAR
The thrilling new generation, mass-optimised 800cc Triple engine delivers 95PS and brings with it even more responsiveness and acceleration. Add to this the new shorter ratio first gear and you get more low-speed traction and instant responsiveness right when you need it most, both off-road and on. To top it off there is a new lighter exhaust with an even better Triple soundtrack.
NEW FULL-COLOUR TFT INSTRUMENTS & ILLUMINATED SWITCHGEAR
The mid and top spec Tigers feature new angle-adjustable, full colour 5’’ TFT instruments that access a host of rider-focused technology available from the new on-board computer. With this comes new ergonomically designed switchcubes and 5-way joystick, which, on the top spec Tigers, feature premium illuminated backlit buttons.
UP TO SIX RIDING MODES, INCLUDING NEW ‘OFF-ROAD PRO’ MODE
To suit every type of environment and riding style, riding modes include: ‘Road’, ‘Rain’, ‘Off-Road’, ‘Sport’, ‘Rider programmable’ and an all-new ‘Off-Road Pro’ mode for advanced off-road fun.
ACCESSORIES
There are more than 50 Triumph genuine accessories available to help you build your perfect Tiger and add even more comfort, capability and style. Using our online configurator and dealer team support you can easily customise your adventure with the addition of even more premium quality features such as heated grips, heated low rider and pillion seats, high touring screen, Arrow exhaust silencer and engine protection bars. A wide range of Triumph standard luggage is also available including an expedition aluminium top box, waterproof inner bags, tank bag and a number of soft luggage options.
EXPEDITION PACK
To instantly add a serious level of touring capability and style, we’ve created an ‘Expedition Pack’ with all you need to start your adventure on your new Tiger 800. The Expedition pack includes black expedition panniers with mounting rail kit, black top box, moulded backrest pad, protective rubber tank pad, and frame protectors.
