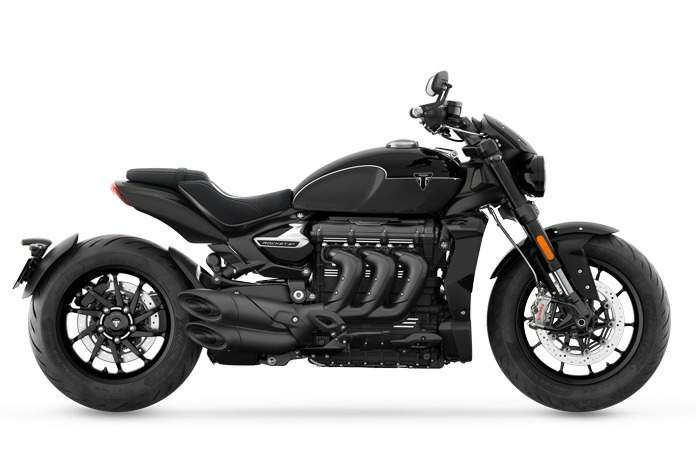

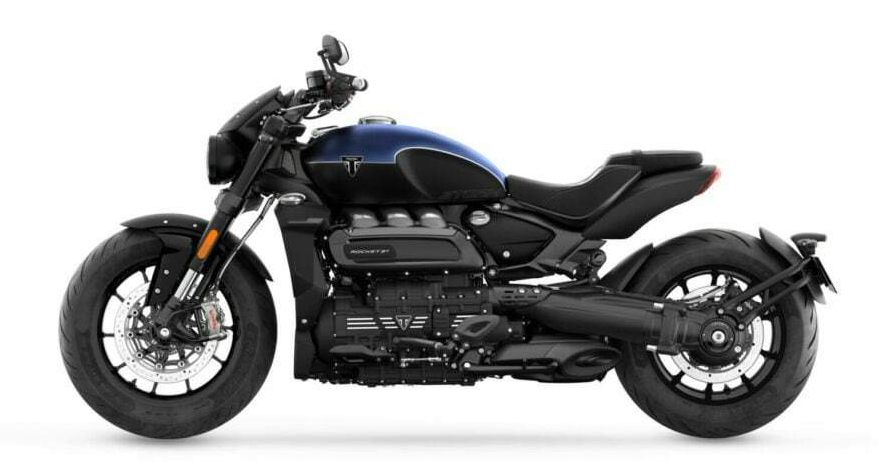

Triumph Rocket 3 Storm R
|
. |
Make Model |
Triumph Rocket 3 R |
Year |
2024 |
Engine |
Four stroke, inline 3-cylinder, DOHC |
Capacity |
2458 cc / 150 cu-in |
Bore x Stroke |
110.2 x 85.9 mm |
Cooling System |
Liquid cooled |
Compression Ratio |
10.8:1 |
Induction |
Ride-by-Wire, fuel injected |
Lubrication |
Wet sump |
Exhaust |
Stainless 3-into-1 headers with 3 exit silencer / CAT box |
Emission | EURO 5+ |
Ignition |
Digital inductive type via electronic engine management |
Starting |
Electric |
Max Power |
134 kW / 180 hp @ 7000 rpm |
Max Torque |
225 Nm / 166 ft-lb @ 4000 rpm |
Clutch |
Wet, multi-plate hydraulically operated, torque assist |
Transmission |
6 Speed |
Final Drive |
Shaft, bevel box |
Frame |
Full aluminum frame |
Swingarm |
Single-sided, cast aluminum |
Front Suspension |
Showa 47mm upside-down 1+1 cartridge front forks, compression and rebound adjustement |
Front Wheel Travel |
120 mm / 4.7 in |
Rear Suspension |
Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjustement |
Rear Wheel Travel |
107 mm / 4.2 in |
Front Brakes |
2x 320 mm discs with Brembo M4.30 Stylema 4-piston radial monobloc calipers |
Rear Brakes |
Single 300mm disc, Brembo M4.32 4-piston monobloc caliper |
ABS | Cornering ABS |
Front Wheel |
17 x 3.5 in cast aluminium |
Rear Wheel |
16 x 7.5 in cast aluminium |
Front Tyre |
150/80 R17 V |
Rear Tyre |
240/50 R16 V |
Rake |
27.9° |
Trail |
134.9 mm / 5.3 in |
Dimensions |
Length: 2365 mm / 93.1 in Width: 920 mm / 36 in (with handlebars) Height: 1125 mm / 44.3 in (with mirrors) |
Wheelbase |
1677 mm / 66 in |
Seat Height |
773 mm / 30.4 in |
Wet Weight |
317kg / 699 lbs |
Fuel Capacity |
18 Litres / 4.76 US gal |
Instruments |
TFT multi-functional instrument pack with digital speedometer, trip
computer, digital tachometer, gear position indicator, fuel gauge, service
indicator, ambient temperature, clock and rider modes
(Rain/Road/Sport/Rider-configurable) |
. |
From a Triumph press release:
Triumph Motorcycles reveals the new MY25 Rocket 3 Storm R and GT.
Explosive performance with 15 hp power increase to 180 hp and even more record-breaking torque, up by 3 ft-lb to 166 ft-lb
Superior handling with new, lighter cast aluminum wheels.
Imposing dark color schemes with blacked out details and anodized finishes.
Twenty years after the first record-breaking Rocket III burst onto the motorcycle scene as the ultimate muscle roadster, a new generation of Rocket has been revealed, delivering more performance, better handling, and a dark color scheme. It even has a new name, the Rocket 3 Storm, to match its muscular style and spectacular riding experience.
Featuring the world’s largest production motorcycle engine with a capacity of 2,458cc, the new Rocket 3 Storm R and GT gain 15 hp peak power, now delivering a massive 180 hp at 7,000rpm.
Torque has also been increased by 3 ft-lb, reaching a new peak of 166 ft-lb at a low 4,000rpm. This flat, rich torque curve with maximum torque all the way through the mid-range gives explosive acceleration and effortless response in any gear.
The Rocket’s 16-inch rear and 17-inch front wheels have been updated with a sportier ten-spoke cast aluminum design, reducing unsprung mass. This reduction has a positive impact on steering response while on the move, improving the Rocket’s already impressive agility. The strong and lightweight aluminum frame, first introduced in 2019, uses cast and forged elements for an exceptional torque-to-weight ratio.
Following the sales success of recent special edition Rockets which featured blacked-out components, the new Rocket 3 Storm models feature a dark color scheme with an impeccable level of quality detailing.
The large 4.75-gallon (18L) tank features the new Storm name, and each model has three distinctive two-tone color options. The R is available in Carnival Red with Sapphire Black, Satin Pacific Blue with Matte Sapphire Black, and Sapphire Black with Granite. The GT is available in the same colors, but the split of the tank is reversed, providing a distinctive, high impact look and consistent color choice across both models. The Rocket 3 Storm also comes with high-quality black finishes throughout.
Also new for 2025, the Rocket 3 Storm now exceeds the latest Euro 5b requirements, featuring liquid cooling, low emissions, and excellent fuel efficiency.
Paul Stroud – Chief Commercial Officer, Triumph
Motorcycles
“Known around the world as the ultimate muscle
roadster, the Rocket has already achieved global sales of more than 18,000 since
the 2.5 liter engine was introduced in 2019. By listening to feedback from our
customers, we know they love the Rocket’s muscular presence and heart-stopping
performance. We also know that riders desire even more. That’s why the new
Rocket 3 Storm R and GT have been given an impressive power and torque increase,
even greater agility, and an even darker, moodier style and presence on the
road.”
EXCEPTIONAL HANDLING
Harnessing the Rocket’s impressive performance to deliver a controlled and
compliant ride, is a Showa monoshock RSU and piggy-back reservoir, fully
adjustable for rebound and compression damping and preload. The forks are large
1.9” (47mm) Showas, adjustable for rebound and compression damping.
Exceptional stopping power is provided by top-specification radial Brembo
Stylema brake calipers with twin 12.6” (320mm) discs. These lightweight,
compact, and high performing calipers offer great airflow for pad cooling during
spirited riding. The Brembo M4.32 4 piston radial monobloc rear caliper and
11.8” (300mm) rear disc is bigger and more powerful than the front brake setup
on many bikes, helping to provide massive stopping power. The Rocket 3 Storm
retains full optimized cornering ABS functionality.
DISTINCT ERGONOMICS
Each Rocket offers a distinct feel and personality, due to key differences in
their ergonomics. The roadster rider position and handlebar placement of the
Rocket 3 R is designed to provide optimum power and control, to create a relaxed
and engaging ride. The GT has a slightly more swept back set-up with a 5”
(125mm) difference in grip position versus the R, for a more upright riding
position.
Each model also gets its own dedicated seating set-up, each with premium black
painted cast aluminum seat finishers. The Rocket 3 Storm R has a roadster rider
and passenger seat with a 30.4” (773mm) seat height, offering comfort, low-speed
confidence and maneuverability. The GT has a sculpted touring rider seat with a
more generously padded passenger seat and an adjustable passenger backrest. The
seat height for the GT is just 29.5” (750mm), further improving comfort for the
rider.
The biggest difference between the two models is the footpeg positions. The R has mid-position foot controls, with two settings that offer .6” (15mm) of vertical adjustment, to cater for every size of rider, delivering a natural and sporty riding position. The GT has feet forward foot controls giving a laid-back custom bike feel, with three horizontal position settings offering 2” (50mm) of adjustment, to provide the most comfortable position for long rides. Both R and GT models have innovative, neat, blacked out, retractable passenger footrests.
BLACKED OUT STYLE
Flawlessly engineered with unparalleled attention to detail, the Rocket 3 Storm
sets the benchmark for premium finish. From the black powder-coated intake cover
to the hydro-formed exhaust headers, the materials used throughout the Rocket 3
Storm have been carefully chosen with unmatched attention to detail, to deliver
blacked-out attitude.
On top of that, Rocket 3 Storm also comes with high-quality black anodized finishes throughout; rear frame forging, swingarm guard, forks lowers and yokes, risers, and handlebar clamps, RSU Rocker, seat finisher, footrests & hangers for rider and passenger, brake and gear pedals, levers, and side stand.
Amplifying the bikes’ aggressive stance and attitude, both Rocket 3 Storm models have twin LED headlights with the Triumph maker’s mark triangle. There are LED indicators, rear light, and number plate light, delivering a distinctive light signature.
RIDER FOCUSED TECHNOLOGY
From lean-angle sensitive ABS and traction control to switchable throttle maps
and intuitive cruise control, rider-focused technology allows riders to
confidently exploit the epic performance potential of the Rocket 3 Storm.
Ride-by-wire enhances rideability, safety, and control, while the Rocket’s high-performance gearbox is engineered with helical cut gears to transmit the huge torque to the rear wheel smoothly. The Torque Assist clutch helps riders shift up and down the six-speed box with satisfying speed and smoothness, while a Quickshifter is available as an accessory fit for both models.
Both models feature optimized cornering ABS and traction control for enhanced stability, improving both straight line and cornering, acceleration, and braking. Hill Hold prevents the bike rolling backwards and applies the rear brake until sensing the rider is starting to move off. Both come equipped with four riding modes, road, rain, sport, and rider-configurable, which adjusts the throttle map and traction control settings.
The electronic cruise control system is fitted as standard. Activated by a single press of the button, the speed can be set and adjusted up or down in 1 mph increments, as well as be resumed with just one touch.
Both models feature a high functionality full color TFT, set-up with a five-way back-lit joystick. This has a minimal stylish design with two information layout design themes, and the adjustable instrument angle set-up provides optimum visibility for every height of rider. The rider can even personalize the start-up screen message with their name.
Adding extra security, both bikes have standard fit keyless ignition and steering lock, which can be disabled. The key fob can be turned off to prolong battery life and increase security. There is a USB charging socket in a dedicated compartment under the seat, where devices can be kept safe and dry while charging.
MAKE THE ROCKET 3 STORM YOUR OWN
With over 50 Genuine Triumph Accessories to add comfort, practicality, style,
and security, riders can customize their Rocket to make it truly bespoke.
Customers can choose from interchangeable R and GT foot controls, rider and
passenger seats for tailored ergonomics, plug and play technology for greater
convenience, styling parts to customize the look, and luggage solutions for
longer rides.
Any corrections or more information on these motorcycles will be kindly appreciated. |
