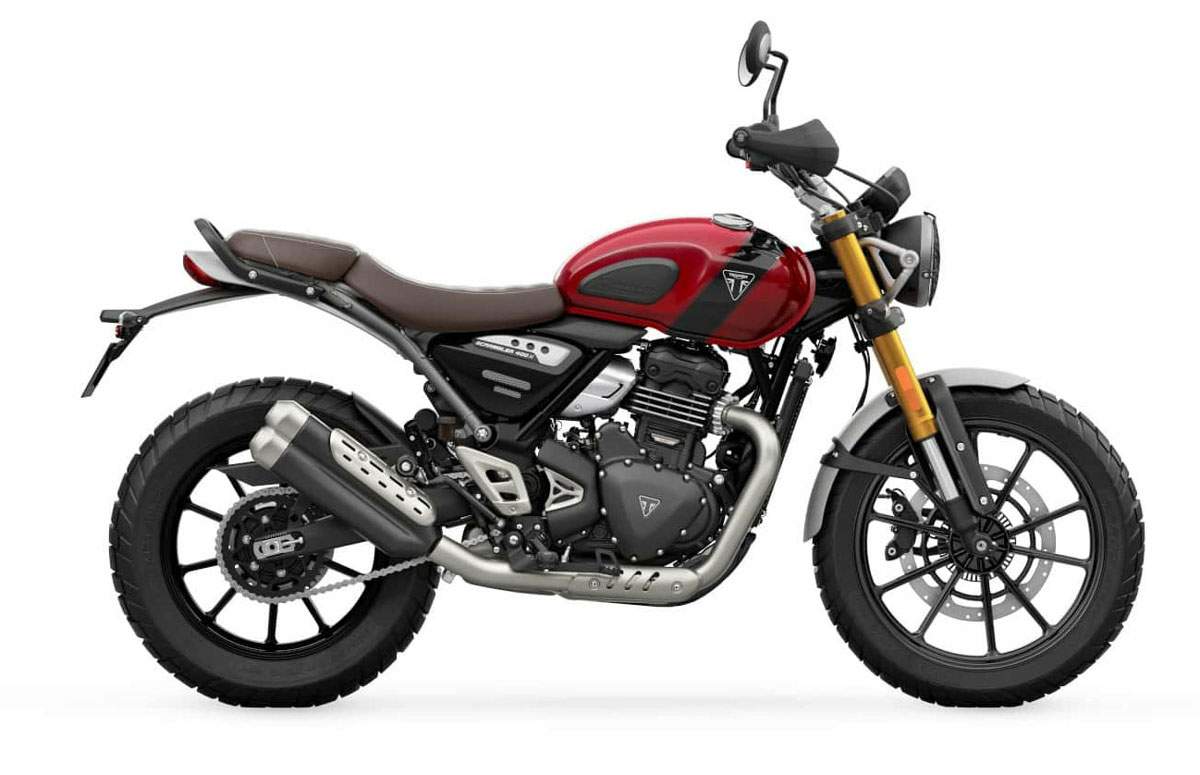

Triumph Scramber 400X

.

Make Model

Triumph Scrambler 400X

Year

2024

Engine

Four stroke, DOHC, single cylinder, 4 valves

Capacity

398 cc / 24.3 cu-in

Bore x Stroke

89.0 x 64.0mm

Cooling System

Liquid cooled

Compression Ratio

12.1:1

Induction

Bosch ride-by-wire EFI

Emission

Euro 5

Starting

Electric

Max Power

29.4 kW / 40hp @ 8000 rpm

Max Torque

38 Nm / 28 ft-lbs @ 6500 rpm

Clutch

Wet multiplate with assist and slip functions

Transmission

6-Speed

Final Drive

X-ring chain
Frame Hybrid spine/perimeter, tubular steel, bolt-on rear subframe
Swingarm Twin-sided, cast aluminium alloy

Front Suspension

43mm Showa Big Piston, non-adjustable inverted fork

Front Wheel Travel

150 mm / 5.9 in

Rear Suspension

Gas monoshock RSU with external reservoir and pre-load adjustment.

Rear Wheel Travel

150 mm / 5.9 in

Front Brakes

Single 320 mm fixed disc with radially mounted 4-piston caliper

Rear Brakes

Single 230 mm disc with floating caliper
ABS Bosch dual channel

Wheels Front

19 x 2.5 in with 10-spoke cast aluminium alloy rims

Wheels Rear

17 x 3.5 in with 10-spoke cast aluminium alloy rims

Front Tyre

100/970 x R19
Rear Tyre 1450/80 x R17

Rake

23.2°

Trail

108 mm / 4.25 in

Dimensions

Length: 2117 mm / 83.3 in

Width: 825 mm / 32.5 in

Height: 1190 mm / 46.8 in

Wheelbase

1418 mm / 55.8 in

Seat Height

835 mm / 32.9 in

Wet Weight

179 kg / 394.6 lbs
Fuel Capacity  13 Litres / 3.43 US gal
Instruments Analogue speedometer with integrated multi-function LCD screen
.

From a press release byTriumph:

Conceived and designed in Hinckley, UK, these two new additions to the modern classics line-up have been developed with the same exacting attention to detail as Triumph’s most celebrated models. They are instantly recognizable thanks to their timeless Triumph silhouettes, signature sculpted fuel tanks and classic engine profiles and have been designed to deliver all of the quality, feel, and presence of their larger capacity stablemates. Traditional touches, like the distinctive finned cylinder head and traditional exhaust header clamps combine with contemporary details like the upswept silencer, bold graphics and sensitively-incorporated technology, such as concealed liquid-cooling and a flowing exhaust run with hidden primary silencer. All combining to deliver that unmistakeable Triumph modern custom style. The high-quality finish and elegant detailing continues with the trademark black powder-coated engine casings, tough gold anodised forks, high-quality paint, and logo detailing which ensure the finish on these new models is premium throughout.

The Speed 400’s two-tone paint schemes, each feature a prominent Triumph tank graphic, reflect its dynamic style, with Carnival Red, Caspian Blue and Phantom Black colors available.

Accentuating the Scrambler 400 X’s all-road attitude are lots of purposeful and practical features, including protection for the headlight, radiator, and sump, as well as handguards, a handlebar brace with pad, and a longer front mudguard.

The Scrambler 400 X is available in three stylish and contemporary color schemes, each featuring Triumph’s distinctive ‘Scrambler’ tank stripe and triangle badge, with Matte Khaki Green and Fusion White, Carnival Red and Phantom Black, plus Phantom Black and Silver Ice options.

Timeless Triumph Design DNA with Contemporary Poise:

- Timeless Triumph classic roadster and Scrambler silhouettes
- Signature sculpted tank with knee indents
- Classic Triumph engine profile with triangle badge
- Distinctive finned cylinder head and exhaust header clamps
- Contemporary upswept silencer
- Premium materials and finishes
- Each available in a choice of three distinctive model-specific color schemes

The all-new TR-Series Engine

Named to celebrate the historic Triumph ‘Trophy’ bloodline, whose roots can be traced back to the racing singles of the early twentieth century, and International Six Day Trials offroad competition. This all-new fuel-injected and liquid-cooled 398cc single-cylinder engine combines Triumph’s trademark modern classic style with state-of-the-art engineering to deliver class-beating performance with a responsive, fun, and characterful power delivery along with an evocative, rich, and distinctive exhaust note.

Technical highlights include a four-valve, DOHC cylinder head and a crankshaft that has been perfectly weighted and balanced to optimize inertia for low-speed rideability. A finger-follower valvetrain with a low reciprocating mass and DLC coatings that reduce friction also contribute to the capacity-defying performance of this free-revving yet tractable engine.

The six-speed gearbox delivers light, precise gear selection with ratios perfectly spread to make the most of this characterful and torque-rich engine.

Key features of this all-new engine include:

Class-leading 39.5 HP peak power and 27.7 LB-FT of peak torque
Four valve, Liquid-cooled, single-cylinder
Concealed liquid-cooling and machined cooling fins
Trademark black powder-coated engine casings
Characterful, compelling, and responsive power delivery
Evocative, rich, and distinctive exhaust note
Six-speed gearbox
Exceeds Euro 5 emissions

Triumph's easy, agile, dynamic and confidence-inspiring ride

With ergonomics designed for optimum comfort and control, the Speed 400 and Scrambler 400 X benefit from a slim standover which combines with an accessible seat height of 31 inches (790mm) and 32.9 inches (835mm) respectively and a low weight of 375lb (170kg) / 395lb (179kg) to offer assured low-speed handling and the ability to get feet to the ground.

Both models benefit from their own model-specific chassis, with a new frame, bolt-on rear subframe and cast-aluminum swingarm paired with suspension set-ups tailored to each use case, both delivering Triumph’s famously easy, agile, and dynamic handling.

The Speed 400 features large 43mm big-piston upside-down front forks, mono-shock Rear Suspension Unit with external reservoir, lightweight 17-inch wheels and roadster-specific geometry and wheelbase. Giving an engaging and intuitive ride along with a comfortable, neutral riding position that inspires confidence for riders of all sizes and skill levels. Powerful four-piston radial front brakes with a 300mm front disc and braided lines give a responsive brake feel for improved rider confidence.

The Scrambler 400 X features a longer wheelbase, longer travel suspension, larger 19-inch front wheel and wide handlebars for greater stability and control when riding on loose surfaces, as well as providing a more upright and commanding Scrambler riding position. A larger cast steel brake pedal and high-grip foot pegs that are positioned lower and wider also make for a more natural standing riding position when riding off-road, while a larger 320mm front brake disc and optimized pad compound deliver reassuringly progressive braking performance in all conditions.


Fun, Confidence-inspiring and Intuitive Feel
All-new frame with bolt-on rear subframe and cast aluminum swingarm
Model-specific Speed 400 and Scrambler 400 X set-up and geometry
Slender standover width creates a more accessible seat height
Comfortable and engaging riding position for the Speed 400 with a more upright and commanding riding position for the Scrambler 400 X
Big-piston 43mm diameter upside-down front forks
Monoshock rear suspension unit with external reservoir
Optimized for solo or passenger riding with adjustable rear suspension preload
Four-piston radial caliper with braided brake lines
Longer wheelbase and more upright ergonomics for Scrambler 400 X
Approachable motorcycle specifications approved for new rider training courses, including official Motorcycle Safety Foundation training

Modern rider-focused technology
Adding rider convenience, performance, and safety, the Speed 400 and Scrambler 400 X share some of the latest rider-focused technology, tailored to suit each model.

Ride-by-wire throttle
Bosch engine management with ride-by-wire throttle delivers a linear and intuitive throttle response with predictable power delivery for enhanced rideability, safety, and control.

Traction Control and ABS
The traction control system on both models is switchable with a simple on or off selection, so the rider can quickly and easily deactivate the intervention.

Bosch dual-channel ABS delivers assured braking in all conditions for added safety and peace of mind and on the Scrambler 400 X can also be deactivated for enhanced control when riding off-road.

Stylish new dual format instruments

The clean and contemporary dual format instruments feature a large analogue speedometer and integrated LCD screen which includes a digital tachometer, a fuel range remaining, and a prominent gear indicator, clearly visible in all lighting conditions.

All this functionality is accessed via an intuitive easy to use handlebar-mounted scroll button, and the display is even pre-enabled to show the status of accessory fitted heated grips, if fitted. A conveniently located USB-C charging port allows on-the-move charging of handlebar mounted devices, such as smartphones and navigation systems.

Torque-assist clutch
This ingenious system reduces clutch lever effort to reduce fatigue during stop/start riding, as well as improving rider confidence and peace of mind by preventing rear wheel locking during downshifts.

All-LED lighting
Designed for performance and presence, the powerful headlight features a distinctive always-on glow, while the taillight also includes a modern light signature together with molded light guides and Triumph branding.

Factory-fitted Security

Both the Speed 400 and the Scrambler 400 X come equipped with a steering lock and an anti-theft immobilizer as standard. The transponder chip integrated into the ignition key ensures only the owner can start the engine.

Specification highlights include:
A high level of rider-focused technology to enhance performance and safety
Ride-by-wire throttle for enhance rideability, safety, and control
Switchable Traction Control on both Speed 400 and Scrambler 400 X
Dual-channel ABS (switchable on Scrambler 400 X for off-road use)
Torque-assist clutch
Stylish new dual format instruments
All-LED lighting
Immobilizer


Build to make your own
More than 25 genuine accessories are available for the Speed 400 and Scrambler 400 X. From styling and comfort to luggage and security, both bikes can be accessorized to suit a broad range of riders’ needs.

Owners can configure their new motorcycle in the easy-to-use online configurator, or they can purchase accessories from any authorized Triumph dealer — All Triumph accessories are designed and developed hand-in-hand with the motorcycles to ensure perfect fit and function and are covered by the same two year unlimited mileage warranty.


Unbeatable value
With class-leading performance, unrivalled quality, and low running costs, these exciting new modern classics represent incredible value.

Both the Speed 400 and Scrambler 400 X will be competitively priced versus the key competitors in each market, ensuring an incredibly attractive buyer proposition both in terms of overall value, but also initial purchase price.

Both models will launch in India starting in July of 2023 and will be on sale in all other markets in the start of 2024, when prices for these markets will be announced.

Leading performance and quality
Class-leading 10,000 miles service interval
Two-year unlimited mileage Warranty
Two-year unlimited mileage Roadside Assistance
On sale from Q1 2024
Competitive pricing relative to category to be announced upon availability
