Triumph Bonneville Bobber Gold Line Edition

.

Make Model

Triumph Bonneville Bobber Gold Line Edition

Year

2022

Engine

Four stoke, parallel twin, 270° crank angle, SOHC, 4 valve per cylinder

Capacity

1198 cc / 73.1 cu in
Bore x Stroke 97.6 x 80 mm
Compression Ratio 10.0:1
Cooling System Liquid cooled
Lubrication Wet sump
Exhaust Brushed stainless steel 2 into 2 twin-skin exhaust system with brushed stainless silencers
Emission EURO5

Induction

Multipoint sequential electronic fuel injection

Ignition

Digital

Starting

Electric

Max Power

57.5 kW / 76.9 hp @ 6100 rpm

Max Torque

106 Nm / 78.2 lb-ft @ 4000 rpm
Clutch Wet, multi-plate, torque assist clutch

Transmission

6-Speed
Final Drive Chain
Frame Tubular steel, twin cradle frame
Swingarm Twin sided fabrication

Front Suspension

47 mm Showa cartridge forks

Front Wheel Travel

90 mm / 3.5 in

Rear Suspension

Mono-shock RSU with linkage

Rear Wheel Travel

73 mm / 2.8 in

Front Brakes

2x 310mm disc, Brembo 2-piston sliding axial calipers

Rear Brakes

Single 255mm disc, Nissin single piston sliding axial caliper
ABS Standard
Front Wheels Wire 32-spoke, 16 x 2.5 in
Rear Wheels Wire 32-spoke, 16 x 3.5 in

Front Tyre

130/90 B16

Rear Tyre

150/80 R16
Rake 25.4°
Trail 92.0 mm / 3.6 in
Dimensions Length: 2220 mm / 87.4 in
Width:    800 mm / 31.5 in
Height: 1024 - 1055 mm  / 40.3 - 41.5 in
Wheelbase 1500 mm / 59.1 in
Seat Height 690 - 700 mm / 27.2 – 27.6 in

Wet Weight

251 kg / 553 lbs

Fuel Capacity

12 Litres / 3.2 US gal
.

Eight unique custom-inspired designs, available for one year only.
Showcasing the hand-painted gold lining skills of Triumph’s expert paint shop and reflecting customer demand for brighter and more custom-inspired schemes, the new Bonneville Gold Line Editions bring a unique style and premium hand-painted detail to eight motorcycles in Triumph’s renowned Modern Classic range.
All available for one year only, the Gold Line Editions feature all of the recent updates of the new Bonneville generation, including enhanced capability and performance, and more beautiful style.

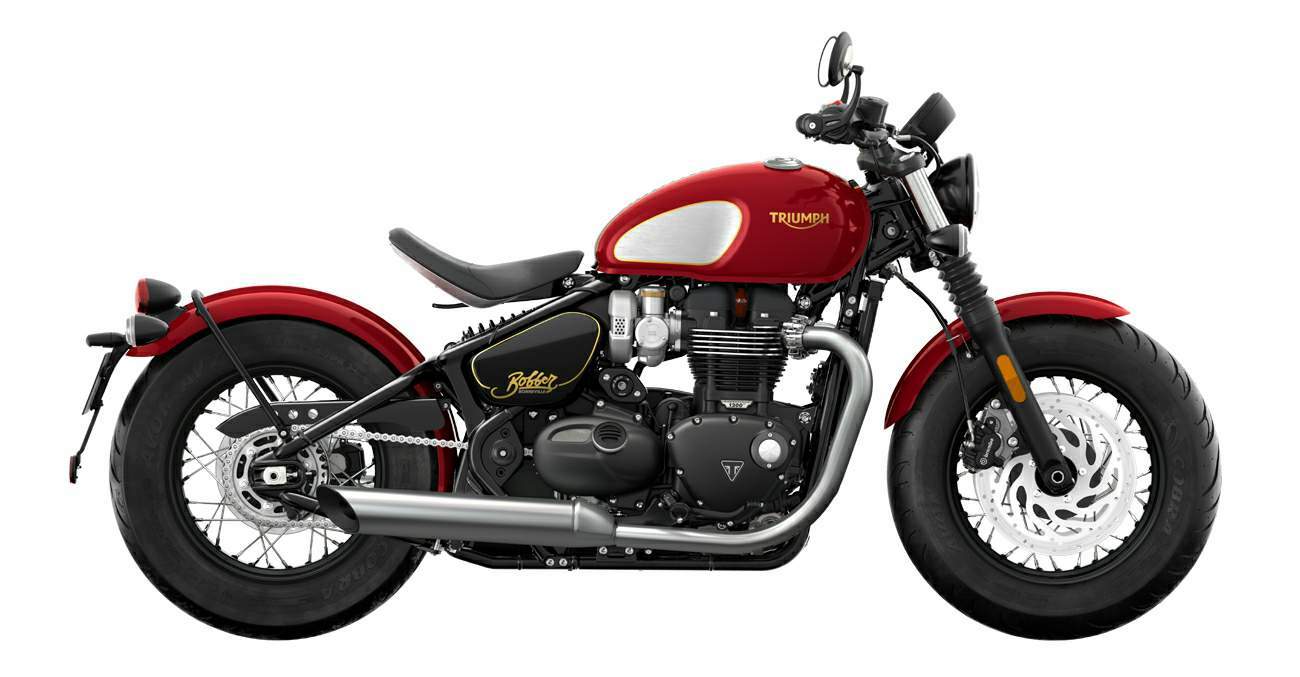

Bonneville Bobber Gold Line Edition

- Carnival Red fuel tank and mudguards, with gold Triumph tank logos and elegant ‘gold line’ logo, Sapphire Black twin stripe design and brushed foil knee pads, edged with hand-painted gold lining
- Sapphire Black side panels with unique new gold and silver Bonneville Bobber logo and hand-painted gold lining
- Accessory fit matching Carnival Red short front mudguard available

Pure. Brutal. Beauty.

As stunning to look at as it is thrilling to ride, the latest generation of Triumph’s stripped-back, elegant custom classic has all of the previous generation Bobber’s peerless authenticity and engineering innovation and adds all of the Bobber Black’s category-defining capability, from 2021 Bobber that delivers the best of both worlds. Significant updates include enhanced engine performance for an even more responsive and thrilling ride, higher specification technology and equipment, and an all-new blacked-out, chunkier style. With a range of 77 genuine Triumph accessories on offer, including an alternative high bar set-up, luggage and choice of seating options, and its class leading adjustable seating and foot peg position, the Bobber has been designed for riders to adapt to suit them and their style.

Enhanced Performance

The new Bobber is powered by Triumph’s latest generation Bonneville 1200cc, high-torque British twin engine. Thanks to a reduction in inertia, this updated engine is more responsive, and its torque curve is fuller and smoother.

The charismatic 270 degree firing interval gives a beautifully smooth and linear power delivery, with the new engine delivering a notable lift at 5,500 rpm. Peak torque is an exceptional 106Nm at a low 4,000 rpm, and peak power is 78PS at 6,100 rpm.

The Bobber also exceeds EURO 5 requirements, giving lower emissions than the previous generation, and excellent fuel economy. Riding distance is also enhanced by the new, larger, 12 litre fuel tank, which gives you up to 33% more range.

Triumph’s sophisticated ride-by-wire system ensures precise throttle control and enables the two enhanced riding modes - ‘Road’ and ‘Rain’. These adjust both the throttle response and traction control settings to add to confidence and safety in all conditions.

The unique twin airbox intakes are located under the seat, while the straight-line exhaust pipe run cleverly conceals the catalyst box. Slash-cut, sawn-off peashooter silencers complete the picture and deliver a rich and raw Bobber sound.

A very high service interval of 10,000 miles or 16,000 kilometres helps to keep the ongoing cost of ownership low.

Enhanced Capability

From 2021 the Triumph Bobber now features a 16” fat front wheel and new, chunkier 47mm front forks, giving a really muscular and imposing front end presence.

The new front wheel is complimented by the Bobber’s wide rear wheel setup. Both have a classic wire-spoked design, with black rims. The Avon Cobra tyres have been specifically developed for the Bobber, with a lightweight construction for excellent high-speed manoeuvrability and class-leading stability.

The Bobber is equipped with premium Brembo 2-piston calipers and twin discs, for excellent and controlled stopping power, while on the rear is a single disc set up. Triumph’s sophisticated ABS and switchable traction control are standard for added safety and security.

Central to the Bobber’s authentic hard-tail look is the floating aluminium seat, with monoshock suspension and distinctive “swing-cage” swinging arm, which ensure great wheel control and added comfort. The seat is ergonomically optimised and sculpted for comfort, with a beautifully stitched deep foam pad. The seat height is only 690mm, making it an extremely accessible motorcycle to ride.

The riding position is adjustable – and the seat can be re-positioned ‘up and forwards’, or ‘down and backwards’ to optimise comfort and control for all sizes of rider. The instruments are adjustable too, so they can be tailored to match.

New blacked-out style and detailing

The Bobber has all of the signature hallmarks and beautiful details that are widely appreciated worldwide – minimal steel fenders with a centre ridge and return edge, wide flat bars with broad, adjustable levers, sculpted top yoke, rubber gaiters, classic rear ‘drum brake’ inspired hub, side-mounted ignition barrel, black painted bar end mirrors, LED bullet indicators and a new, signature full LED headlight.

For added visibility and where market legislation permits, from 2021 the headlight features Triumph’s signature LED Daytime Running Light.

And adding to the minimalist style from 2021 are new black engine covers, cam cover and sprocket cover, giving the Bobber a new, meaner, moodier edge.

From 2021 the instruments feature a new bezel, including a metallic embellisher with subtle Bonneville branding. There’s a new dial face, with translucent silver markings, and more integrated warning lights. The multi-function display is controlled by an easily accessible handlebar mounted scroll button.
