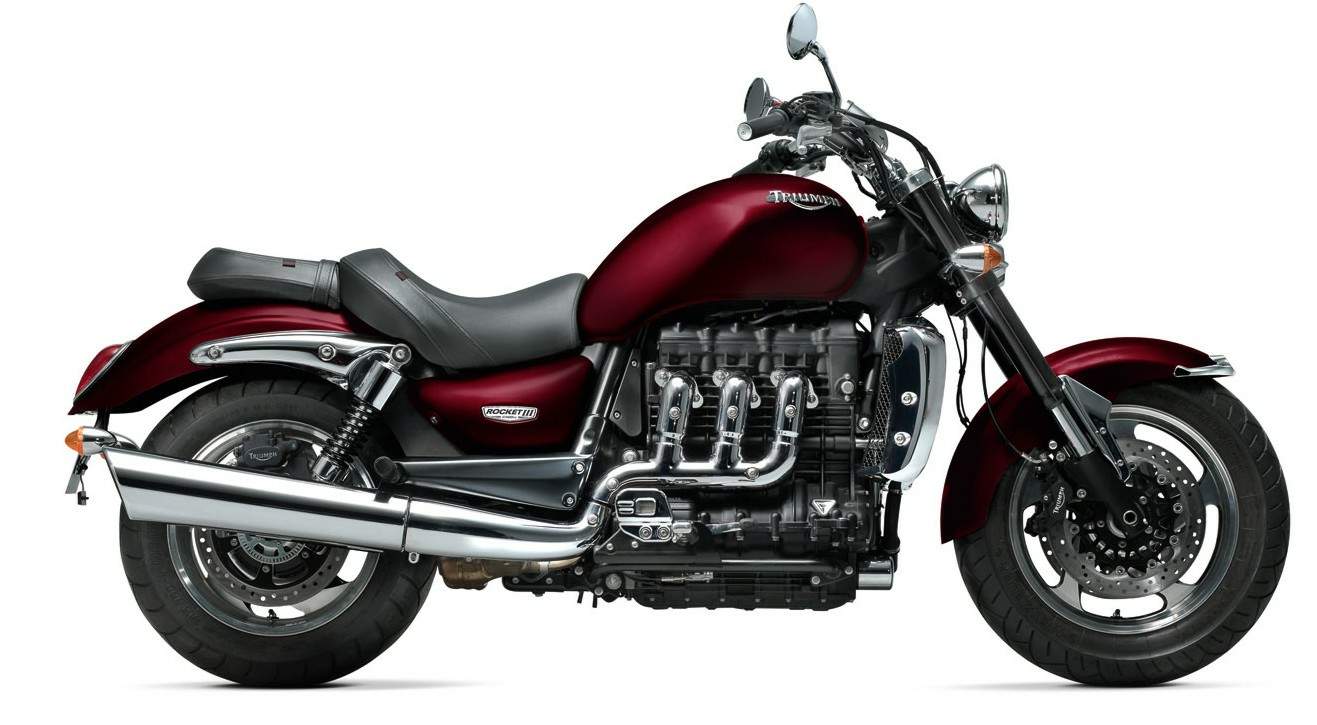

Triumph Rocket III Roadster
|
. |
Make Model |
Triumph Rocket III Roadster |
Year |
2012 |
Engine |
Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder. |
Capacity |
2294 cc / 140 cu in |
Bore x Stroke | 101.6 x 94.3 mm |
Cooling System | Liquid cooled |
Compression Ratio | 8.7:1 |
Induction |
Multipoint sequential electronic fuel injection |
Ignition |
Digital - inductive type,via electronic engine management |
Starting | Electric |
Max Power | 109 kW 146 hp @ 5750rpm |
Max Torque |
221Nm / 22.5 kgf-m / 163 ft.lbs @ 2750rpm |
Clutch | Wet, multi-plate |
Transmission |
5 Speed, constant mesh |
Final Drive | Shaft |
Gear Ratios | 1st: 41/14 / 2nd: 37/19 / 3rd: 33/23 / 4th: 29/25 / 5th: 27/28 |
Frame | Tubular steel, twin spine |
Front Suspension |
Kayaba 43 mm upside down forks |
Front Wheel Travel | 120 mm / 4.7 in |
Rear Suspension |
Kayaba black spring twin shocks with 5 position adjustable preload |
Rear Wheel Travel | 105 mm / 4.1 in |
Front Brakes |
2 x 320 mm Discs, 4 piston calipers |
Rear Brakes |
Single 316 mm disc, 2 piston caliper |
Front Wheel | Alloy 5-spoke, 17 x 3.5in |
Rear Wheel | Alloy 5-spoke, 16 x 7.5in |
Front Tyre |
150/80 V17 |
Rear Tyre |
250/50 V16 |
Rake | 32° |
Trail | 148 mm / 5.8 in |
Dimensions |
Length 2500 mm / 98.3 in Width 970 mm / 38.2 in (Handlebars) Height 1165 mm / 45.8 in |
Wheelbase | 1695 mm / 66.7 in |
Seat Height | 750 mm / 29.5 in |
Dry Weight |
320 kg / 704 lbs |
Wet Weight | 367 kg / 807 lbs |
Fuel Capacity |
24 Litres / 6.3 US gal / 5.3 Imp gal |
. |
When Triumph introduced the
original, groundbreaking, Triumph Rocket III as its flagship model in 2004, it
was always destined to be an instant cult classic. Now, five years later, here
comes an even meaner version of the biggest bad boy motorcycle that is set to
write new chapters in the Rocket III legacy: the Rocket III Roadster.
As the name suggests, the Rocket III Roadster moves away from
the 2004 original’s cruiser orientated styling. The model takes
more of a streetfighter influenced stance with its mid-mounted
pegs and blacked out components. Of course, it retains the very
essence of what made the original Rocket III great: commanding
presence, surprisingly sharp handling and a forceful 2,294cc
three-cylinder engine that makes even more power and torque than
its predecessor.
The result is a motorcycle that continues to deliver a unique
riding sensation that every red-blooded rider should experience
in their two-wheeled career.
More Power; More Torque; Better Brakes
The key developments on the Rocket III Roadster include an
upgraded engine offering 15% more torque than the original
Rocket III, and a 6% increase in power. Plus, the 2010 model
adopts the precision stopping power of anti-lock brakes. This is
the first time such a safety device has featured on a Rocket
III.
New rider and passenger seats have been designed for increased
comfort and roadster-style ergonomics. Revised rear suspension
offers greater control and comfort, while the look has been
changed with two different black color schemes, less chrome and
new exhaust pipes for a more balanced look. Customers can order
their Roadster in one of two black options: the classic metallic
Phantom Black or a mean Matte Black for a stealthier approach.
Quality Matters
Triumph places a great deal of pride in the quality of its
products, and one of the primary goals of the Rocket III
Roadster development team has been to implement even higher
levels of detailing on the new model.
The Rocket III Roadster is assembled at Triumph’s
state-of-the-art factory in Hinckley, United Kingdom, and
benefits from the latest production methods and a number of
quality updates to make it the most refined Rocket III yet.
Modifications to the gear design and selection mechanism makes
for a lighter and more precise action, while the clutch and
shaft drive internals have been upgraded to cope with the
increased power and torque output.
Newly-designed cam drive components have been introduced for the
Rocket III Roadster to reduce engine noise and increase the
overall refinement of the 2.3 liter unit. The engine management
system features a new, CAN-enabled ECU running Triumph’s latest
software. As a result, the Rocket III Roadster has improved
drivability with better control and a smoother pick-up than the
outgoing Rocket III.
Engine
Triumph’s engineers spread their magic over the venerable 2,294cc three-cylinder
engine, reworking the exhaust system to increase the already massive torque
figures by 14%, to 163ft.lbs at 3,250rpm. Power is also up, by 6bhp, to 146bhp
at 5,750rpm.
Those torque figures put the Rocket III Roadster in a class of its own, making
significantly more than any other volume production motorcycle on the market.
Twist the throttle in any gear and an irresistible wave of torque thrusts the
Triumph forward in a manner befitting the Rocket name.
With its stomping torque and crisp fuel injection, the Rocket III Roadster
responds quickly, cleanly and strongly at any speed and in all gears. The
12-valve unit features a bore and stroke of 101.6 x 94.3 mm, with twin butterfly
valves on the throttle bodies and sensors for throttle position, engine speed,
engine position, engine temperature, air temperature, air pressure, gear
selected and road speed, which combine with the new ECU to determine the correct
fueling and ignition to tailor the torque curve for each gear ratio.
The engine itself is solidly mounted in the frame and used as a stressed member.
This gives the stiffest connection between the headstock and swingarm pivot,
while the fully balanced three-cylinder layout ensures that vibration is
minimal. The forged 39lb crankshaft runs in four bearings with the individual
crank pins set at 120°, firing dual sparkplugs per cylinder order from front to
rear. The balance, input and rear drive shaft contra-rotate against the
crankshaft, which makes for minimal torque reaction. However, the mass of the
big engine spinning up can still be felt at standstill – a measurable part of
the Rocket III’s appeal. The crank itself is also placed extremely low in what
is already a low-slung engine, further contributing to the bike’s overall low
center of gravity.
The main airbox and filter are situated under the rider’s seat. Fresh air is
drawn in through a ducting system, molded into the seat base, on through to the
main airbox, then on to a second plenum chamber, which then feeds the throttle
bodies.
The Rocket III has met Euro 3 emission standards since its launch in 2004, and
the new Roadster features two catalytic converters in the new style twin pipes.
Chassis
The Rocket family’s sheer presence has always been a fundamental part of its
appeal, but at the heart of the bike is its usability.
With its new ergonomics, the new Rocket III Roadster feels vastly different to
ride than its predecessor, even though the tubular steel twin-spine frame itself
has been carried over from the Rocket III. The seat is new, .4 inches higher,
and more comfortable than that of the previous Rocket III. The new instruments
are comprehensive, and come with an integrated clock, fuel gauge, and gear
indicator in addition to the speedometer and tachometer.
As part of the model’s ongoing quality improvements, the revised rear suspension
is 20% more softly sprung than that of the original Rocket III, delivering
greater control and comfort than before. At the front, the 43mm upside down
forks are carried over from the Rocket III, but now have a black finish to
complement the Roadster’s more aggressive stance.
With twin 320mm floating discs grabbed by four-piston calipers, the Rocket III
Roadster has more than enough stopping power. Brakes have been improved thanks
to the adoption of Triumph’s highly acclaimed anti-lock braking system (ABS).
The ABS brakes deliver over 100 calculations each second to ensure that riders
can stop safely in extreme circumstances without locking the wheels.
Wide section, five-spoke, alloy wheels, 17 x 3.5” at the front and 16 x 7.5” at
the rear, are shod with Metzeler ME880 Marathon tires as standard. These
high-tech tires employ a soft compound to deliver excellent levels of grip, with
the customized exterior offering outstanding stability and wear characteristics.
Cosmetically, the Rocket III Roadster has been given an aggressive blacked-out
appearance. Many components, most notably the radiator grill, front forks, and
rear suspension units, have a black finish. The Roadster body also sports black
color options: solid Matte Black or metallic Phantom Black.
Cult of the Rocket
Over 18,000 Rocket III’s have been built since its inception in the summer of
2004, quite an achievement for what is one of the most niche motorcycles on the
market.
At launch the bike was eagerly anticipated,
with some customers waiting up to 18 months to become ‘Rocketeers’. Customers
came not only from the traditional cruiser brands, but also from other unlikely
motorcycle segments. A high number of ‘early adopters’ switched their
allegiances from high-powered, four-cylinder, Japanese sport bikes to experience
the unique ride that only a Rocket provides.
Rocket III ownership brings with it a high degree of individuality. Very few
owners keep their Rockets exactly as they leave the factory, and to cater for
this Triumph offers a comprehensive range of official accessories for the Rocket
III range. While this is plenty for some owners, for many ‘Rocketeers’ too much
is never enough. At Rocket III gatherings around the world, intricate custom
paint jobs are de rigueur, specially commissioned components are common, and
power upgrades are extremely popular. The aftermarket has embraced the Rocket
III, with a number of customers even going as far as to fit forced induction
systems to boost power outputs of the tough 2.3 liter motor to in excess of
250bhp. Rocket III owners are rarely retiring wallflowers!
Official Accessories for Rocket III Roadster
To cater for the Rocket III owner’s desire to personalize their bikes, Triumph
has developed a range of over 50 accessories for the Rocket III Roadster. This
extensive catalog allows the customer to impart their own personality onto the
motorcycle and make it more suitable for their specific needs.
These include a variety of screens, from sporty fly screens to top-quality,
Quantum-coated Roadster screens with 20 times the impact resistance of acrylic
ones. Official sissy bars, touring seats, and leather luggage items are
available for riders who wish to take their Rocket III Roadsters on long
journeys. Additionally, a number of cosmetic items such as accessory mirrors,
embellishers and footpegs help create that individual look.
Performance can be enhanced through the
fitment of accessory exhaust pipes (not approved for road use), which boost
performance and increase the auditory experience for riders looking to be heard
as well as seen.
The Rocket III Roadster sits alongside the Rocket III Touring as part of the
rationalized 2010 Rocket III range. With serious ‘bad-boy’ attitude, and even
more performance from the mighty 2.3 liter motor, the Rocket III Roadster truly
is the ultimate bike for those who believe that bigger is most definitely best.
Rocket Facts:
The nucleus of the Rocket III project can be traced back to 1999, when Triumph
looked into the development of a 1500-1600cc three cylinder cruiser.
Triumph ran numerous styling clinics and focus groups when developing the
original Rocket III. The universal feedback was ‘bigger is better’, and the
capacity was quickly increased to two-Litresand eventually 2.3 Litresbefore the
bike even reached production.
The Rocket III engine was scheduled to be a two-liter unit, with an optional big
bore kit to take capacity up to 2.3 Litres. The decision to make 2.3 Litresthe
standard capacity was taken following market research among dealers and
potential customers.
Triumph took over 1,500 pre-orders for the original Rocket III, quite an
achievement for a company that was selling just over 20,000 motorcycles a year
in 2003.
A total of 18,000 Rocket III motorcycles have been sold since its introduction
in the summer of 2004.
Any corrections or more information on these motorcycles will be kindly appreciated. |
