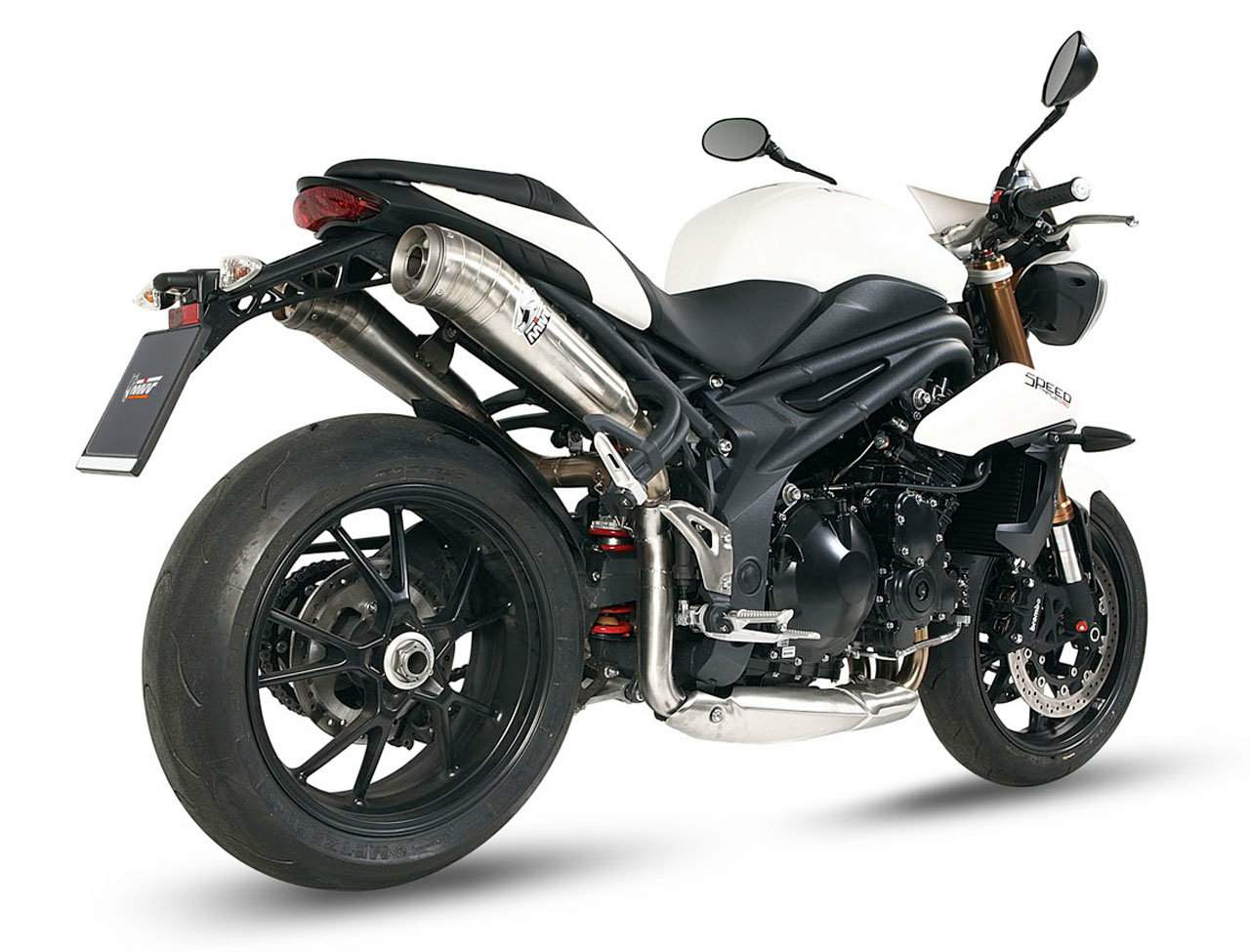

Triumph Speed Triple

.

Make Model

Triumph Speed Triple

Year

2011

Engine

Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder

Capacity

1050 cc / 64.07 cu-in

Bore x Stroke 79 x 71.4 mm
Cooling System Liquid-cooled
Compression Ratio 12.0:1
Lubrication Wet sump
Engine Oil 10W/40 Synthetic
Exhaust Stainless Steel 3 into 1 into 2, twin high level stainless steel silencers

Induction

Multipoint sequential electronic fuel injection

Ignition

Digital–inductive type via electronic engine management system
Spark Plug NGK, CR9EK
Starting Electric

Max Power

95 kW / 128 hp @ 9250 rpm

Max Torque

111 Nm / 11.3 kgf-m / 82 ft.lbs @ 7500rpm
Clutch Wet, multi-plate

Transmission

6 Speed
Final Drive X ring chain
Frame Aluminium beam twin-spar

Front Suspension

Showa 43 mm upside down forks
Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Showa monoshock

Rear Wheel Travel 130 mm / 5.1 in

Front Brakes

2 x 320 mm Discs, 4 piston calipers, Brembo

Rear Brakes

Single 255 mm disc, 2 piston caliper, Nissen
Wheel Front Forged aluminium alloy 5 spoke, 17 x 3.5in
Wheel Rear Forged aluminium alloy 5 spoke, 17 x 6.0in

Front Tyre

120/70 ZR 17

Rear Tyre

190/55 ZR 17
Rake 22.8°
Trail 90.9 mm / 3.6 in
Dimensions Length 2100mm / 82.6 in
Width (handlebars) 795mm / 31.3 in
Height without mirrors 1110mm / 43.7 in
Wheelbase 1435mm / 56.5in
Seat Height 828 mm / 32.6in

Wet Weight

214 kg / 472lbs
Instruments LCD multi-functional instrument pack with digital speedometer, fuel gauge, trip computer, analogue tachometer, lap timer, programmable gear change lights, service interval announcement display, TPMS ready

Fuel Capacity

17.5 L / 4.6 US gal / 3.8 Imp gal

Consumption Average

5.2 L/100 km / 19.1 km/l / 44.9 US mpg / 54 Imp mpg

Standing ¼ Mile

11.6 sec

Top Speed

226.8 km/h / 140.9 mph

Review

MCN

Triumph unveiled the updated Speed Triple naked, a two-wheeled mean machinery that promises to be lighter and more powerful than its predecessor. The bike has been made about 3 kg (6.6 lbs) lighter with a claimed wet weight of 214 kg (471 lbs).

Showing a completely revised chassis featuring a twin-tube over engine design, the 2011 Speed Triple is powered by a 1050cc three-cylinder engine has been upgraded to a claimed 111 Nm of torque at 7500rpm. However, maximum horsepower remains the same as the 2010 model’s 128 hp at 9250 rpm.

Also, the twin headlights have been restyled for a more angular appearance instead of the previous model’s round lights. The new lighting units also hold the tachometer and speedo instrument console, that are now delivering more instrumentation options including a lap timer and programmable shift light.

Furthermore, the 2011 Speed Triple also gets revised Showa suspension with an adjustable 43mm upside down Showa fork up front and an adjustable monoshock at the rear. Stopping power is supplied by Brembo brakes at the front and Nissin on the rear.

The British motorcycle manufacturer has also planned a range of extra accessories like a wind cowl and belly pan for its new naked machine. Triumph also extends its collaboration with Arrow for optional pipes to replace the standard dual undertail stockers.

The 2011 Triumph Speed Triple will be available in Phantom Black, Crystal White and Diablo Red and, for the first time ever, with ABS. The new naked from Triumph will compete against the 2011 Kawasaki Z750R, Suzuki GSR750, Aprilia Shiver 750 and the Yamaha FZ8.

Engine
Liquid cooled 12-valve DOHC in-line three-cylinder 1,050cc engine. Max torque. Max pulling power. 1050cc triple delivers a punch unlike any other. More torque and greater refinement than ever.

Frame
Design and function. All-new twin-tube over engine design is carefully sculpted to accentuate the styling while delivering class leading agility and stability in one package.

Styling
Twin headlamps up front are a new interpretation of the classic ‘bug-eye’ look while classic Speed Triple cues remain throughout, including single-sided swingarm, twin silencers and that stubby, aggressive stance.

Security and Safety
Coded key immobiliser comes as standard. Sophisticated ABS and tyre pressure monitors are options for first time on a Speed Triple.

MCN Review

2005 was the last time Triumph updated the Speed Triple by giving it the new 1050cc engine. Five years on and Triumph saw fit to update, overhaul and completely transform its biggest selling bike – 65,000 models sold since 1994. For 2011 the Speed Triple has an all-new chassis package, frame and swingarm included, to turn MCN’s favourite big-bore naked bike into a thoroughly modern big-bore naked bike. Changing the round ‘bug-eyed’ glass and chrome twin headlights for modern plastic items could have gone so badly wrong for Triumph. After all, changing something so iconic can be likened to downgrading the M1 to 45mph maximum speed limit. Thankfully Triumph got the new version spot on and the new Speed Triple is the best yet and arguably the best super naked out there.

The only part of the 2011 Speed Triple to receive the least amount of attention. But who cares? When you’ve got a triple-cylinder 1050cc engine that can pull a castle down with sheer torque alone and yet still run with the sports bike boys, you know this engine just has to be pretty special. The claimed 5bhp increase in peak power doesn’t mean diddly as such. It is the extra 8-10bhp and greater spread of torque from 6-9000rpm that makes a big difference. Overtakes are completed quicker and with a greater safety margin, and the Speed triple will wheelie for ever. A revised ECU, exhaust and airbox are responsible for the power step and also the wonderful, low rpm manners – we like tractable. New gearbox components make shifting more positive.

The new frame allowed Triumph to shift the engine further forward and angled downward to shift the bike’s front weight bias in order to speed up the steering and make the Speed Triple as agile as the glorious 675 street Triple. Triumph also shifted the battery to behind the headstock, moved the rider closer to the steering head and changed the steering geometry. The upshot is a bike that is so easy to ride in any situation. Fast road riding, town work and track days are now all within the Speed Triple’s remit. The seat is narrower and ride height lower, making the bike accessible to short-legged riders – the slightly smaller turning circle makes life a lot easier,too.

The new dash layout features a service schedule indicator, programmable shift light and a pre-wired Tyre Pressure Monitor System that only needs the £120 accessory sensors fitted to the wheels. The ignition key now has an immobiliser as per the Japanese competition. Special star rating goes to the Brembo radial brakes that have been retained from the old model – these beauties work and work better still now a Brembo front master cylinder is used. An ABS version will be available early 2011.

Source MCN
