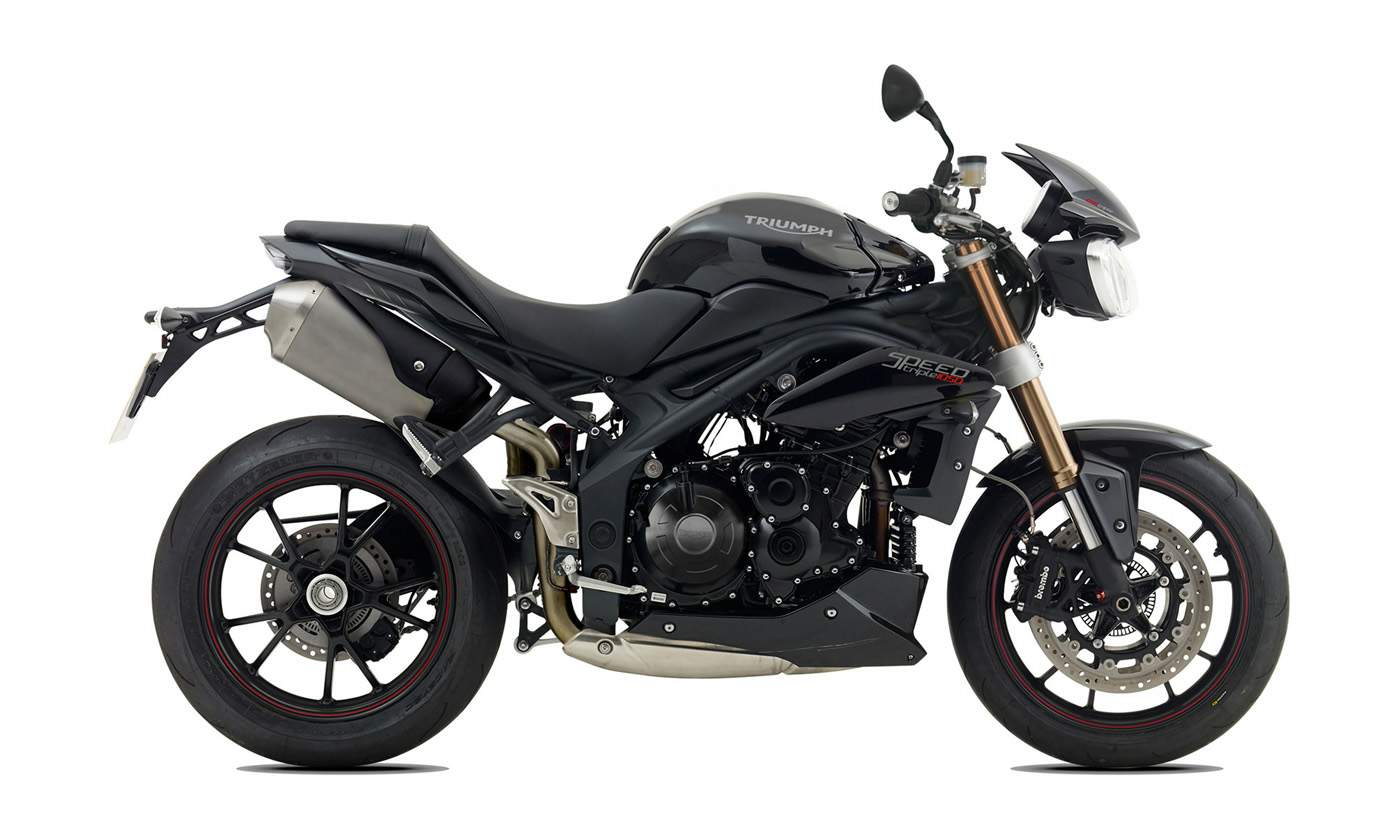

2015 Triumph Speed Triple

Make Model	Triumph Speed Triple
Year	2015
Engine	Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
Capacity	1050 cc / 64.1 cub in
Bore x Stroke	79 x 71.4 mm
Cooling System	Liquid-cooled
Compression Ratio	12.0:1
Induction	Multipoint sequential electronic fuel injection with SAI
Engine Oil	10W/40 Synthetic
Oil Capacity	3.8 L / 1.0 US gal / 0.8 Imp gal
Exhaust	Stainless Steel 3 into 1 into 2, twin high level stainless steel silencers
Ignition	Digital–inductive type via electronic engine management system
Starting	Electric
Max Power	99 kW / 135 hp @ 9400 rpm
Max Torque	111Nm / 11.3 kgf-m / 82 ft.lbs @ 7750rpm
Clutch	Wet, multi-plate
Transmission	6 Speed
Final Drive	X ring chain
Frame	Aluminium beam twin-spar, single sided swingarm, aluminium alloy
Front Suspension	Öhlins 43mm NIX30 upside down forks with adjustable rebound and compression damping
Front Wheel Travel	120 mm / 4.7 in
Rear Suspension	Öhlins TTX36 twin tube Monoshock with rebound and compression damping
Rear Wheel Travel	130 mm / 5.1 in
Front Brakes	2 x 320 mm floating discs, Brembo 4 piston monobloc radial calipers, ABS
Rear Brakes	Single 255 mm disc, Nissin 2 piston sliding caliper, ABS
Front Wheel	Cast aluminium alloy multi spoke 17 x 3.5 in
Rear Wheel	Cast aluminium alloy multi spoke 17 x 6.0 in
Front Tyre	120/70 ZR 17
Rear Tyre	190/55 ZR 17
Rake	22.8°
Trail	90.9 mm / 3.6 in
Dimensions	Length 2100 mm / 82.6 in Width 795 mm / 31.3 in (handlebars) Height 1110 mm / 43.7 in (without mirrors)
Wheelbase	1435 mm / 56.5in
Seat Height	825 mm / 32.5in
Dry Weight	186 kg / 410 lbs
Wet Weight	214 kg / 472 lbs
Fuel Capacity	17.5 L / 4.6 US gal / 3.8 Imp gal
Consumption Average	90 km/h / 56 mph: 4.7 L/100 km / 21.3 km/l / 50 US mpg / 60 Imp mpg
Standing ¼ Mile	11.3 sec
Top Speed	253.8 km/h / 157.7 mph
Colours	Crystal white, Diablo red, Phantom black

Lighter, sharper, more powerful and even wilder looking than ever. The Speed Triple is the urban icon for attitude, aggressive looks and full-on sports bike performance.

It’s the perfect performance package with high quality suspension, strong brakes, light weight, agile handling and plenty of power where you need it for real world sports road riding.

Styling
Bodywork

Stripped back bodywork, it looks muscular, hunched forward, mean and aggressive because that’s exactly what the Speed Triple is.

Frame

A thoroughly modern twin-tube, twin spar frame wrapped tight around a bulging powerhouse of an engine. The Speed Triple’s unmistakable structure is pure unadulterated Triumph.

Exhaust

The twin silencers beneath the short, stubby tail section of the Speed Triple leave the rear wheel fully exposed on the right by the cool, single-sided swingarm. Not for looks, for real world sports bike riding. It just happens to look great.

Headlights

The trademark twin pentagon headlights ensure there’s no mistaking what’s coming.

Fly Screen

Factory colour matched Fly screen diverts air from the rider to reduce wind blast and increase comfort. Aggressively styled in line with the motorcycle, the fly screen is manufactured from high impact ABS for durability.

Seat Cowl

Factory colour match seat cowl offers a quick, easy change of look for solo riding.

Engine
Performance

The power of the Speed Triple comes from a muscle-packed three-cylinder, 1050cc engine. Serious top end performance comes from a huge 135PS, backed up by 111Nm of peak torque with plenty more muscle lower down the rev range. Giving you instant thrust regardless of revs or gear. And, with our high tech fuel injection all the power comes smoothly and relentlessly, right when you ask for it.

Configuration

The liquid-cooling, double overhead cams of the Speed Triple operate 12 valves and rev out beyond 10,000rpm.

And, we’ve finely tuned the three-into-two exhaust like a musical instrument to enhance the engine's torque and make it snarl even more angrily as the revs build.

Chassis
Frame

The Speed Triple introduced an all-new frame in 2011 to give you more forward weight distribution for sharper handling and exceptional front end feel.

And we’ve kept the geometry sharp, with a steep 22.8 degree steering angle, short 1435mm wheelbase and just 90.9mm of trail to give you breathtaking responsiveness and agility.

Suspension

The upside down forks on the Speed Triple are high quality Showa units, 43mm in diameter with adjustable rebound and compression damping, while the centrally mounted, single rear shock also has adjustable spring preload. So you can set the Speed Triple up for a gentle outing or an on-the-edge track day and it'll perform brilliantly.

Brakes

To match the Speed Triple’s level of handling and power we fitted Brembo's radial four-piston calipers, with the option of ABS, for outstanding stopping power and feel.

Wheels and tyres

We fitted lightweight cast aluminium wheels and a wide 6inch rim on the back to take the grippiest, sports-focused rubber the Speed Triple deserves.

Single-sided swingarm

The swingarm is aluminium and features an eccentric chain adjuster so that the rear wheel stays perfectly in line with the front for focussed, precise handling. swingarm is also incredibly stiff, resulting in a super-stiff chassis that's rigid enough for the hardest track use and tough enough for real world roads.

Riding position

The Speed Triple is all about high performance precision and control. So the bars are low, the footrests high and set back and the seat is sculpted deep to hold you in a forward-leaning position.

As you take control of the Speed Triple you are in no doubt that it’s made for sports riding, but you can tell we built it for the real world too.

Equipment and Technology
ABS

The four piston, radially mounted Brembo front callipers, with optional electronic ABS make 100 calculations per second to prevent wheel lock up at either end.

Immobiliser

We’ve made sure your bike is protected by a coded key immobiliser system which disables the ignition if it detects an attempt to turn or force the ignition switch without the presence of the electronically coded correct key.

Instruments/ computer

A serious bike needs a high level of equipment so the Speed Triple, with its modern, single purpose chassis, is driven by the latest technology.

The instrumentation is part digital, part analogue so that you are presented with the most intuitive display of information. We also added programmable gear change lights, service interval reminder, lap timer, trip computer and fuel gauge, everything the focussed performance rider needs.
