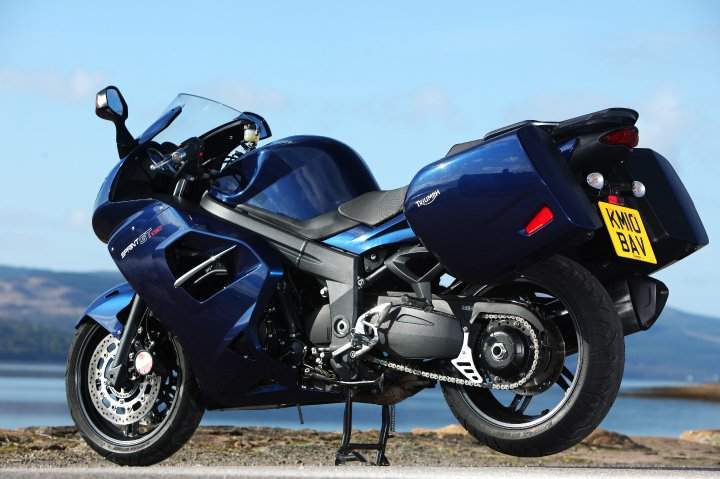

Triumph Sprint GT
|
. |
Make Model |
Triumph Sprint GT |
Year |
2012 |
Engine |
Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder. |
Capacity |
1050 cc / 64.1 cu in |
Bore x Stroke | 79 x 71.4mm |
Cooling System | Liquid cooled |
Compression Ratio | 12.0:1 |
Lubrication | Wet sump |
Engine Oil | Synthetic, 10W/40 Synthetic |
Induction |
Multipoint sequential electronic fuel injection with SAI |
Ignition |
Digital |
Spark Plug | NGK, CR9EK |
Starting | Electric |
Max Power |
96 kW / 128 hp @ 9200 rpm |
Max Torque |
108 Nm / 11.0 kgf-m / 80 ft-lb @ 6300 rpm |
Transmission |
6 Speed |
Final Drive | Chain |
Frame | Aluminium beam perimeter, swingarm single-sided, aluminium alloy with eccentric chain adjuster |
Front Suspension |
Showa 43mm cartridge forks with dual rate springs and adjustable preload |
Front Wheel Travel | 127 mm / 5.0 in |
Rear Suspension |
Showa monoshock with adjustable preload and rebound damping |
Rear Wheel Travel | 152 mm / 6.0 in |
Front Brakes |
2 x 320 mm Floating discs, 4 piston calipers, ABS |
Rear Brakes |
Single 255 mm disc, 2 piston caliper, ABS |
Front Wheel | Cast aluminium alloy 5-spoke 17 x 3.50 in |
Rear Wheels | Cast aluminium alloy 5-spoke 17 x 5.50 in |
Front Tyre |
120/70-ZR17 |
Rear Tyre |
180/55-ZR17 |
Dimensions |
Length 2260 mm / 88.9 in Width (handlebars) 760 mm / 29.9 in Height without mirrors 1210 mm / 47.6 in |
Seat Height | 815 mm / 32.1 in |
Rake | 23.5º |
Trail | 84 mm / 3.3 in |
Wheelbase | 1537 mm / 60.5 in |
Dry Weight | 239 kg / 527 lbs |
Wet Weight |
265 kg / 584.2 lbs |
Fuel Capacity |
20 Litres / 5.3 US gal / 4.4 Imp gal |
Five years after the introduction of the popular
Triumph Sprint ST sportstourer comes a new model from the British marque pushing
a much higher level of practicality: the Triumph Sprint GT.
Performance is taken care of by an updated version of Triumph's 1050cc triple.
First introduced in the 2005 Sprint ST, the latest incarnation of the triple has
been updated to deliver increased power, torque and usability. There's a claimed
130hp at 9200rpm on hand, with development focused on power delivery in the
mid-range rather than chasing peak power. Peak torque is now 108Nm, delivered
1200rpm lower in the rev range.
The GT has a 20lt fuel tank, which Triumph claims will be good for 320km-plus
between stops. For open road use, a sixth gear which is seven per cent taller
than the ST should help things out in that regard.
The Spring GT also has 31lt panniers, ABS as standard, underseat storage, and an
optional top box capable of housing two full-sized helmets and offering a
12-volt power supply to allow 'on the go' charging of electrical items such as
laptops and mobile phones.
Compared to the more sporting ST, the GT is all new from behind the fuel tank,
while up front it incorporates a number of updates to create a new bike with a
different attitude and feeling for both rider and pillion.
The GT features better performing reflector headlights, and a new internal
mounting system for the mirrors has been introduced to give a clearer view at
speed, while the cockpit itself has been restyled to give a sharper and more
contemporary look.
In the cockpit, riders will find a comprehensive three-dial instrument panel
with an analogue speedometer and tachometer, while the third dial hosts the
readout for the onboard computer, where the rider can scroll through fuel
consumption, range-to-empty, journey time, average speed and clock functions.
Further major differences can be found at the rear
of the bike. The ST's underseat exhaust has been replaced by a traditional
side-mounted system, with the new triangular section silencer mounted under the
right-side pannier to free up enough underseat storage space.
The GT has a lower seat and footpegs compared to the Sprint ST, while the
built-in luggage rack comes with grab handles as standard.
A new rear wheel is 1kg lighter than the visually identical item on the ST, and
both front and rear wheels are shod with Bridgestone's dual compound BT021 tyre.
The GT's longer single-sided swingarm creates a 1537mm wheelbase (compared to
1457mm of the Sprint ST), while the twin-spar aluminium beam frame is carried
over from the Sprint ST. The 43mm forks have received updated internals for
improved control and damping, and the rest of the chassis is new.
Rear wheel mass has been reduced by 1kg for less unsprung weight, while the
tyres are Bridgestone BT021 dual compound items.
The new exhaust system lowers the centre of gravity when compared to the ST's
underseat system, and the new subframe creates a more practical rear end and the
only body panels carried over from the sporting ST are the fuel tank and fairing
lowers. The Sprint GT also features a newly designed centre stand for improved
ease of operation.
Up front, twin 320mm floating discs are grabbed by four-piston calipers with a
single 255mm disc at the rear. Triumph's ABS system, an option on the Tiger 1050
and Sprint ST, has been updated and is standard fitment on the Sprint GT.
Brakes have been revised with lighter discs, more rigidly mounted for greater
durability, and a new brake pad formulation which is claimed to provide greater
feel and approximately 10 per cent increase in braking performance.
Accessory options include a gargantuan 55lt 'powered' top box, which has a
built-in 12-volt power socket that allows the recharging of electrical items
such as mobile phones and notebook computers while on the go. With built-in
electrical contact points, the top box requires no electrical wiring by the
rider for true 'plug and play' practicality.
The top box is also colour coded and operated by the ignition key, and is
available with an optional inner liner.
Other accessories include heated handlebar grips, a taller aero screen, a gel
comfort seat and magnetic tank bags which can increase the Sprint GT's luggage
capacity by a further 30lt. The Triumph Sprint GT will be available in two
colour options: Aluminium Silver or Pacific Blue.
Any corrections or more information on these motorcycles will be kindly appreciated. |
