Triumph Tiger 1200 Alpine Special Edition
|
. |
Make Model |
Triumph Tiger 1200 Alpine Special Edition |
Year |
2020 - 21 |
Engine |
Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder |
Capacity |
1215 cc / 74.1 cub in |
Bore x Stroke | 85 x 71.4mm |
Cooling System | Liquid-cooled |
Compression Ratio | 11.0:1 |
Induction |
Ride by Wire, fuel injection |
Ignition |
Digital |
Starting | Electric |
Exhaust | 3 into 1 header system, Arrow titanium silencer with carbon fibre end cap, side mounted |
Max Power |
104 kW / 139 hp @ 9300rpm |
Max Torque |
122 Nm / 90.7 lb-ft @ 7600 rpm |
Clutch | Wet, multi-plate hydraulically operated, torque assist |
Transmission |
6 Speed |
Final Drive | Shaft |
Frame | Tubular steel trellis frame |
Swingarm | Single-sided, cast aluminium alloy with shaft drive |
Suspension | Single-sided, cast aluminium alloy with shaft drive |
Front Suspension |
WP 48 mm upside down forks, electronically adjustable damping |
Front Wheel Travel | 190 mm / 7.4 in |
Rear Suspension |
WP monoshock, electronically adjustable semi active damping with automatic preload adjustment |
Rear Wheel Travel | 193 mm / 7.6 in (XRx low: 158 mm / 6.2 in) |
Front Brakes |
2 x 305 mm floating discs, radially mounted monobloc Brembo 4-piston calipers, switchable ABS |
Rear Brakes |
Single 282 mm disc, Nissin 2-piston sliding caliper, switchable ABS |
Front Wheel | Cast aluminium alloy 10-spoke 19 x 3.0 in |
Rear Wheel | Cast aluminium alloy 10-spoke 17 x 4.5 in |
Front Tyre |
120/70 R19 |
Rear Tyre |
170/60 R17 |
Rake | 23.1º |
Trail | 99.9 mm / 3.9 in |
Dimensions |
Width 830 mm / 32.7 in (with handlebars) Height 1470 mm / 57.8 in |
Wheelbase | 1520 mm / 59.8 in |
Seat Height | 835 - 855 mm / 32.8 - 33.6 in |
Dry Weight |
242 kg / 530 lbs |
Fuel Capacity |
20 Litres / 5.3 US gal / 4.4 Imp gal |
Inspired by some of the world’s most thrilling motorcycle adventures from all
over the world, these new motorcycles incorporate a unique high specification
set-up and dedicated paint schemes, to deliver even greater adventure
capability, style and value for money.
Two very special editions
Tiger 1200 Desert Edition – Inspired by epic adventures taken across the most inhospitable deserts in the world, from the Sahara, to the Kalahari and beyond.
Tiger 1200 Alpine Edition – Inspired by the epic alpine adventures riders have made across one of the most breathtakingly beautiful mountain ranges in the whole world.
Exclusive dedicated Desert and Alpine edition paint schemes and detailing
Special edition ‘Sandstorm’ paint scheme with dedicated ‘Desert Edition’ graphics for the new Tiger 1200 Desert Edition.
Distinctive ‘Snowdonia White’ paint scheme with dedicated ‘Alpine Edition’ graphics for the new Tiger 1200 Alpine Edition.
All the distinctive and purposeful style of the exceptionally capable Tiger 1200.
Dedicated high specification set-up with even greater value for money
The new Tiger 1200 Special Editions both add to the mid-spec Tiger XRx and Tiger XCx specification set-up with an even higher level of equipment, designed to enhance the ride and deliver even greater value for money
Higher specification features:
– Lightweight Arrow titanium silencer
– Triumph Shift Assist
Incredible standard of triple powered performance, rider technology and premium specification equipment
Powerful and responsive 1,215cc triple engine, delivering peak power of 141PS @ 9,350rpm, maximum torque of 122Nm @ 7,600rpm and an incredible sound from a lightweight Arrow titanium silencer.
State-of-the-art rider technology. Including: Triumph Shift Assist, adjustable full colour TFT instruments, optimised cornering ABS & traction control, up to 5 riding modes, all LED lighting, Illuminated buttons, keyless ignition, cruise control, Electrically adjustable windscreen, heated grips and multiple power sockets.
Premium specification equipment. Including: Triumph semi-active suspension (TSAS), Brembo Monobloc brakes, Adjustable seat height
Inspired by the epic alpine adventures that Tiger 1200 have enjoyed across one of the most breathtakingly beautiful mountain ranges in the world, the new Tiger 1200 Alpine Edition features all of the distinctive and purposeful Tiger 1200 XR line-up style and incredible adventure capability, whilst bringing even higher standard of finish, including:
Exclusive ‘Snowdonia White’ special edition paint scheme.
Dedicated ‘Alpine Edition’ graphics.
New metallised ‘SE’ radiator badges.
Based on the mid spec XRx model, the Tiger 1200 Alpine Edition adds even higher specification features in order to enhance its long distance adventure capability and affordability. These features are:
Lightweight Arrow titanium silencer
Triumph Shift Assist for clutchless up- and down-shifts

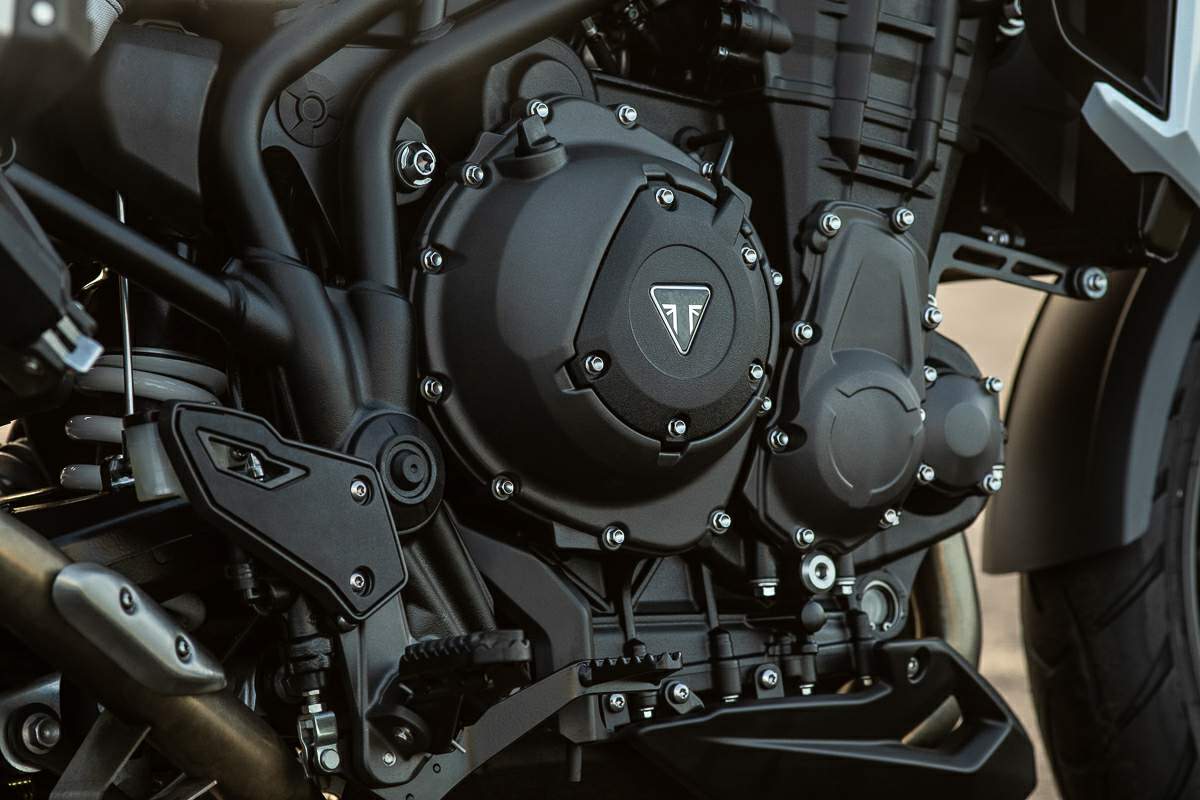

Tiger triple engine
The new Alpine Edition features the Tiger 1200’s 1215cc Triple engine, the most powerful shaft-driven engine in its class, delivering smooth and immediate response through the gears up to a peak power of 141PS @ 9,350rpm. This is derived by the high quality engine components (including lightweight flywheel, lighter crankshaft and magnesium cam cover) that allow the engine to spin up fast for instant power delivery and maximum torque of 122Nm @ 7,600rpm.
In addition, the lightweight Arrow titanium silencer enhances the bike’s agility and improves the already thrilling Tiger Triple soundtrack.
State-of-the-art technology
The new Alpine Edition offers a huge choice of ‘core’ features and benefits to deliver a superior riding experience. This ride enhancing technology includes:
Adjustable full colour TFT instrument – Full colour and clear instrumentation providing precise rider information with an intuitive operation
Optimised Cornering ABS and Traction Control – Enabled via an Inertial Measurement Unit (IMU), this system supports the automatic selection of the appropriate level of ABS and Traction Control intervention by constantly measuring roll, pitch, yaw and acceleration rates, in order to calculate the lean angle. This fully integrated technology system ensures greater riding stability at all times.
4 rider modes (Rain, Road, Off-Road, Sport) – The riding modes adjust throttle response, ABS and Traction Control settings for maximum rider control in all riding conditions.
All LED lighting – Providing enhanced visibility and style, Triumph’s LED signature lighting creates clear views ahead and from behind
High specification Triumph Semi-Active Suspension (TSAS)
Featuring premium adjustable WP suspension, allowing the rider to electronically control the type of ride with the TSAS controlling the front and rear suspension damping. It also automatically adapts the RSU pre-load settings to maintain optimal ride height for different rider sizes and payloads. There are two TSAS modes: Auto / Off-Road
Triumph Shift Assist
Providing seamless clutchless up and down gearshifts, this system facilitates silky smooth gear changes and significantly reduces rider fatigue
Illuminated backlit buttons
Ergonomically-designed fully backlit handlebar switch cubes and joystick to make night-time use even easier
Keyless ignition – Easier to live with daily, featuring a premium keyless ignition
Cruise control – Accessed easily through the left hand switchcube, the new single button cruise control helps to reduce rider fatigue
Electrically adjustable touring screen – Configure the screen height on the road through intuitive backlit switch cube for exceptional long distance comfort.
High levels of standard technology specification, including ride-by-wire throttle, heated grips and three power sockets including a handy USB socket under the seat.
High specification chassis
The new Tiger Alpine Edition maintains the Tiger’s well known premium equipment standard with high specification Brembo brakes, adjustable WP suspension controlled by Triumph’s Semi-Active Suspension technology, and a two-position seat height (835-855 mm), adjustable by 20 mm to suit riding style and terrain.
Any corrections or more information on these motorcycles will be kindly appreciated. |
