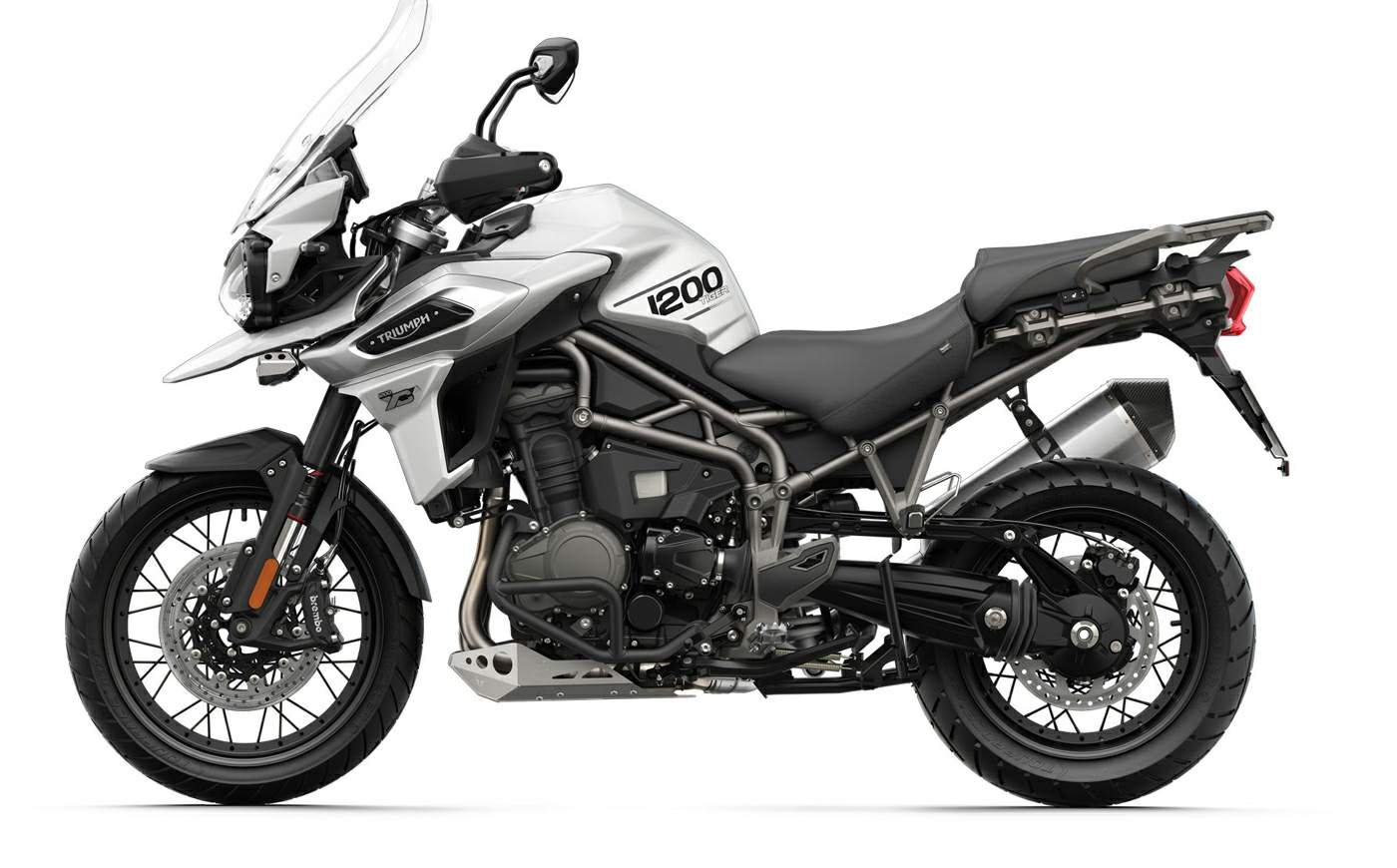

Triumph Tiger 1200 Explorer XCa

Make Model	Triumph Tiger Explorer XCa
Year	2018
Engine	Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
Capacity	1215 cc / 74.1 cub in
Bore x Stroke	85 x 71.4mm
Cooling System	Liquid-cooled
Compression Ratio	11.0:1
Induction	Ride by wire, fuel injection
Ignition	Digital
Starting	Electric
Exhaust	Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Oil Capacity	4.0 Litres / 1.1 US gals / 0.88 Imp gal
Max Power	101 kW / 137 hp / 139 PS @ 9300rpm
Max Torque	123 Nm / 12.5 kgf-m / 90.7 lb-ft / @ 6200 rpm
Clutch	Wet, multi-plate
Transmission	6 Speed
Final Drive	Shaft
Frame	Tubular steel trellis frame, swingarm single-sided, cast aluminium alloy with shaft drive
Front Suspension	WP 48 mm upside down forks, adjustable rebound and compression damping
Front Wheel Travel	190 mm / 7.5 in
Rear Suspension	WP monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment
Rear Wheel Travel	193 mm / 7.6 in
Front Brakes	2 x 305 mm Floating discs, radially mounted monobloc Brembo 4-piston calipers, switchable ABS
Rear Brakes	Single 282 mm disc, Nissin 2-piston sliding caliper, switchable ABS
Front Wheel	32-Spoke, aluminium rim, 19 x 3.0 in
Rear Wheel	32-Spoke, aluminium rim, 17 x 4.5 in
Front Tyre	120/70 R19
Rear Tyre	170/60 R17
Rake	23.1º
Trail	99.2 mm / 3.9 in
Dimensions	Width 830 mm / 32.7 in (with handlebars) Height 1400 mm / 55.1 in (without mirrors)
Wheelbase	1520 mm / 59.8 in
Seat Height	837 - 857 mm / 32.9 - 33.7 in
Dry Weight	248 kg / 5 lbs
Fuel Capacity	20 Litres / 547 US gal / 4.4 Imp gal

When you’re ready to face the ultimate in adventure riding, the top specification 1200 XCA lets you leave the everyday behind, with a Tiger that’s now as great off-road as its always been on.

With an amazing weight saving of 10kg, the latest Triple engine together with huge technology and ergonomic enhancements, this Tiger is more agile and capable than ever before.

As it’s the highest spec model, there’s a serious step up in features over the XCX with adaptive LED cornering lighting, Triumph Shift Assist for seamless clutchless gear changes, a premium Arrow silencer, and six riding modes including ‘Rider Programmable’ and ‘Off-Road Pro’.

LIGHTER BY 10KG
The XCA weighs in at an amazing 10kg lighter than its predecessor (the greatest saving in the new Tiger XC line-up) to bring a whole new dimension to its off-road capability and on-road handling. This weight saving has been achieved through over 100 enhancements across the whole motorcycle including a lighter flywheel, crankshaft, exhaust silencer, engine bars and battery.

MORE POWERFUL AND RESPONSIVE ENGINE
The thrilling new generation, Tiger 1200 XCA engine delivers more peak power 141PS (at 9,350rpm) and maximum torque of 122Nm (at 7,600rpm), for a more immediate power delivery and feel, and even better all-day, smooth & reliable road and off-road riding.

NEW PREMIUM ARROW EXHAUST
A new premium Arrow silencer reflects the XCA’s range-topping standing and delivers an even more thrilling Tiger Triple soundtrack.

Tiger 1200 XCx Standard Equipment

5KG lighter than previous model
Significantly upgraded 1215cc triple engine
Lighter weight silencer
New ‘Off Road Pro’ riding mode
New stylish all-black spoked wheels
Full colour 5” TFT display instruments
Ergonomically backlit switchcubes and 5 way joystick
All LED lighting including signature daytime running lights (DRL)
LED self-cancelling indicators
Keyless ignition
5 riding modes: Off road pro, road, rain, off road and sport
Cruise control
Triumph Semi Active Suspension (TSAS)
Premium Adjustable WP front and rear suspension
Brembo monobloc front brake calipers
Optimised cornering ABS
Optimised cornering traction control
Engine protection bars
Torque assist hydraulic clutch
Unique-in-class electrically adjustable screen
2 position Adjustable seat height
Centre stand
On Board computer
12V & USB Power Sockets
Immobiliser
Heated grips

Additional to Tiger 1200 XCX

10KG lighter than previous model
Triumph Shift Assist
LED adaptive cornering lighting
Titanium and carbon fibre wrapped Arrow silencer
6 riding modes: Off-road Pro, Road, Rain, Off-road, Sport and Rider programmable
Hill Hold Control
Heated grips
Heated rider and pilion seats
Unique-in-class electrically adjustable screen
LED auxiliary lighting
Billet machined footrests
Additional 3 x TFT styles
