Velocette Veeline

Make Model	Velocette Veeline
Year	1958 - 60
Engine	Four stroke, flat twin cylinder
Capacity	192 cc / 11.7 cub in
Bore x Stroke	50 x 49 mm
Compression Ratio	8.0:1
Cooling System	Air cooled
Lubrication	Wet sump
Carburetor	2 x Amal 363 monobloc
Exhaust	Twin with torpedo shaped silencers
Ignition	Coil
Battery	6V, 42W
Starting	Kick start
Max Power	8.8 kW / 12 hp @ 7000 rpm
Clutch	Dry, three-plate
Transmission	4 Speed constant mesh
Final Drive	Shaft
Gear Ratio	1st 2.078 / 2nd 1.353 / 3rd 1.0 / 4th 0.739:1
Frame	Duplex frame with single top tube
Wheelbase	1300 mm / 51.2 in
Seat height	737 mm / 29 in
Ground Clearance	152 mm / 6 in
Front Suspension	Telescopic fork
Rear Suspension	Woodhead-Monroe springs with hydraulic damping
Front Brakes	5 x 1" drum
Rear Brakes	5 x 1" drum
Wheels	Spoked
Front Tyre	3.25 x 18"
Rear Tyre	3.25 x 18"
Fuel Capacity	13.6 L / 3.6 US gal
Dry Weight	125 kg / 276 lbs
Recommended Top Speed	97 km/h / 60 mph
Colours	Black, green
Source	Wikipedia

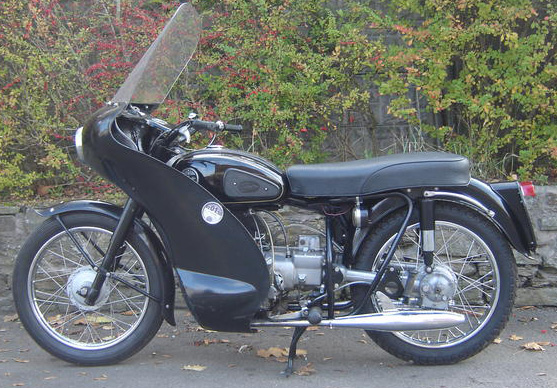

The 1959 Velocette Veeline (also known as the Vee Line) was the same as a standard Valiant with a 'dolphin' full fairing made of fibre glass that had big windscreen, a fascia panel housing the speedometer and ammeter, as well as a small glove box. The headlamp was mounted on brackets that were fixed in the fairing so that it could be adjusted but didn't turn with the forks.

Developed as competition for the emerging scooter market, the Veeline, but still had the underpowered engine of the Valiant and did not sell in sufficient numbers. The big fairing also added 21 pounds (9.5 kg) to the weight and £21 to the cost and after poor sales Velocette decided to stop production of the model in 1961.
