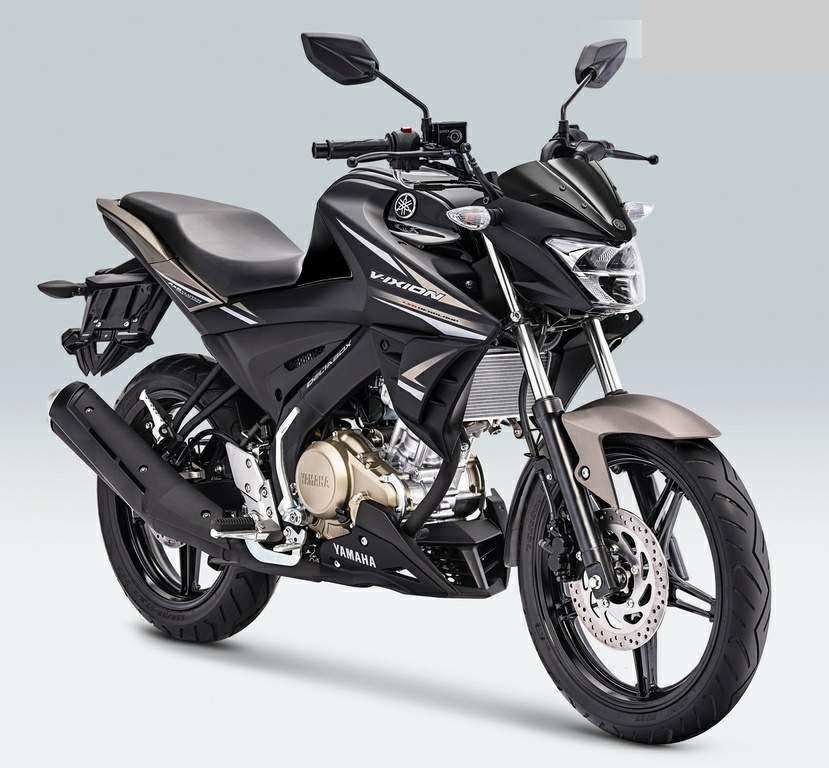

Yamaha FZ-S FI V 2.0 / FZ 150i Vixion



.

Make Model

Yamaha FZ-S FI V 2.0 / FZ 150i Vixion

Year

2017 - 18

Engine

Four stroke, single cylinder, SOHC, 4 valve with Variable Valve Actuation

Capacity

155.1 cc / 9.14 cu-in

Bore x Stroke 58.0 × 58.7 mm
Cooling System Liquid cooled
Compression Ratio 11.6 ± 0.4: 1

Induction

Fuel Injection
Lubrication Wet sump

Ignition

TCI
Starting Electric

Max Power

14.1 kW / 19 hp @ 10000 rpm

Max Torque

14.7 Nm / 10.8 lb-ft @ 8500 rpm
Clutch Multi-Plate. Assist & Slipper

Transmission

6 Speed
Final Drive Chain
Frame Steel Deltabox

Front Suspension

Telescopic fork

Rear Suspension

Aluminum swingarm with monoshock

Front Brakes

Single 282mm disc 2 piston caliper

Rear Brakes

Single 240mm disc 1 piston caliper

Front Tyre

90/80-17M/C46P

Rear Tyre

130/70-17MC/62P
Wheelbase 1320 mm / 51.9 in
Seat Height 795 mm / 31.2 in
Ground Clearance 165 mm / 6.4 in

Wet Weight

131 kg / 289 lbs

Fuel Capacity

11.5 Litres / 3.0 US gal
