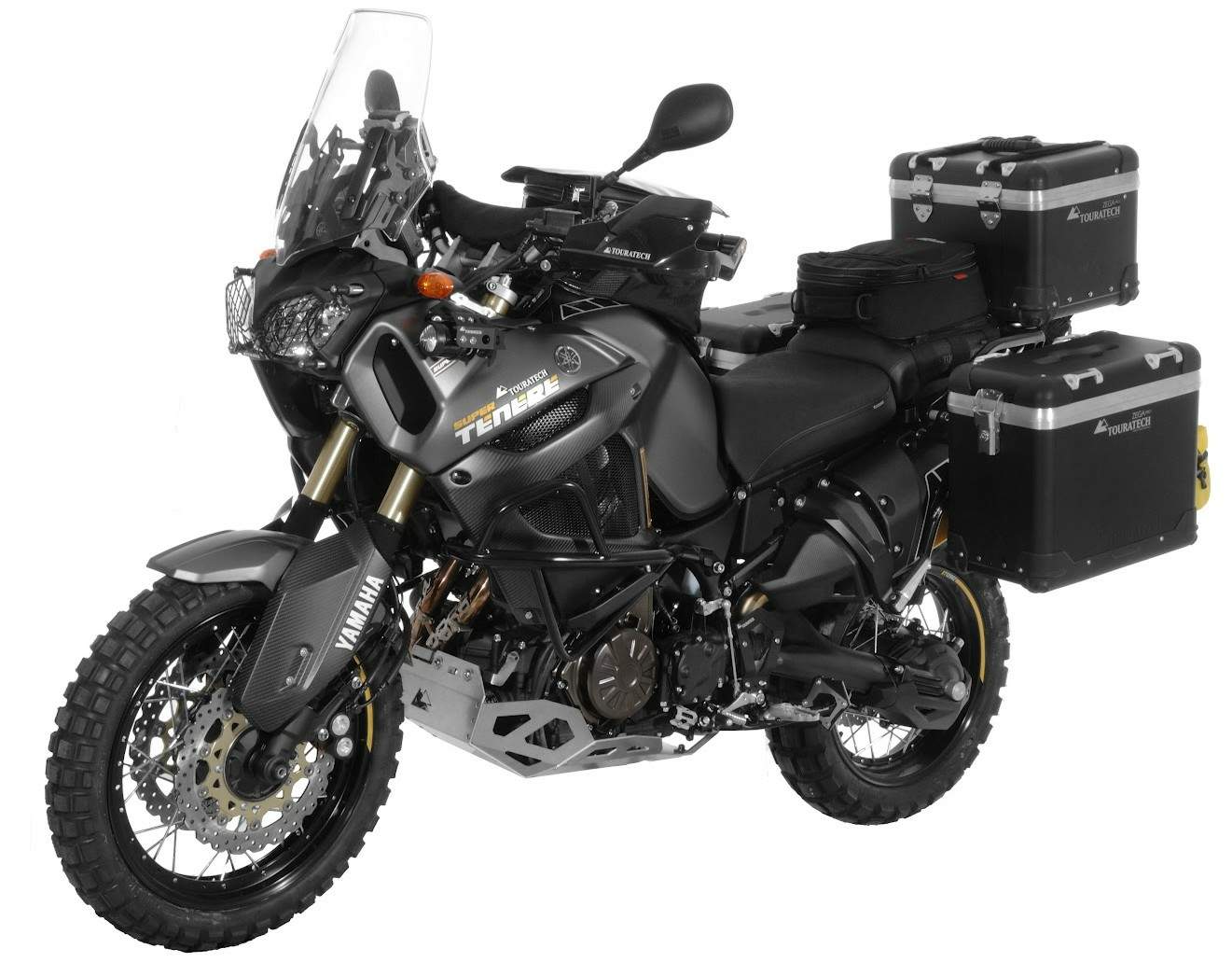

Yamaha XT 1200Z Worldcrosser

Make Model	Yamaha XT 1200Z Super Ténéré )Worldcrosser
Year	2013
Engine	Four-stroke, parallel twin, DOHC, 4-valve,
Capacity	1199 cc / 73.2 cub in.
Bore x Stroke	98 x 79.5 mm
Cooling System	Liquid cooled
Compression Ratio	11.0:1
Firing intervals	270- and 450-degree points
Induction	Fuel injected, twin spark
Throttle system	Yamaha Chip-Controlled Throttle (YCC-T)
Yamaha D-MODE	2 modes, Sport (S) and Touring (T)
Traction control	3 modes, TCS1, TCS2 and OFF
Lubrication	Dry sump
Motor oil	Semi-synthetic
Ignition	TCI
Starting	Electric
Max Power	80.9 kW / 110 hp @7250 rpm
Max Torque	114.0 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm.
Clutch	Wet, multiple-disc diaphragm spring
Transmission	6 Speed
Final Drive	Shaft
Frame	Steel tube backbone
Front Suspension	Upside-down telescopic fork, 43 mm inner tube, adjustable preload, compression and rebound damping,
Front wheel travel	190 mm / 7.4 in
Rear Suspension	Monoshock, adjustable preload and rebound damping,
Rear wheel travel	190 mm / 7.4 in
Front Brakes	2 x 310mm disc, ABS / Unified Brake System
Rear Brakes	Single 282 mm disc
Front Tyre	110/80 R19
Rear Tyre	150/70/ R17
Rake	28°
Trail	126mm / 5 in.
Dimensions	Length: 2,255mm / 88.8 in Width: 980mm / 38.6 in Height: 1,410mm / 55.5 in
Wheelbase	1540 mm / 60.6 in
Seat Height	845 mm - 870 mm Adjustable
Ground Clearance	205 mm / 8.1 in
Oil Capacity	4.2 Liters / 4.4 Quarts
Wet Weight	260 kg / 575 lbs
Fuel Capacity	23 Liters / 5.1 US gal
Fuel Consumption	6.1 L/100 km / 16.4 km/1 / 38.6 US mpg
Standing ¼ Mile	12.5 sec / 168.5 km/h / 104.7 mph
Standing 1000 m	24.5 sec / 189.8 km/h / 117.9 mph
Top Speed	192.3 km/h / 119.5 mph

Using the latest Worldcrosser accessory package available from your Yamaha dealer, you can transform your Super Ténéré into the Super Ténéré Worldcrosser to create one of the toughest long-distance bikes we've ever built.

Supplied as retro-fit parts, the Worldcrosser kit includes lightweight carbon body panels and special black anodized chassis protectors that make your Super Ténéré ready for the toughest adventure.

The Worldcrosser kit does not include the Akrapovic exhaust, fog lamp kit and pure off road tyres as shown in the images. The Acrapovic exhaust system and fog lamp kit are available as accessory items from authorised Yamaha dealers.
