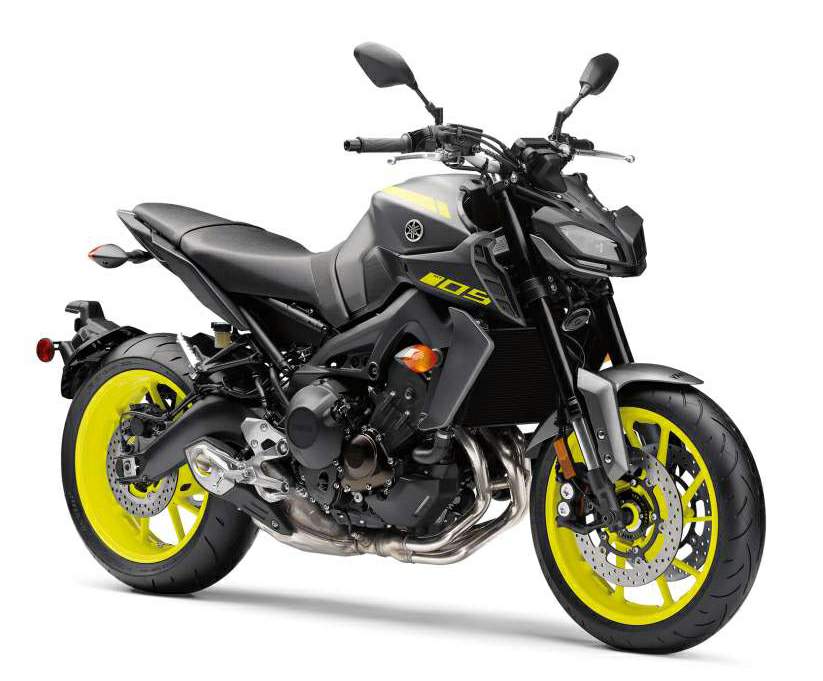

Yamaha MT-09

The motorcycle that changed everything has evolved into an even sharper and more technologically advanced Hyper Naked – and this dynamic MT-09 is built to inspire today’s generation of thrill seeking riders like no other bike in its class.

First impressions are everything – and with its intimidating LED twin-eye face, the aggressively styled MT-09 demands attention. The front winglets and radiator side fins give an ultra-sharp look – and to reinforce the bike’s uncompromising style we’ve designed a shorter tail.

With its radical looks, refined bodywork and higher specification, this unstoppable force is ready to take your Hyper Naked riding experience to the next level.

Power

Liquid-cooled 4-stroke, 850cc in-line 3-cylinder fuel-injected engine with a downdraft intake. The engine has been tuned to provide plenty of low to mid-range torque with strong yet linear throttle response.

Brakes

ABS equipped brakes feature dual 298 mm discs with 4-piston calipers up front and a 245 mm disc with single piston caliper in the rear providing peace of mind while braking under pressure or in wet conditions.

Style

The MT-09 features an aggressively styled twin-eye headlight assembly that gives this best-selling naked sport a more menacing look. The slanting dual headlights are equipped with four LED bulbs, accompanied by dual LED positioning lights.

ENGINE

• Slim, compact, 847cc, DOHC, 4- valve, liquid-cooled, 42.5 degree inclined, inline-three cylinder engine. The engine has been tuned to provide plenty of low & mid-range torque with strong yet linear throttle response.

• 4-valve, downdraft style combustion chamber

• excellent torque output… especially in the low to mid rpm range

• 4-valve design maximizes flow into & out of combustion chamber

• 31 mm intake & 25 mm exhaust valves

• valve angle is 26.5 degrees to keep combustion chamber compact

• stainless steel valves feature an Isonite surface treatment & carburized tips for excellent durability & wear resistance

• Valve adjustment intervals are every 42,000 kms.

• 120 degree crankshaft.

• design reduces inertia torque while emphasizing linear torque in response to the rider’s throttle action

• design has been optimized to achieve strong torque over a broad rpm range

• fast, linear throttle response

• engine design allows a whole new level of “rider – machine communication”

• Lightweight “coupling force balancer” is used to reduce engine vibration for excellent rider comfort.

• “Fracture split” connecting rods feature a “nut less” design.

• lower end “cap” of the rod is made from the same piece of material as the upper portion; the 2 pieces are “split” apart using a special fracturing process & then machined

• design aids in establishing true big end roundness & greater precision in con rod dimensions for excellent durability despite the high horsepower loads.

• Lightweight, forged, aluminum short skirt pistons.

• design aids in fast engine response

• reduces mechanical vibration

• excellent durability

• Direct ceramic composite plated cylinder uses “liner less” bores.

• ceramic coating sprayed directly on the aluminum block, eliminating the liner & reducing weight

• excellent heat dissipation for consistent power delivery

• coating enhances the thin film of oil between the cylinder & piston, reducing friction & increasing power

• Offset cylinder design.

• cylinder is “offset” relative to the crank (toward exhaust side)

• reduces frictional losses between the pistons and the cylinder wall during the power stroke for improved power output

• One-piece cylinder and upper crankcase assembly.

• superior engine & chassis rigidity (engine is a stressed member)

• reduces weight

• Lightweight hollow camshafts.

• cam profiles are designed for excellent torque in the low & mid rpm range

• Crankcases feature a “Tri-Axis” layout for the crank, main & drive axles.

• creates a more compact & shorter engine front to back

• shorter engine allows for optimum engine placement in the “sweet spot” of frame for desired weight distribution & great handling

• Closed loop Mikuni, 41mm, throttle body fuel injection system.

• system uses throttle position sensor (TPS) & acceleration position sensor (APS)

• injectors feature 12 holes & 20 degree spray pattern

• injectors spray fuel directly at the intake valve

• “closed loop system” uses an oxygen sensor to “sniff” spent exhaust & automatically adjust the fuel / air ratio for reduced emissions

• fuel injection benefits include choke-free starting, steady idling during warm up, excellent fuel economy & reduced emissions

• Yamaha Chip Control Throttle (YCC-T).

• YCC-T electronically controls throttle valves for outstanding throttle response & controllability

• YCC-T system provides precise control of intake air volume for a smoother torque curve

• ECU that controls YCC-T is capable of responding to changes at a speed of 1000th of a second

• Yamaha D-Mode variable throttle control … 3 modes available.

• enables the rider to adjust the performance characteristics of the engine based on riding preferences or riding conditions

• standard mode emphasizes very linear throttle & torque feel of the engine

• A mode allows the rider to enjoy even sportier engine performance in the low to mid rpms

• B Mode reduces throttle response for riding situations that require softer power characteristics, such as slippery or wet conditions

• D-Mode button is conveniently located on the RHS handle bar switch gear

• Traction control system with 2 modes plus off.

• mode 1 provides mid-level intervention (allows some wheel spin)

• mode 2 provides maximum intervention (no wheel spin)

• works in conjunction with the YCC-T system (utilizing same wheel sensors as ABS system)

• system senses when the rear wheel begins to spin & modifies the YCC-T function, ignition timing & fuel injection volume to reduce power & eliminate wheel spin

• status indicator / warning light in meter assembly

• Electronic Control Unit (ECU) utilizes a powerful 32-bit processor for fast control of the injection, engine management & ignition processes.

• Air box features dual resonator chambers & unequal internal intake funnel lengths for all 3 cylinders.

• benefit is a wide torque curve & exciting intake sound that accentuates the exhaust note

• viscous paper type air filter is used

• Compact 6-speed transmission.

• gear ratios are optimized to accentuate the torque & throttle response of the engine

• accessory plug & play quick shifter

• Compact, slipper (back limiter) clutch with assist.

• slipper clutch reduces the negative effects of engine braking on handling & suspension

• reduces rear wheel hop/ chatter when decelerating for improved riding performance & smoother corner entries

• assist function reduces clutch lever effort by up to 20%

• Accessory quick shifter ready.

• allows for faster upshifts by eliminating the need to close the throttle or pull in the clutch

• works with standard shift pattern

• reduces wear & tear on the clutch & transmission

• easy plug-and-play installation (part number: BS2-E81A0-V0-00)

• Revised, compact, low mounted, 3 into 1 exhaust system.

• stainless steel header pipes with special “Nano-film” coating

• muffler is a triple expansion type with a 3-way honeycomb catalyzer to reduce emissions

• low mounted design centralizes mass for excellent handling & light weight feeling

• revised muffler cover & end cap for improved appearance

• Flat design radiator with new side scoops.

• protector plate on lower edge of rad prevents small stones from hitting the rad & cooling fan

• new side scoops direct air into rad plus adds a styling protector plate on lower edge of rad prevents small stones from hitting the rad & cooling fan

• Wet sump lubrication system with liquid-cooled oil cooler & easy access drain plug & oil filter.

• liquid-cooled oil cooler maintains stable lubricant temperatures for extended engine life

• easy access spin-on type oil filter & drain plug for fast oil changes

• Maintenance-free transistor controlled ignition (TCI).

• produces a strong spark for fast starts

• provides precise ignition timing / mapping for optimum engine performance at all rpms

• Air Injection System (AIS… not ram air) injects fresh air into exhaust ports to fully burn any unburnt fuel, reducing exhaust emissions.

CHASSIS / SUSPENSION

• CF (Controlled Filling) die cast, twin spar, diamond-type, aluminum frame

• provides an optimized rigidity balance for incredible sports performance & excellent stability

• engine is a stressed member of the chassis, allowing a lighter, more compact main frame

• light, agile handling qualities

• Riding position is one of the most important features of the MT-09 chassis.

• upright seating position offers a balance between sports handling & excellent rider comfort

• Key chassis geometry figures include:

• 1440mm (56.7″) wheelbase, 25 degrees of rake & 103 mm of trail

• front to rear weight distribution is 51 / 49%

• lean angle is 51 degrees, highlighting the sporty nature of the MT-09

• chassis dimensions & shape are designed to enhance the qualities of the 3 cylinder engine, to centralize mass & lower the centre of gravity

• Detachable, round tube steel rear sub frame.

• allows easy access to rear suspension components

• reduces costs in the event of damage

• Externally mounted, C.F. (Controlled Filling) die cast aluminum, truss-type rear swingarm.

• external design means the swingarm mounts on the outside of the frame spars… not the inside

• external design keeps unit narrower in the seat – fuel tank junction which influences seat height & makes it easier to touch the ground

• lightweight design reduces unsprung weight for superior suspension performance

• excellent rear wheel traction & control

• Fully adjustable, 41mm inverted fork offers 137mm (5.4″) of wheel travel.

• spring preload, compression & rebound adjustability

• separated adjustments; compression adjustment in right fork, rebound in left fork

• inverted design benefits include, reduced “unsprung” weight & reduced fork flex since the larger diameter tubes are gripped in the triple clamps

• adjustable design allows the rider to tailor suspension settings to match rider weight, road conditions & riding style to optimize handling & suspension performance

• Lightweight, aluminum upper & lower triple clamps.

• Adjustable link-type Monocross rear suspension with 130 mm (5.1″) of wheel travel.

• rear shock adjustments include: 7-steps of spring preload & 3 turns of rebound damping

• ABS equipped, dual 298 mm floating front discs squeezed by radial mount, mono-block, 4-piston calipers.

• radial mount design helps to reduce caliper distortion for improved braking performance

• master cylinder uses a 16 mm piston

• excellent stopping power & control with good lever feedback

• ABS equipped, 245 mm rear disc squeezed by a lightweight single piston, slide-type Nissin caliper.

• Anti-lock braking system (ABS).

• ABS controlling ECU & hydraulic unit are combined into a single compact unit to reduce weight & centralize mass

• when ABS system senses impending wheel lock-up (via active type wheel sensors) it regulates hydraulic braking pressure to the point just before the wheel or wheels lock-up

• ABS benefits include; excellent control under hard braking or when braking on wet, slippery or loose surfaces

• Lightweight, cast-aluminum 10-spoke wheels.

• lightweight design reduces unsprung weight for excellent suspension & handling characteristics

• front rim size is MT3.50-17; rear rim size is MT5.50-17

• Conventional, tapered aluminum handlebar.

• lightweight & strong

• offers a comfortable, upright riding position for excellent all day riding comfort

• traditional design allows easy replacement to a different “bend” if desired

• 14-litre steel fuel tank.

• slim design with great knee grip

• steel allows use of magnetic style tank bags

• reserve portion of the tank is 2.8 litres (low fuel light illuminates)

• internal electric fuel pump

• One piece, long design rider & passenger seat.

• seat height is 815 mm (32.1″)

• dual texture seat cover

• Compact, liquid crystal multi-function meter / instrument.

• functions (all digital) include: bar-style tachometer, digital speedometer, odometer, dual trip meters, fuel gauge, fuel reserve trip meter (counts kilometers since low fuel light illuminated) coolant temperature, gear indicator, instant & average fuel consumption, intake air temperature, D-mode display & engine trouble diagnostic mode

• background illumination is adjustable

• Super aggressive, LED “twin eye” headlights with LED position lights.

• compact LED twin headlights (2 – LEDs per headlight)

• on low beam the inner 2 – LEDs illuminate; on high beam all 4 – LEDs illuminate

• LED position lighting below the main twin eye lights (3 – LEDs per strip)

• LEDs have a much longer service life Vs. conventional bulbs & also use less power

• LED lighting compliments MT-09’s aggressive, lightweight “naked roadster styling”

• 4 – LED tail light with unique running / brake light display.

• Forged aluminum, swingarm mounted rear fender & license plate holder.
