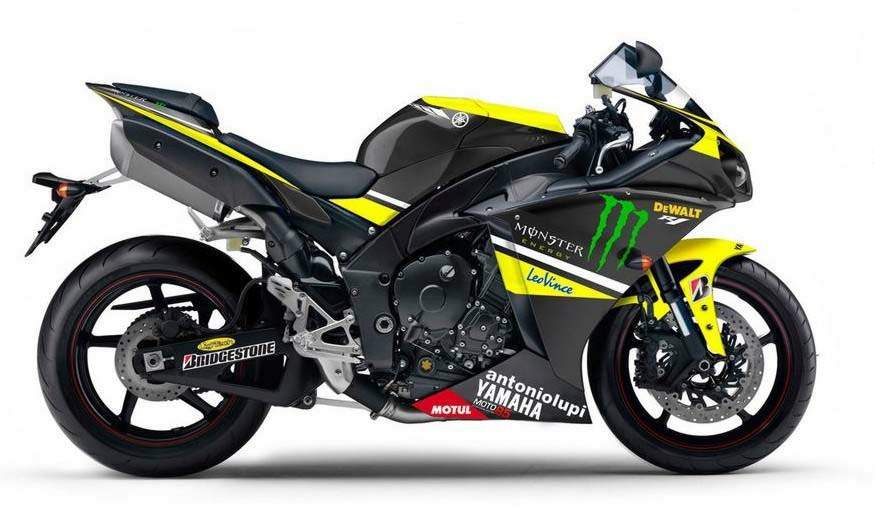

Yamaha YZF-R1 Monster Tech3 Replica

.

Make Model

Yamaha YZF 1000 R1 Monster Tech3 Replica

Year

2010

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

998 cc / 60.9 cu-in
Bore x Stroke
78 X 52.2 mm
Compression Ratio
12.8:1
Cooling System Liquid cooled
Engine Oil Synthetic, 10W/40
Lubrication Wet sump

Induction

Mikuni 45mm throttle body FI

Ignition

TCI: Transistor Controlled Ignition
Spark Plug NGK, CR9EK
Starting Electric

Max Power

133.9 kW / 182 hp @ 12500 rpm

Max Torque

115.5 Nm / 11.8 kgf-m @ 10000 rpm
Clutch Cable-operated multiplate wet slipper clutch.

Transmission

6 Speed
Final Drive "O" ring chain
Gear Ratio 1st  38/15 (2.533)  2nd 33/16 (2.063)  3rd 37/21 (1.762)  4th 35/23 (1.522)  5th 30/22 (1.364)  6th 33/26 (1.269)
Frame Deltabox V aluminium

Front Suspension

43mm inverted telescopic fork w/adjustable preload, compression damping, rebound damping;
Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Single shock w/piggyback reservoir; adjustable for hi-/lo-speed compression damping, rebound damping, spring preload,
Rear Wheel Travel 120 mm /  4.7 in

Front Brakes

2x 310mm discs 6 piston calipers

Rear Brakes

Single 220mm disc 1 piston caliper

Front Tyre

120/70 ZR17

Rear Tyre

190/55 ZR17
Rake  24°
Trail 102 mm / 4.0 in
Dimensions

Length 2070 mm /  81.5 in

Width 715 mm /  28.1 in

Height 1130 mm /  44.5 in

Wheelbase 1415 mm / 55.7 in
Ground Clearance 135mm / 5.3 in
Seat Height 835 mm / 32.8 in

Dry Weight

177 kg / 389.4 lb

Wet Weight

206 kg / 454 lb

Fuel Capacity

18 Litres / 4.8 gal

Standing ¼ Mile

10.5 sec

Top Speed

280.9 km/h
.

Yamaha France has released just four different race replicas of their four MotoGP riders. So the Valentino Rossi and Jorge Lorenzo replicas feature the Fiat-Yamaha color scheme, while those of Ben Spies and Colin Edwards received the Monster Tech3 Yamaha paintjobs.

But there’s actually much more to these bikes than just paint; there’s a small race kit, which includes:

Bike seat cover with the official team colors bearing the number of pilot
Pair of YEC racing levers
Replica helmet of the MotoGP rider whose race replica you’ve chosen (which can be signed by that rider was well)


Official Yamaha team shirt,
2 paddock passes paddock at Le Mans for the Moto GP weekend
“Wild card” track day with Yamaha instructors
Certificate of authenticity and a plaque attached to specific authentication framework makes these machines truly unique.
Most importantly, the four Yamaha GP riders are the ones handing in the keys
