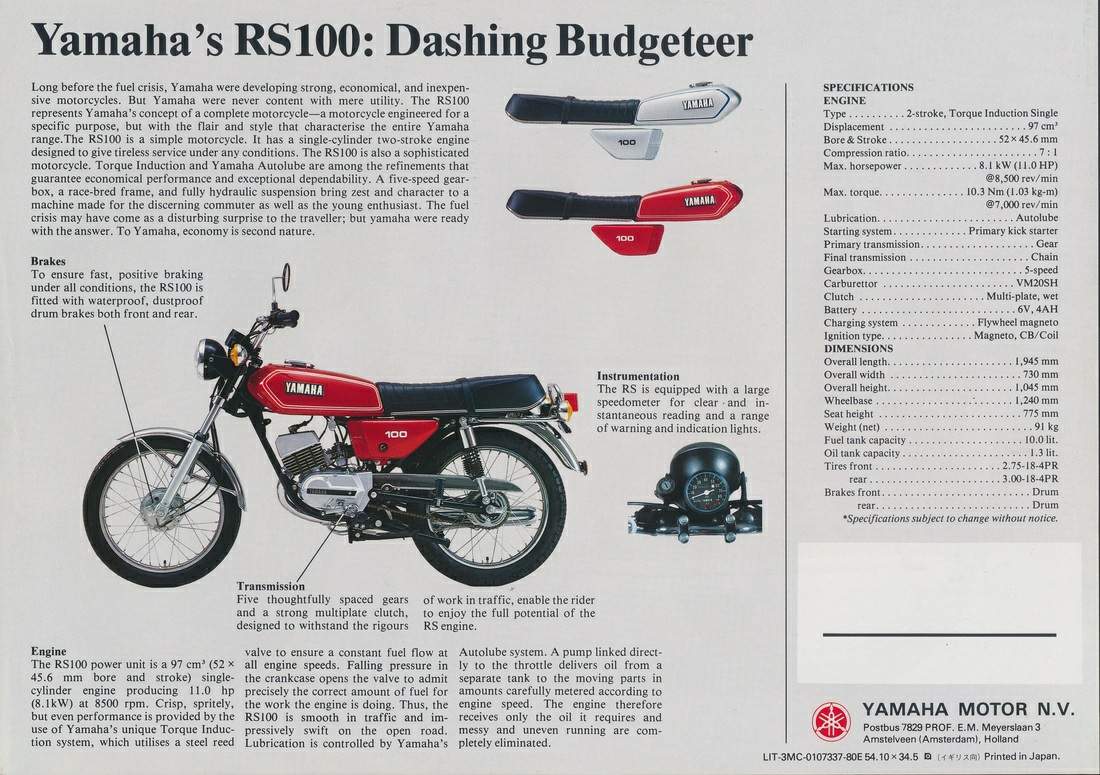

Yamaha RS 100

.

Make Model

Yamaha RS 100

Year

1978 - 79

Engine

Two stoke, torque induction, single

Capacity

97 cc / 5.9 cu-in
Bore x Stroke 52 x 45.6 mm
Cooling System Air cooled
Compression Ratio 7.0 : 1
Lubrication Autolube

Induction

VM20SH carburetor

Ignition

Magneto, CB/coil
Starting Kick

Max Power

 11 hp /  8.1 kW @ 8500rpm

Max Torque

 10.1 Nm /  1.03 kgf-m @ 700rpm
Clutch Wet multiplate

Transmission

5 Speed
Final Drive Chain

Front Suspension

Telescopic forks

Rear Suspension

Dual shocks

Front Brakes

Drum

Rear Brakes

Drum

Front Tyre

2.75-18

Rear Tyre

3.00-18
Dimensions Length  1945 mm / 76.5 in
Width      730 mm / 28.7 in
Height   1045 mm / 41.1 in
Wheelbase 1240 mm / 48.8 in
Seat Height 775 mm / 30.5 in

Dry Weight

91 kg / 200.6 lbs

Fuel Capacity

10 Litres / 2.6 US gal
.
.
