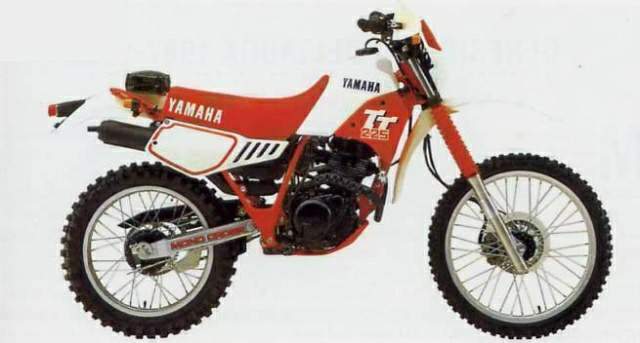

Yamaha TT 225

.

Make Model

Yamaha TT 225

Year

1986 - 88

Engine

Four stroke, single cylinder, SOHC, 2 valve

Capacity

223 cc / 13.6 cu-in
Bore x Stroke 70 x 58 mm
Cooling System Air cooled
Compression Ratio 9.5:

Induction

26mm Teikei carburetor

Ignition

CDI
Starting Kick

Max Power

Max Torque

Transmission

6 Speed
Final Drive Chain

Front Suspension

Telescopic forks
Front Wheel Travel 239 mm / 9.4 in

Rear Suspension

Link Type single shock
Rear Wheel Travel 221 mm / 8.7 in

Front Brakes

Single 229mm disc

Rear Brakes

Drum

Front Tyre

80/100-21

Rear Tyre

100/100-18
Wheelbase 1374 mm / 54.1 in
Seat Height 885 mm / 24.8 in
Ground Clearance 305 mm / 12.0 in

Dry Weight

100.7 kg / 222 lbs

Fuel Capacity

8 Litres / 2.1 US gal
