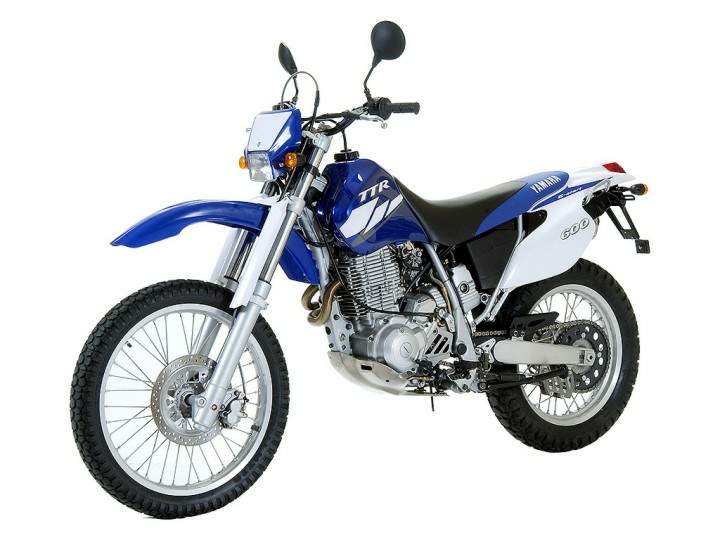

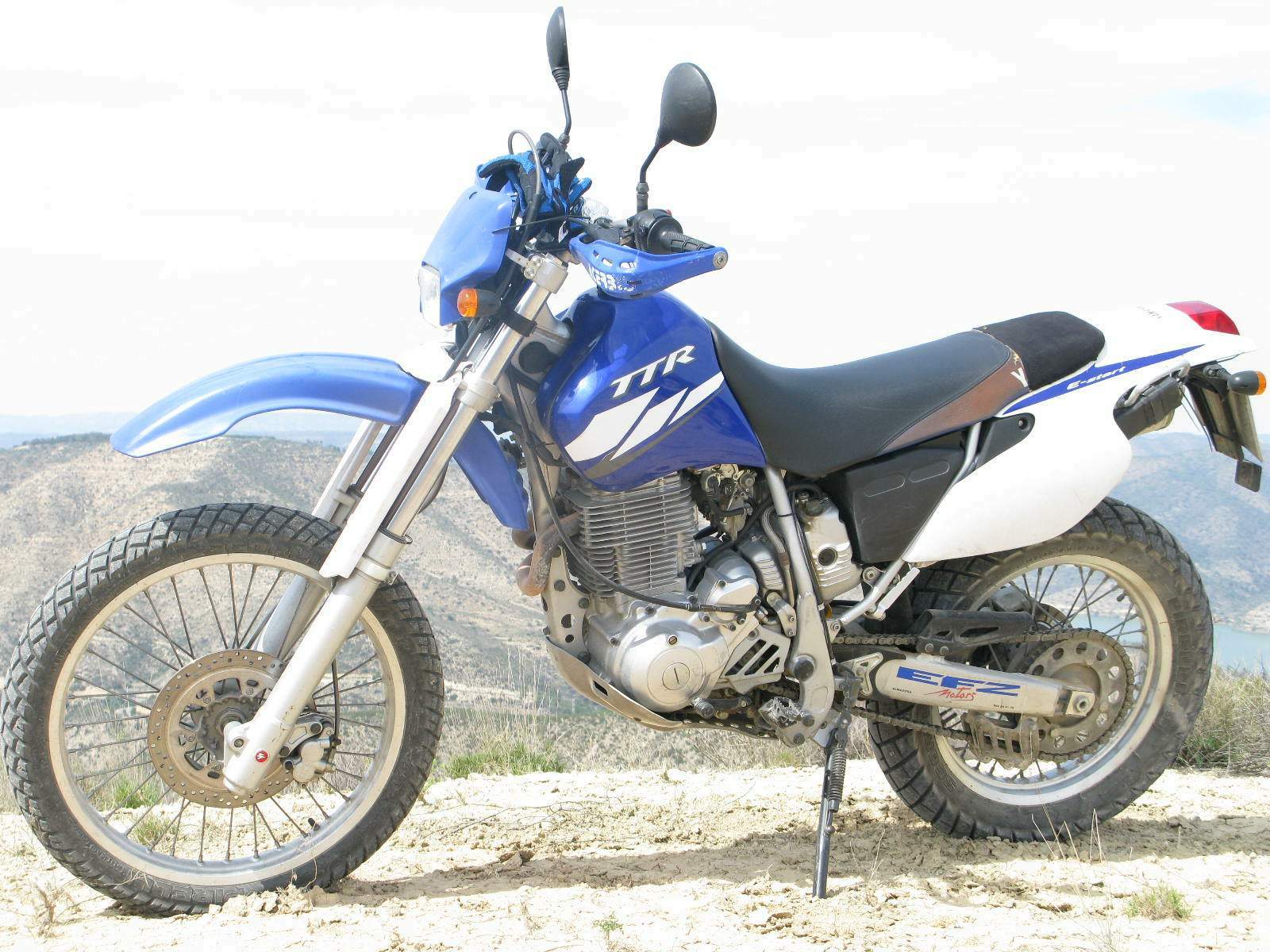

2004 Yamaha TT 600RE

Make Model	Yamaha TT 600RE
Year	2004 - 05
Engine	Four stroke, single cylinder, SOHC, 4 Valve
Capacity	595 cc / 36.5 cu-in
Bore x Stroke	95 x 84 mm
Cooling System	Air cooled
Compression Ratio	8.5 :1
Lubrication	Dry sump
Induction	Teikei Y36PV carburetor26mm Dual stage Teikei Y26PV carburetor
Ignition	CDI
Starting	Electric
Max Power	42 hp / 31.5 kW @ 6500 rpm
Max Torque	50 Nm / 36.8 lb-ft @ 5000 rpm
Frame	Steel
Front Suspension	Telescopic forks
Front Wheel Travel	230 mm / 9.0 in
Rear Suspension	Alloy swinging arm single shock with adjustable dampers
Rear Wheel Travel	230 mm / 9.0 in
Front Brakes	Single 267mm discs 2 piston calipers
Rear Brakes	Single 220mm disc 1-piston caliper
Front Tyre	90/90-21
Rear Tyre	130/90-18
Rake	27°
Trail	114 mm / 4.4 in
Dimensions	Length 2225 mm / 87.5 in Width 865 mm / 34.0 in Heigth 1195 mm / 48720in
Wheelbase	1480 mm / 58.2 in
Seat Height	945 mm / 37.2 in
Seat Higher	890 mm
Ground Clearance	280 mm / 11.0 in
Dry Weight	153 kg / 337 lbs
Fuel Capacity	10 Litres / 2.6 US gal
Consumption Average	19.3 km/lit
Standing ¼ Mile	14.3 sec
Top Speed	156.4 km/h
