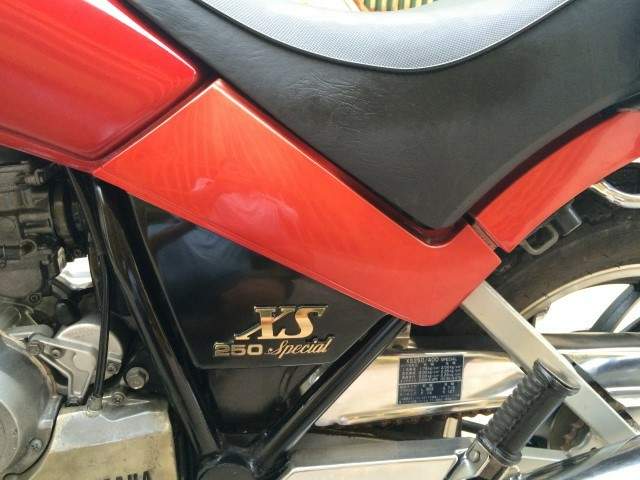

Yamaha XS 250 Special

Make Model	Yamaha XS 250 DOHC Special
Year	1982 -
Engine	Four stroke, 180° parallel twin, DOHC, 2 valves per cylinder
Capacity	248 cc / 15.2 cu-in
Bore x Stroke	56 х 50.6 mm
Cooling System	Air cooled
Compression Ratio	10.1:1
Lubrication	Wet sump
Induction	2x 32mm Mikuni carburetors
Ignition	Coil and cb
Starting	Kick
Max Power	30 hp / 22.3 kW @ 10000 rpm
Max Torque	2.2 kgf-m / 15.2 lb-ft @ 8500 rpm
Clutch	Wet multiplate with seven friction and six thrust plates
Transmission	6 Speed
Final Drive	Chain
Frame	Welded tubular. Double cradle with single downtube
Front Suspension	Telescopic forks
Rear Suspension	Dual shocks, swing arm, 5-position preload adjustable
Front Brakes	Single 267mm disc
Rear Brakes	177mm Drum
Front Tyre	3.00-18
Rear Tyre	4.10-16
Rake	27°
Trail	87 mm / 3.43 in
Wheelbase	1375 mm / 54.1 in
Seat Height	770 mm / 30.3 in
Dry Weight	169 kg / 373 lbs
Fuel Capacity	14 Litres / 3.7 US gal
