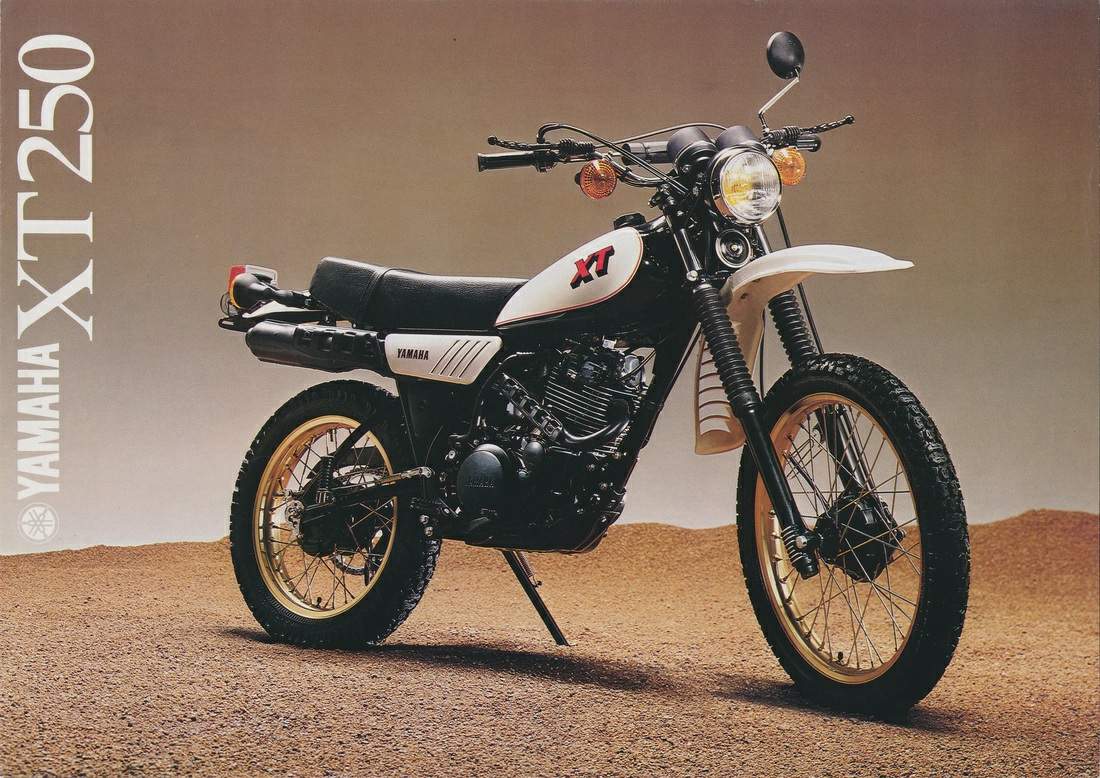

Yamaha XT 250

.

Make Model

Yamaha XT 250

Year

1980

Engine

Four stroke, single cylinder, SOHC, 2 valve

Capacity

249 cc / 15.2 cu-in
Bore x Stroke 75 х 56.5 mm
Cooling System Air cooled
Compression Ratio 9.2:1
Lubrication Wet sump

Induction

Single 28mm Mikuni caruretor

Ignition

CDI
Starting Kick

Max Power

22 hp / 16.1 kW @ 8000 rpm

Max Torque

2 kgf-m / 14.4 lb-ft @ 6500 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Leading axle, coil spring forks

Rear Suspension

Swing arm single Kayaba shock

Front Brakes

130mm Drum

Rear Brakes

130mm Drum

Front Tyre

3.00-21

Rear Tyre

4.60-17
Wheelbase 1395 mm / 54.9 in
Seat Height 840 mm / 33.0 in
Ground Clearance 255 mm / 10.0 in

Dry Weight

114 kg / 251.3 lbs

Fuel Capacity

8 Litres / 2.1 US gal

Consumption Average

70 mpg

Braking 60 - 0 / 100 - 0

- / 41.1 m

Standing ¼ Mile

16.4 sec / 74.5 mph 120 km/h

Top Speed

128.7 km/h / 80 mph
.
