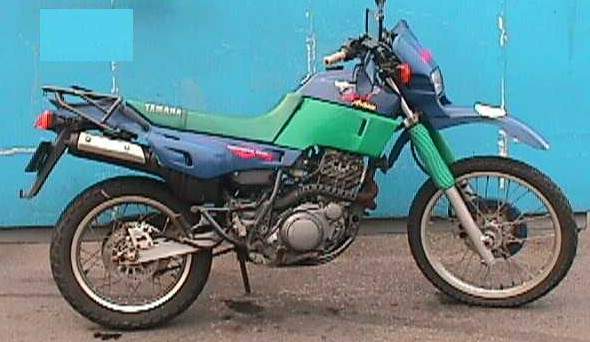

Yamaha XT 400E Artesia

.

Make Model

Yamaha XT 400 Artesia

Year

1992

Engine

Four stroke, single cylinder, SOHC, 4 valve

Capacity

399 cc / 24.3 cu-in
Bore x Stroke 87 х 67.2 mm
Cooling System Air cooled
Compression Ratio 8.8:1

Induction

Caburetor

Ignition

CDI
Starting Electric

Max Power

31 hp / 22 Kw @ 7000 rpm

Max Torque

3.2-kg-m / 31.0 Nm @6000 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Telescopic forks

Rear Suspension

Mono-cross

Front Brakes

Drum

Rear Brakes

Drum

Front Tyre

3.00-21

Rear Tyre

4.60-18
Dimensions Length 2260 mm / 88.9 in
Width    860 mm / 33.8 in
Height 1180 mm / 46.4 in
Wheelbase 1405 mm / 55.3 in
Ground Clearance 250 mm / 9.8 in

Dry Weight

136 kg / 300 lbs

Fuel Capacity

11.4 Litres / 3.0 US gal
.
