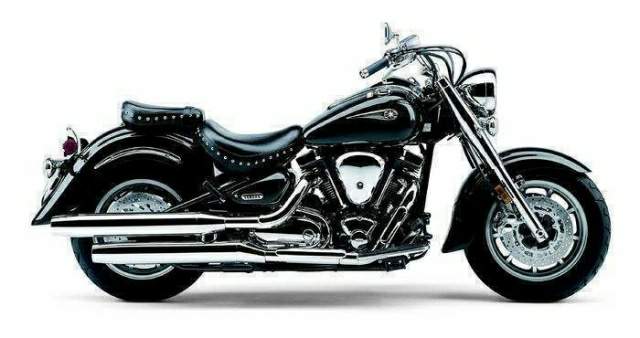

Yamaha XV 1600A Road Star / Wild Star Silverado Midnight

.

Make Model

Yamaha XV 1600A Road Star / Wild Star Silverado Midnight

Year

2001 - 05

Engine

Four stroke, 48° V-Twin cylinder, OHV pushrod, 4 valves per cylinder

Capacity

1602 cc / 97.6 cu-in
Bore x Stroke 95 x 113 mm
Cooling System Air cooled
Compression Ratio 8.3:1
Lubrication Semi-dry sump

Induction

40mm Mikuni Constant-Velocity with TPS carburetor

Ignition

TCI
Starting Electric

Max Power

62.6 hp / 46.7 kW @ 4000 rpm

Max Torque

134 Nm / 98.8 lb-ft @ 2250 rpm
Clutch Wet multiplate

Transmission

5 Speed
Final Drive Belt

Front Suspension

Telescopic forks
Front Wheel Travel 140 mm / 5.5 in

Rear Suspension

Swinging link
Rear Wheel Travel 110 mm / 3.4 in

Front Brakes

2x 298 mm discs, 2 piston calipers

Rear Brakes

Single 320 mm disc, 2 piston calipers

Front Tyre

130/90-16

Rear Tyre

150/80-15
Dimensions Length 2500 mm / 98.4 in
Width   1100 mm / 43 in
Height 1140 mm / 45 in
Wheelbase 1685 mm / 66.3 in
Seat Height 710 mm / 28 in
Wet Weight 335 kg / 740 lbs

Fuel Capacity

20 Litres / 5.28 US gal

Review

Motorcycle Cruiser
.

The Road Star Silverado rumbled onto the scene just eight years ago, and it's already legendary for its sheer size, retro styling and sheer power.

A massive 1,670cc V-twin delivers impressive torque and the kind of cruising performance you only get from a Yamaha. And with wide, rubber-mounted handlebars, a touring seat geared to all-day riding, and roomy soft saddlebags, you're ready for the long-haul. Pure power. Uncompromised comfort. And it's dangerously close to being too damn beautiful to ride. Simply legendary.

Engine:

1,670cc, air-cooled, long-stroke, OHV, 8-valve, 48° V-twin powerplant pumps out lots of low-rpm torque for unparalleled acceleration and cruising performance.

Stylish, Warrior-based, single-piece cylinder head, cylinder head cover and head gasket

4 valves per cylinder provide optimum breathing efficiency while 2 spark plugs per cylinder ensure complete combustion for maximum power output.

Hydraulic valve lifters driven by twin crankcase- mounted camshafts deliver exceptional performance and reduce maintenance needs.

Twin crankcase-mounted camshafts activate the valves via hydraulic valve lifters and pushrods. Special cam profiles provide strong, low to mid-range torque while the hydraulic valve lifters reduce maintenance.

Traditional pushrod valve actuation keeps overall engine height down for a lower centre of gravity.

Large-diameter, forged pistons offer great durability.

Ceramic composite-plated cylinders provide uniform heat dissipation, reduce weight, reduce friction and increase cylinder service life.

Cooling fin thickness is optimized for maximum heat dissipation, thereby eliminating the need for liquid cooling, maintaining that traditional clean, air-cooled engine appearance.

Air Induction System (A.I.S.) reduces exhaust emissions (CO + HC).

Single Mikuni BSR 40mm CV carburetor with throttle position sensor features an accelerator pump, carburetor heater and classic side-mounted air filter to ensure great throttle response and optimum power throughout the rev range. The throttle position sensor is linked to the CDI and supplies info about throttle opening so the CDI can adjust ignition timing for optimum engine performance at all rpms.

High-capacity air intake system with paper type air filter provides maximum breathing for optimum performance.

Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds.

Clean, quiet belt drive system is extremely low- maintenance and simplifies customization. Special narrow design drive belt and sprockets (front and rear) provide lightweight performance and exceptional durability.

Dry sump lubrication system with handy, spin-on oil filter creates a lower centre of gravity by helping reduce overall engine height.

Large, heavyweight crankshaft assembly delivers superior, low-rpm torque and that incredible V-twin "pulse" feel.

All new, 2-piece heel-and-toe shifter adds versatility and enhances the overall cruising experience. This new 2-piece design allows the rider to individually adjust front and rear portions to suit foot size or remove the rear section if not desired.

Electric starting system features solenoid-activated auto-decompressor for easy, no-hassle starting.

Classic, 2-into-2 exhaust system features beefy, staggered dual shotgun pipes that produce a soulful V-twin exhaust tune. Muffler replacement is fast and simple, if desired.

SUSPENSION:

Solid-mounted engine housed in a specially designed gusset-less, double-cradle frame features a stylish 32° rake.

Long 1,685mm (66.3") wheelbase creates a long and low retro profile, great rider comfort and solid, stable handling.

Spacious ergonomics provide ample legroom, which maximizes rider comfort.

43mm front forks provide 140mm (5.5") of wheel travel to smooth out the ride. The large-diameter, upper fork shrouds, and lower fork legs are finished in beautiful brushed aluminum.

Spring preload-adjustable, single-shock, rear link suspension lowers centre of gravity for better handling and a plush ride. Rear wheel travel is 110mm (4.3").

Rear shock is horizontally mounted under the engine and tucked out of sight, providing that classic, hardtail look.

298mm front disc brakes feature ultra rigid, monoblock, 4-piston calipers with chrome "buttons" accenting the outer piston covers. The dual disc brake set-up eliminates the unsettling twisting effect of a single disc set-up found on most cruisers.

320mm rear disc brake with 4-piston caliper provides excellent stopping power and feel.

"Police-style" windshield offers great wind and weather protection while proudly displaying the Silverado insignia. This windshield offers two positions of height adjustability, and for those riders who prefer a "convertible", the windshield can be quickly removed.

Separate studded front rider seat offers great rider comfort. The passenger seat is also studded.

Studded passenger backrest provides that extra peace of mind for your special companion.

Studded, soft leather saddlebags with quick-release buckles offer ample storage for casual touring trips.

Full-size, floating-type rider floorboards are roomy and comfortably positioned while also helping reduce vibration.

All new passenger floorboards provide roomy comfort and reduce vibration.

Wide, swept-back, 1"-diameter handlebars reduce vibration on the rider's hands thanks to being rubber mounted.

Separate sub frame positioned under deeply valanced rear fender allows easy customization with numerous accessible mounting points.

Deeply valanced steel fenders combine timeless styling with rugged durability and easy customization.

Nine-spoke, cast aluminum wheels not only reduce weight and maintenance (no spokes to tighten), but they also add a sportier styling image to the Silverado. Classic whitewall, tubeless, bias ply tires are standard equipment.

20-litre fuel tank provides an exceptional cruising range. Fuel tank seam is hidden for that clean, custom look.

New, beautiful braided steel throttle and clutch cables enhance that the Road Star's stylish custom look and image.

Ultra-thin, tank-mounted speedometer features a stylish design with raised 3D marks to highlight the speed graduations. Instrumentation includes odometer, dual tripmeters, clock and fuel gauge plus a range of indicator lights.

Eye-catching, diamond-shaped, LED rear taillight with white lens looks like it is straight off a fully customized machine. The LED design not only provides a bright light, but also uses less power.

Stylish turn signals with custom looking clear lenses are self canceling

Re-designed front turn signal mounting bracket improves appearance

Rear turn signal mounting bracket is beautifully chromed and features a built-in license plate light. It is small details like this that separate the Star series of cruisers from the rest of the crowd.

Value added passing lamps not only enhance styling, but also provide additional illumination.


Details:

Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.

Extra wide front brake and clutch levers provide a quality feel.

Stylish 3D, fuel tank-mounted Road Star logo

Seat and steering locks are integrated into the main ignition switch for extra convenience.

Handy, dual under seat helmet holders

Powerful, 12V 60/55-watt, halogen headlight maximizes nighttime visibility.

Low-maintenance, sealed battery ensures fuss-free, dependable starting.

Electric fuel pump
