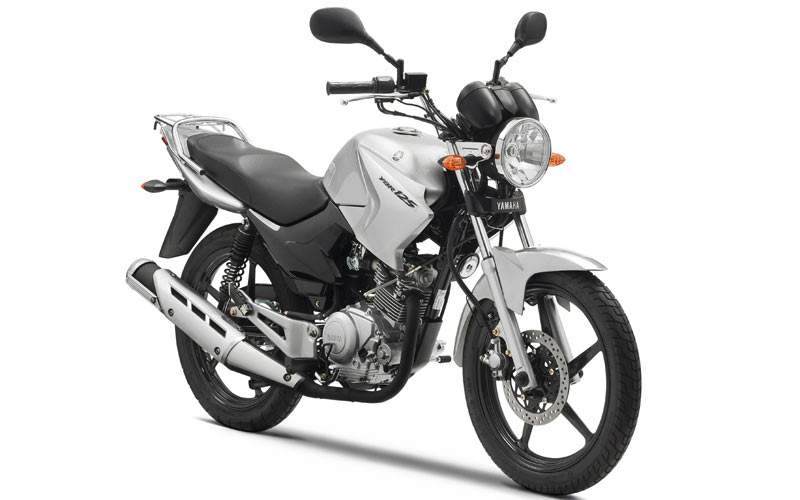

Yamaha YBR 125

Make Model	Yamaha YBR 125
Year	2010 -
Engine	Four stroke, single cylinder, SOHC, 2 valves
Capacity	124 cc / 7.6 cu-in
Bore x Stroke	54 x 54 mm
Cooling System	Air cooled
Compression Ratio	10.0:1
Induction	Fuel infection
Ignition	CDI
Starting	Electric & kick
Max Power	10.1 hp / 7.4 kW @ 7800 rrpm
Max Torque	10 Nm @ 7400 rpm
Transmission	5 Speed
Final Drive	Chain
Frame	Steel double cradle
Front Suspension	Telescopic forks
Front Wheel Travel	120 mm / 4.7 in
Rear Suspension	Bottom link swingarm
Rear Wheel Travel	105 mm / 4.1 in
Front Brakes	Single 245mm disc
Rear Brakes	Drum
Front Tyre	90/90-M21
Rear Tyre	90/90-M18
Rake	26°
Trail	90 mm / 3.5 in
Wheelbase	1290 mm / 51 in
Seat Height	780 mm / 31.0 in
Wet Weight	106 kg / 234 lbs
Fuel Capacity	12 Litres / 3.4 US gal

The Yamaha YBR125 learner bike gets a restyled fuel tank cover, exhaust shroud, grab rail and instruments.

Technically, it’s still the same simple air-cooled single cylinder commuter machine as the 2009 model.

Yamaha says: “Featuring an economical and reliable air-cooled engine housed in a compact, easy-handling chassis, the YBR125 has become one of the most successful lightweights ever produced by Yamaha.

“Its winning combination of ease of use, attractive styling and remarkable economy has established the YBR125 as a firm favourite with commuters all over Europe.

"In fact, since its launch in 2005, the Yamaha YBR125 has become one of the most successful models in the 125cc category, with over 75,000 units sold.

“For 2010 Yamaha have concentrated on creating an even more attractive and comfortable package with a number of changes to the bodywork and chassis.

“A new fuel tank cover gives this attractive 125 a more muscular grown-up look, as well as offering additional protection to the bike’s fuel tank.

"There’s also a new more aerodynamic analogue instrument panel with an integrated RPM meter located above the headlight assembly – and the refreshed styling for 2010 is completed with a redesigned exhaust muffler.

“Passengers will also appreciate the ergonomic design of the redesigned passenger grab handle, which provides a secure hand hold when riding two-up.”
