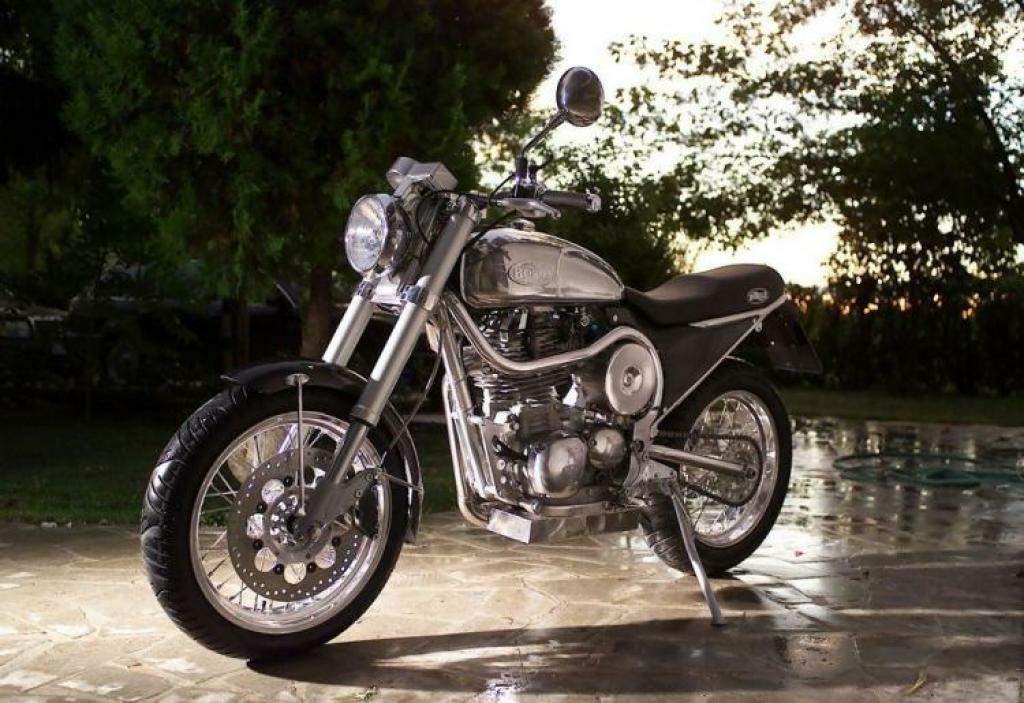

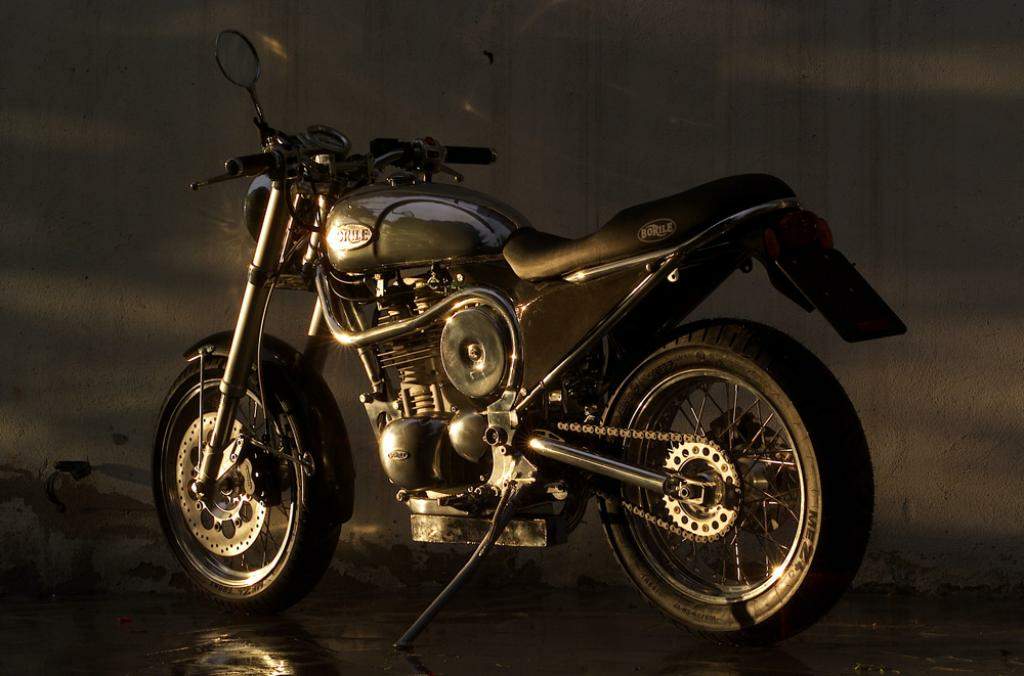

Borile B 500CR Caf Racer







Make Model.

Borile B 500CR Caf Racer

Year

2005

Engine

Four stroke, single cylinder, SOHC, 4-valves

Capacity

498 cc / 30.4 cu in
Bore x Stroke 87 x 85 mm
Compression Ratio 10.3:1
Cooling System Air cooled
Lubrication Via pump

Induction

Dell'Orto PHSB 36 carburetor

Ignition

Electronic

Starting

Kick

Clutch

Multi discs in oil bath

Transmission

5 Speed

Final Drive

Chain
Frame Split cradle frame of round tubes in 7020 light alloy

Rake

26.5

Trail

146 mm / 5.7 in

Front Suspension

Ceriani upside down fork 41 mm

Front Wheel Travel

145 mm  / 5.7 in

Rear Suspension

WP mono shock with no levers (PDS)

Rear Wheel Travel

145 mm / 5.7 in

Front Brakes

Single 315 mm disc

Rear Brakes

Single 220 mm disc

Wheels

Wire wheels with light alloy rims

Front Wheel

3.5 x 17"

Rear Wheel

4.5 x 17"

Front Tyre

120/70ZR17

Rear Tyre

150/60ZR17

Dimensions

Length: 1990 mm / 78.3 in

Width:     720 mm / 28.3 in

Height:  1120 mm / 44.1 in

Wheelbase 1380 mm / 54.4 in
Ground Clearance 270 mm / 10.6 in
Seat Height 850 mm / 33.5 in

Dry Weight

117 kg / 257 lbs

Fuel Capacity

8.5 L / 2.2 US gal
