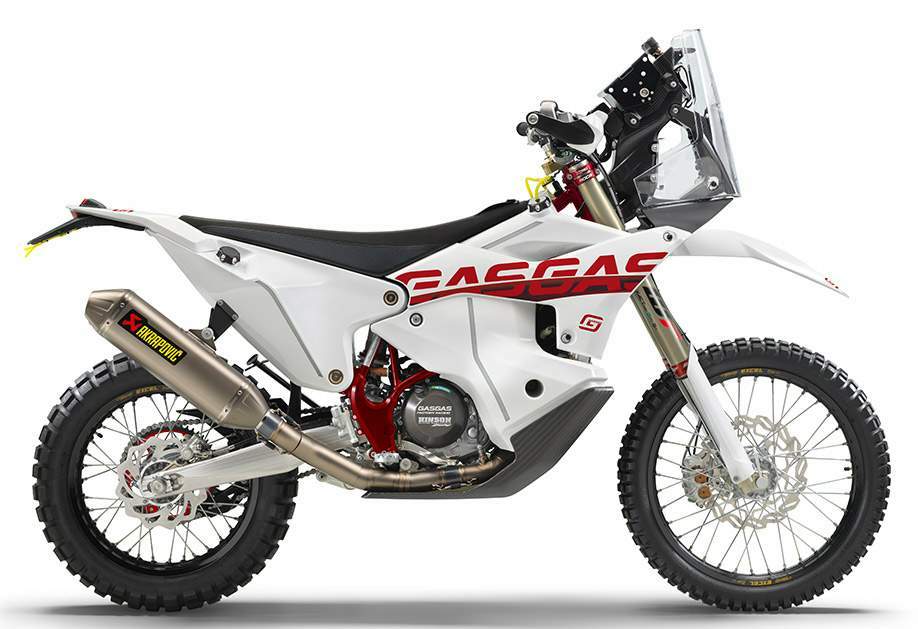

GASGAS RX 450F Replica

Purpose-built specifically for international rally racing, the GASGAS RX 450F REPLICA means business! Expertly assembled with many of the same components that can be found on Sam Sunderland's 2022 Dakar Rally winning machine, this limited-edition rally bike is the real deal. Looking to take your rally racing career to the next level? Then this bike's for you!

BODYWORK

Using feedback from Sam Sunderland during the design process, we’ve created bodywork fit for a champ! Slim, and with ergonomics that ensure complete freedom of movement for reduced fatigue, essential rider-bike contact points are in all the right places allowing all riders to grip the bike with minimal effort. And as the GASGAS RX 450F REPLICA is designed specifically for racing, there’s a super-light carbon fiber navigation tower behind the front fairing, to help reduce neck strain at high speeds.

FRAME

High-tech, lightweight, and finished with an electronic red powder coating! Our steel-trellis frame is as good as it gets. Beautifully crafted from the best materials available - that's chromium molybdenum steel FYI - it offers a calculated amount of flex without sacrificing strength. Put simply, this frame does it all. Agile in the technical stuff and super stable at high speeds. It's confidence-inspiring to say the least!

SUBFRAME

Attached to the rear of the frame you'll find what can only be described as an engineering masterpiece - a subframe that doubles up as a 16-liter fuel tank!

SWINGARM

Engineered to flex just the right amount, the ultra-light and strong cast-aluminum swingarm works as one with the WP XACT PRO 7750 Shock for smooth suspension action and maximum traction! Connected to a linkage with the rising rate optimized, the whole rear end set-up resists bottoming for stable handling, especially at high speeds.

MOTOR

Based on the powerhouse 4-stroke motor from our MC 450F motocross bike, the GASGAS RX 450F REPLICA is definitely not short on performance! It's light, powerful, and reliable and with a little mapping change, rally specific power is delivered on tap! Inside the motor things are pretty special too. Knowing just how demanding rally racing is, we've strengthened the clutch and gearbox while the Pankl con-rod and piston combo delivers performance and unquestioned durability.

CYLINDER HEAD

Taken straight from the MC 45DF motor, the SOHC cylinder head has had the ports massaged to further improve performance. The single overhead camshaft activates four ultra-lightweight titanium valves via super strong rocker arms and for maximum durability, the intake rocker arm is finished with a low-friction Diamond Like Carbon (DLC] coating.

CYLINDER & PISTON

At the beating heart of the GASGAS RX 450F REPLICA is the CP bridged-box-type piston. Housed inside a lightweight aluminum cylinder, strong power is produced with minimal vibration. Just what you need when racing through soft, rolling sand dunes!

TRANSMISSION

Without question, a six-speed transmission with rally-specific gear ratios is one of the most important components in building a high performance rally bike. Strengthened to hand the rigors of racing, the GASGAS RX 450F REPLICA even has the very same gear ratios that Sam Sunderland used to win the 2022 Dakar Rally, so you know it's the real deal. A revised shifting mechanism ensures accurate gear changes up and down the box, which is made from high quality steel for guaranteed durability.

CRANKSHAFT

At the beating heart of the GASGAS RX 45DF REPLICA is the super strong and durable crankshaft. Not just helping to deliver incredible power when you need it most, but the design allows for extended service intervals of 100 hours! The crankshaft is complete with a plain big end bearing comprising of two force-fitted bearing shells for maximized reliability.

CRANKCASE

Strong, reliable, and lightweight. Our crankcases are made using a high-pressure die-cast production process to make them as robust as possible. They're also designed to position the internal components in such a way that handling is improved. Pretty clever, right?

EXHAUST SYSTEM

Roily-specific and designed to maximize performance from the motor, the Akrapovič exhaust system is fitted low on the bike for highspeed stability and nimble handling while navigating through slower, technical terrain. Made from high-grade titanium and short in length, overall weight is at an absolute minimum.

DDS CLUTCH

Long days on the bike call for a strong clutch that's up to the rigors of rally racing. Housed inside a robust CNC-machined steel bosket is Dampened Diaphragm Steel (DDS] clutch, which does away with traditional coil springs and instead, a single diaphragm steel pressure plate is used. There's also an integrated damping system that improves both traction and durability. Finishing off the entire assembly is a component straight from GASGAS Factory Racing - a Hinson clutch cover. It not only looks cool, but it's CNC-machined from aircraft-quality aluminum then hard-coated black to prevent wear from your boot.

BRAKES

Sometimes you'll need to slow down in a hurry and the Brembo brakes fitted to the GASGAS RX 450F REPLICA are the best in the business. Up front is a 300mm disc with a 240mm disc at the rear - both offer superior, controllable stopping power. This high-performance braking set-up instils confidence and allows you to push the pace through every stage.

BREMBO HYDRAULIC CLUTCH

No matter if it's hot or cold, the Brembo hydraulic clutch works without fail. Designed to self-adjust free play, and needing little to no maintenance, not to forget it's exactly the same as Sam Sunderland uses, this system is hands down the best in the business.

INTEGRATED COOLING SYSTEM AND RADIATORS

Keeping the bike cool and running at the perfect temperature is essential in rally. This is precisely why the cooling system on the GASGAS RX 45QF REPLICA flows coolant through the radiators and around the engine in the most efficient way possible, which allows you to get on the gas and attack those dunes with full confidence!

WHEELS

Strong wheels are essential when building a true rally racing bike. Capable of clocking up countless miles across rugged, desert terrain, this wheel set is as good as it gets. From the inside out, CNC-machined aluminum hubs are connected to black anodized, high-strength EXCEL rims with strong and light spokes and steel nipples for added durability. Without a doubt, the way these wheels are built is the most reliable construction going, as proved by 2022 Dakar Rally winner Sam Sunderland.

TIRES

As rally races often use public roads for liaisons, we've speced the GASGAS RX 45QF REPLICA with Continental TKC BD tires. Road legal and strong performers in the dirt, this tire combo is perfect for high-level rally racing.

ENGINE MANAGEMENT SYSTEM - EMS

One of the key components that really makes the GASGAS RX 450F REPLICA so awesome is the Engine Management System (EMS). One of its clever features is that it activates a tailored engine map for each gear, which means maximum power is transferred to the rear wheel in higher gears, while in low speed, low gear situations, a broader spread of power is delivered for total control when things get technical.

GasGas RX 450F Replica Features

• Super-light carbon fiber navigation tower
• WP XPLOR PRO 7548 front fork
• WP XPLOR PRO 7750 rear shock
• Red anodized X-TRIG triple clamps
• Red Supersprox Stealth rear sprocket
• Neken bars
• Akrapovič exhaust
• Oversize Brembo brakes
• GASGAS branded Hinson clutch cover
• Continental TKC 80 tires
• Black anodized EXCEL rims
• Optional sticker kit
