Honda CB 1300S Super Bol D'or

.

Make Model

Honda CB 1300S Super Bol D'or

Year

2005 - 2006

Engine

Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity

1284 cc / 78.3 cu-in
Bore x Stroke 78 x 67.2 mm
Cooling Sysstem Liquid cooled
Compression Ratio 9.6:1

Induction

PGM-FI fuel injection with 4 x 36mm throttle bodies

Ignition

Digital
Starting Electric

Max Power

114 hp / 83.2 kW @ 7500 rpm

Max Torque

117 Nm / 11.9 kg-fm / 86.3 ft-lb @ 6000 rpm
Clutch Wet multi-plate coil spring

Transmission

5 Speed
Final Drive Chain

Front Suspension

43mm cartridge style forks

Rear Suspension

Dual shocks with adjustable spring preload

Front Brakes

2x 310mm discs 4 piston calipers, ABS

Rear Brakes

Single 256mm  disc 1 piston caliper, ABS

Front Tyre

130/70 ZR17

Rear Tyre

190/60 ZR17
Rake 25.0°
Trail 99 mm / 3.9 in
Dimensions Length 2220 mm / 87 in
Width 790 mm / 31 in
Height 1120 mm / 44 in
Wheelbase 1510 mm / 59.4 in
Seat Height 790 mm / 31.1 in  adjustable, lowest setting.
Ground Clearance 125 mm / 4.9 in

Wet Weight

261.0 kg / 575.4 lbs

Fuel Capacity

21 Litres / 5.5 US gal

.

Mr Universal gets a fairing
By Guy Allen

It may not be the biggest selling segment in the market, but the big naked bike sector is still getting plenty of interest from manufacturers, which means the punter is being offered some good choices. Honda's latest entry is an updated version of CB1300, featuring a half fairing. In most other respects, it's the same animal as the unfaired version, which has been on the market for over a year...

'80s throwback

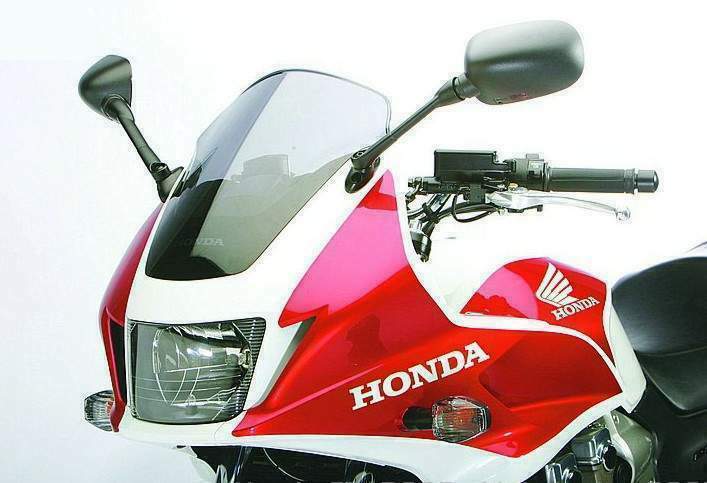

Stand back from it a little and you can't help but be reminded of the 'dinosaur' class of the mid 1980s, like the 900 and eventually 1100 Bol d'Or (or "rollerdoors" as they were affectionately known). However the fairing borrows most of its curves from the more exotic CB1100R, right down to the little air inlets in the snout. Middle-aged folk will recognise the styling immediately.

Underneath it all is a mix of modern and old thinking. The powerplant is a derivative of the CB1 naked that was on the market some years ago. It became a 1300 in a model we never sae here, and was then updated with the company's in-house injection for the bike we see on the showrooms today.



It claims a relatively modest 113 horses at 7500rpm and a healthy 117Nm of torque at 5500. Redline is at 8500. The stock power is ample for the job, though we know they respond well to a more open pipe, Power Commander and some careful dynotuning.

Typical of injected Hondas, starting is matter of stabbing the button and giving it 30 seconds or so to warm up enough to work its way off fast idle. It's an ultra-smooth powerplant, with strong bottom, spectacular midrange and a healthy enough top end. Mid-range punch is really where this powerplant is at, which can make it huge fun through a set of curves. We were getting around 16km/lt out of it, which means the 21 litre tank gives a 300-plus km range.


There are no complaints with the five-speed transmission. The shift is accurate and easy, while the hydraulic clutch is progressive.

Suspension has rebound and preload adjustment up front, with the protector blades for the 43mm sliders being a useful addition. The rear is conventional twin shock with piggy-back reservoirs also with preload and rebound options. Overall the package is on the soft side - set for more for comfort than race track. You can rebuild it for sharper handling, but frankly I'm not sure I'd bother until the originals started to get tired.

Steering is about medium speed and over all the machine comes across as a good-natured, predictable and friendly giant. A series of bumps on a tricky turn can overwhelm it, and really high speeds can start to see it getting a little untidy. In any case you get plenty of warning and if this really becomes an issue, you might want to consider a Fireblade.

Brakes are pretty stock fare - four-piston Nissins up front and a single-spot rear. There's good power and feel.

Rider and pillion accommodation is generally good. It's not huge on legroom for the rider, but that's partly down to the fact it has a low seat and generous cornering clearance - you can't have everything. Nevertheless at 190cm tall I found it okay, while the pillion has good space, is not big on legroom, but has a generous grab handle.

Good news
The good news is you don't have to be a giant to ride it. We found a 162cm (5'4") rider could manage it.

Instruments have a traditional analogue two-dial presentation, with a small digital screen that adds, fuel, clock, tripmeters and temp gauges. Bothy handlevers are adjustable. So overall the rider is catered for pretty well.

As a package it's a big easy bike to ride. Good around town and fun on sport roads without being particularly sharp. It's got no shortage of competition, but to our way of thinking is well priced at $15,390 plus ORC. For that you get the retro look wrapped over a modern mechanical package that is likely to be trouble-free for a very long time.

Source Bikepoint.com.au
