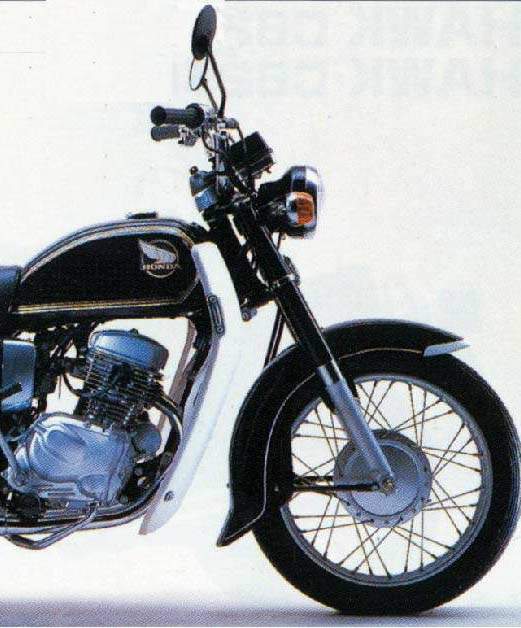

Honda CD 125

.

Make Model

Honda CD125T

Year

1968 - 78

Engine

Four stroke, twin cylinder, SOHC, 2 valve per cylinder

Capacity

125 cc / 7.6 cu-in
Bore x Stroke 43.2 x 43.2 mm
Cooling System Air cooled
Compression Ratio 9.4:1

Induction

Carburettor

Ignition

Capacitor discharge electronic ignition

Starting

Kick later models Electric & kick

Max Power

17 hp / 12.4 kW@ 9000 rpm

Max Torque

9.8 Nm / 7.2 lb-ft @ 6500 rpm
Clutch Wet multiplate

Transmission

4 Speed
Final Drive Chain

Front Suspension

Oil dampened telescopic, 115mm wheel travel.

Rear Suspension

Twin shock, oil dampened, 64mm wheel travel.

Front Brakes

140mm Drum

Rear Brakes

130mm Drum

Front Tyre

2.75 -17

Rear Tyre

3.00 -17

Dry Weight

122 kg / 269 lbs

Fuel Capacity

10.5 Litres / 2.8 US gal
.
