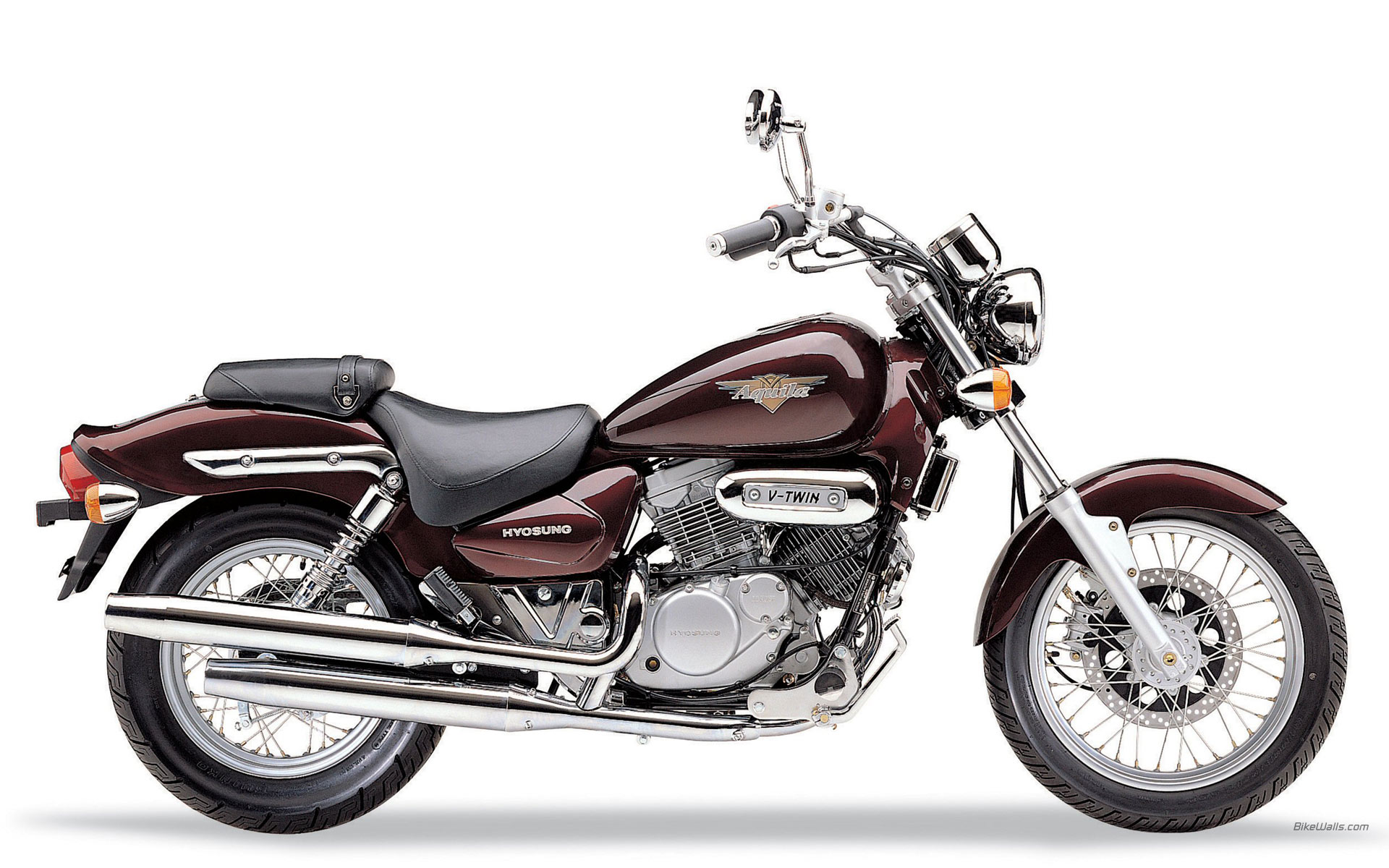

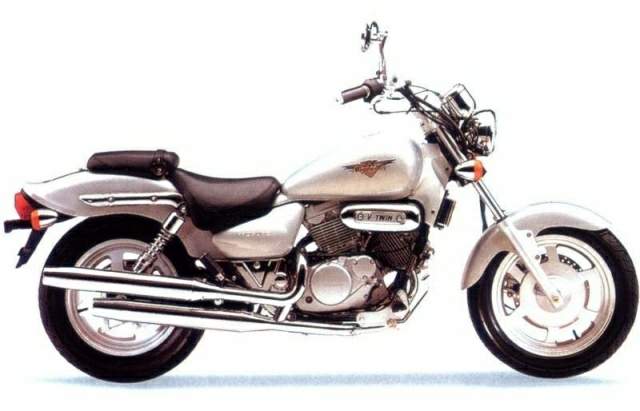

Hyosung GV 125 Aquila







Make Model

Hyosung GV 125 Aquila

Year

1998 - 06

Engine

Four stroke, 75°V twin, DOHC, 4 valve per cylinder

Capacity

124 cc / 7.6 cu-in
Bore x Stroke 44.0 x 41.0 mm
Cooling System Air/oil cooled
Compression Ratio 11.2:1

Induction

2x 26mm Mikuni BDS  carburetor

Ignition

CDI
Starting Electric

Max Power

14.2 hp / 10.7 kW @ 10300 rpm

Max Torque

9.7 Nm / 7.2 lb-ft @ 10000 rpm
Clutch Wet, Multiplate

Transmission

S peed
Final Drive Chain
Frame Steel, double pipe

Front Suspension

Telescopic forks
Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Swinging arm
Rear Wheel Travel 80 mm / 3.1 in

Front Brakes

Single 280mm disc

Rear Brakes

130mm Drum

Front Tyre

110/90 -16

Rear Tyre

130/90 -15
Seat Height 665 mm / 26.2 in

Dry Weight

138 kg

Fuel Capacity

14 Litres / 3.7 US gal
