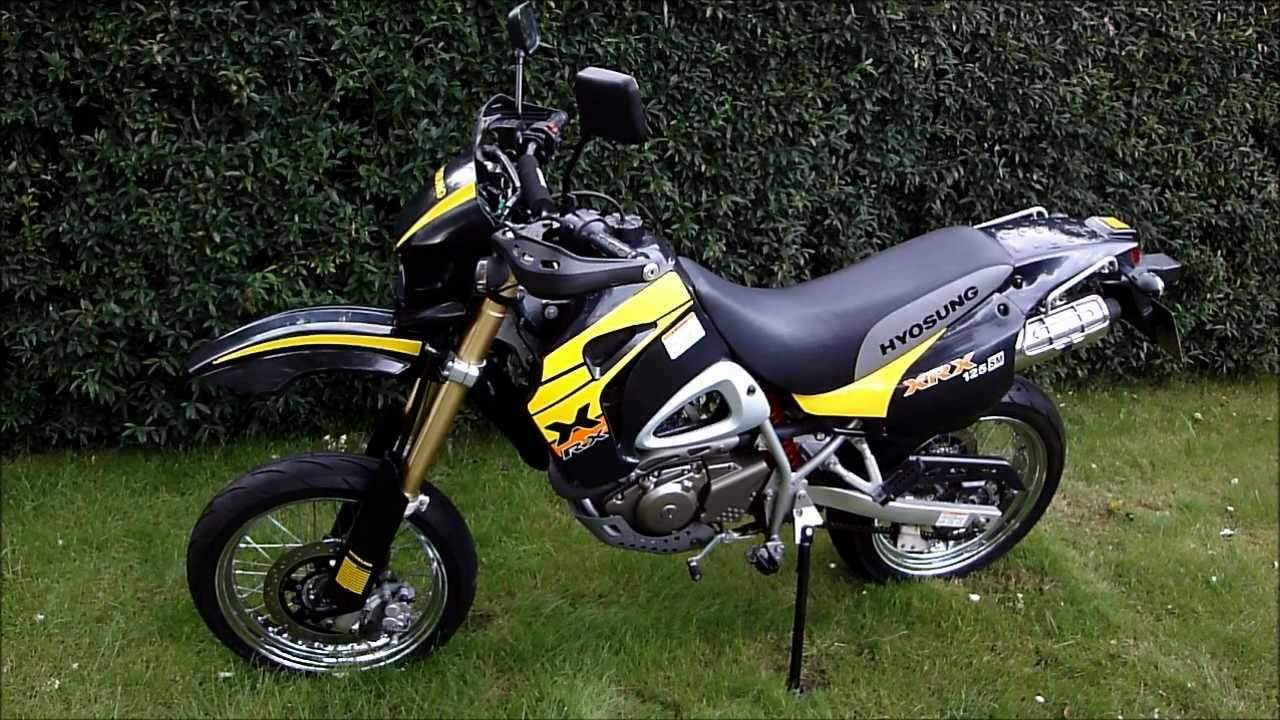

Hyosung XRX 125







Make Model

Hyosung XRX 125

Year

2005

Engine

Four stroke, single cylinder

Capacity

124 cc / 7.6 cu-in
Bore x Stroke 57 x 48.8 mm
Cooling System Air cooled
Compression Ratio 9.8;1

Induction

Sung Lim PD

Ignition

Electronic
Starting Electric & kick

Max Power

12 hp / 8.9 kW @ 8500 rpm

Max Torque

9.9 Nm / 7.3 lb-ft @ 7500 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Upside down telescopic fork, 250mm wheel travel

Rear Suspension

Swingarm, 200mm wheel travel

Front Brakes

Single 240mm disc

Rear Brakes

130mm drum

Front Tyre

2.75-21

Rear Tyre

4.10-18
Seat Height 850 mm (33.5 in

Dry Weight

127 kg / 280 lbs

Fuel Capacity

8 Litres / 2 US gal
