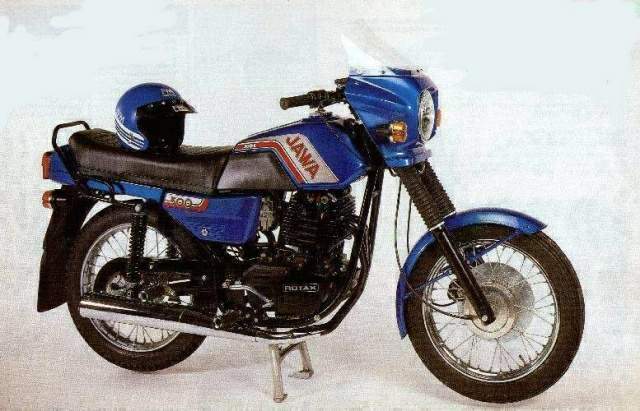

Jawa 500R









Make Model.

Jawa 500R

Year

1986

Engine

Four stroke, single cylinder. (Rotax motor)

Capacity

481.3 cc / 29.4 cu in
Bore x Stroke 89 x 77.4 mm
Compression Ratio 8.2:1
Cooling System Air cooled

Ignition

Electronic

Starting

Kick

Max Power

25.4 kW / 34 hp @ 5000 rpm

Max Torque

36 Nm / 3.7 kgf-m @ 5000 rpm

Transmission

5 Speed

Final Drive

Chain

Front Suspension

Hydraulic telescopic forks

Rear Suspension

Dual shock absorbers

Front Brakes

Single disc

Rear Brakes

Ĝ160 mm Drum

Front Tyre

3.25-18

Rear Tyre

3.50-18

Dry Weight

155 kg / 342 lbs

Fuel Capacity

17 L / 4.5 US gal
