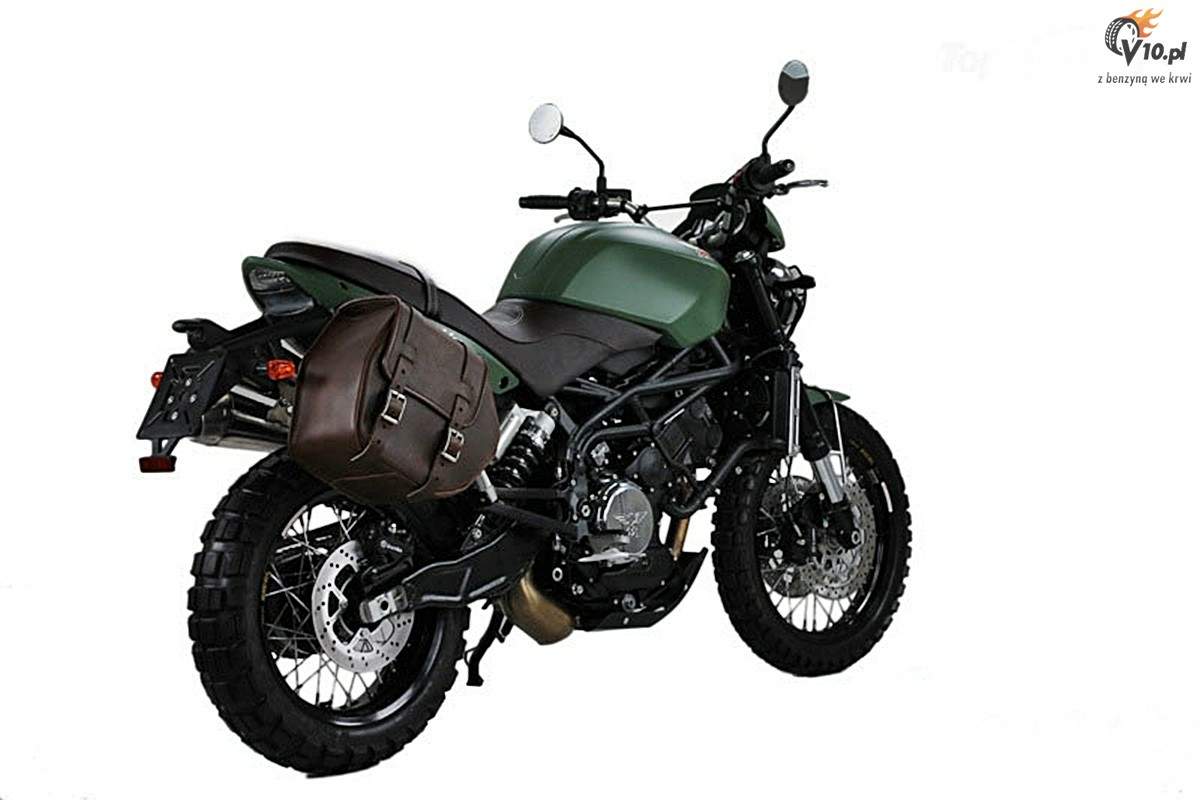

Moto Morini Scrambler 1200 Military Green Limited Editon







Make Model

Moto Morini Scrambler 1200 Military Green Limited Editon

Year

2013

Engine

Four stroke, 87° V longitudinal twin, DOHC, 4 valves per cylinder

Capacity

1187 cc / 72.5 cu-in
Bore x Stroke 107 x 66 mm
Cooling System Liquid cooled
Compression Ratio 12.5:1
Lubrication Forced with trochoidal pump

Induction

Magneti Marelli fuel injection 54 mm throttle body

Ignition

I.A.W. electronic
Starting Electric

Max Power

86 kW / 117 hp @ 8500 rpm

Max Torque

102 Nm / 10.4 kgf-m @ 6750 rpm
Clutch Multiplate clutch in oil bath with antis kipping and radial master cylinder.

Transmission

6 Speed
Final Drive Chain
Frame Verlicchi high strength steel tubular trellis frame

Front Suspension

Marzocchi upside down with 50mm stems
Front Wheel Travel 155 mm / 6.1 in

Rear Suspension

Single lateral shock, fully adjustable piggy back tank
Rear Wheel Travel 170 mm / 6.7 in

Front Brakes

2x 298mm discs 2 piston callipers

Rear Brakes

Single 255mm disc 2 piston caliper

Front Tyre

110/80 ZR 19

Rear Tyre

150/70 ZR 17
Dimensions Length 2180 mm / 85.8 in
Width  865 mm / 34.1 in
Wheelbase 1,500 mm / 59.1 in
Seat Height 840 mm / 33.1 in
Ground Clearance 162 mm / 6.4 in

Dry Weight

198 kg /  436 lbs

Fuel Capacity

18 Litres / 4.7 US gal

Standing ¼ Mile

11.6 sec

Top Speed

229.2 km/h

If there’s a motorcycle whose definition in any biker’s dictionary would denote a very personal concept, such as freedom, it would be the Scrambler: unadorned, eclectic, agile and easy to handle. A motorcycle that can manoeuvre any type of road, hence perfect for escaping the daily routine, the Scrambler was invented in the 1960s to interpret the thirst for freedom and independence of a generation. So many years down the road, it still maintains its original allure.

Moto Morini interprets the Scrambler in its own way and brings out a motorcycle with a hands-down sporty character. Designed on the foundation of the 9 ½ project, it has a calling for crossover use, which comes through in the 19” front wheel and the tread-blocked tyres. Its terrain can either be asphalt or the cobblestones of a town centre, or else the offroads of the countryside.

The aesthetic design by Marabese Design makes a direct reference to the glory years that generated the legend of the Scrambler, but proposes an absolutely modern motorbike with a both a simplicity and a care for details. Aesthetically speaking the main element is the spacious 21-litre tank, designed with roomy indents for the legs that make it more streamlined in the lower part. The front is strongly characterized by the round headlight placed under the small headlight fairing that protects the instrument panel and emphasizes its personality. The wide seat practically forms a single piece with the short, streamlined tail, an effect reinforced by the colour choices. The setup provides easy, intuitive riding so that instant fun and total comfort are assured.

This simply designed motorcycle leaves in view its technical barebones, exposing a trellis frame that conveys both solidity and light weight, reinforced in the lower part to house the lateral cantilever suspension with integrated piggy back reservoir. The aluminium swingarm with hydroformed arms with an ample section of the original design guarantees light weight and performance. The left side offers the view of the silencers with double tapered exhaust pipes, whereas the front features the Marzocchi fork with 50 mm legs. Particular focus has been dedicated to the ergonomics to guarantee the utmost comfort for the rider and passenger: high handlebar; comfortable, roomy seat; tank that fits the legs easily and a footpeg position ensuring a efficient riding position.

The choice of components has been intended to ensure a high level of quality and gathers some of the best names in Italian manufacturing: Verlicchi, Marzocchi, Paioli, Brembo, to cite the best known, all who contribute to the Scrambler’s identity as an Italian motorcycle in keeping both with tradition and the more recent design decisions of the Morini brand.

The Scrambler is equipped with the Bialbero CorsaCorta 1187 cc twin cylinder designed by Franco Lambertini, a powerful engine which develops 117 hp at 8500 rpm. The engine’s layout is compact, strongly characterized by the 87° V layout of the cylinders and by the innovative solution of the integral casing offering diverse advantages over traditional solutions, primarily in the stiffness of the whole that makes the engine a load-bearing element. The engine has been optimized on the basis of the 9 ½ project, which features specific thermodynamic characteristics.

The most significant design decisions regard the reduction in the intake scoops, the diameter of the valves, the engine timing and the increase in the compression ratio to improve the progression at low rpm and reduce fuel consumption. The result is a powerful engine with 86 kW with 117 hp at 8500 rpm, with a high torque of 102 Nm with 10.4 Kgm at 6700 rpm well distributed over the entire rpm range.

And while maintaining an unquestionably sporty character, the engine weds well with the features of the vehicle, enhancing its rideability rather than striving for extreme performance. The exhaust system features a double lateral silencer with tapered exhaust pipes. The vehicle complies with Euro 3 emissions standards.

Chassis.

Core of the chassis is the trellis frame in high-strength tubular steel by Verlicchi based on an exclusive design by Moto Morini. The structure is extremely solid and has been further stiffened in the rear part of the subframe, a stiffness required for adopting the solution of the cantilever lateral suspension.
Swingarm and suspension.

The function of the chassis is aided by top-notch suspensions. At front is a mighty Marzocchi Magnum with 50 mm diameter legs, with exclusive lightweight plates designed in cast light alloy. The rear is characterized by a weighty doublesided swingarm, a result of hydroforming, a new technology based on the deforming capacity of water power and that allows the production of non-welded pieces. The swingarm built with this technology offers advantages in terms of weight and structural stiffness. It is aided by a Paioli lateral suspension with piggy back reservoir fully adjustable in rebound and compression.
Rims.

The Excel spoked rims with aluminium alloy channel permit mounting of latest generation tubeless tyres with tread blocks. Rims are 19” at front and 17” at rear.
Braking system.

The Brembo systems deliver powerful yet progressive deceleration, granting the rider the sensitivity needed for optimum handling of this difficult aspect of the riding experience. The pair of semi-floating discs measuring 320 mm at front is operated by axial callipers with four pistons with differentiated diameter: it is a solution stemming from a precise technical requirement — to provide safety through great modulating capacity and sheer power.
Tank.

The two-toned fuel tank is in shock resistant nylon; it has a 21-litre capacity and can be raised to access the large filter box underneath.
Exhaust system.

The exhaust system with double lateral silencer gives the bike a very marked identity, while not penalizing the powerful sound of the Bialbero CorsaCorta twin cylinder. Its environmental impact is low, allowing emissions to fall under the limits of the Euro 3 standards.

Accessories.

MOTO MORINI COMPETIZIONE, the Moto Morini catalogue of accessories, devotes to the Scrambler a range of products to make the ride more comfortable:
Windshield kit for better protection at all speeds without compromising stability;
Expandable side panniers in tough fabric. Different sizes, the largest expands enough to hold a full-face helmet and has a capacity of 25 Litres
; the second 15 Litres
.
Tank bag complete with handle for use as luggage and with straps to turn it into a backpack, 26 litre capacity;

Rear case in expandable tough fabric; 15 litre capacity
Tank cover embroidered with the Moto Morini logo;
Passenger handles, a sure grip when travelling in two.
