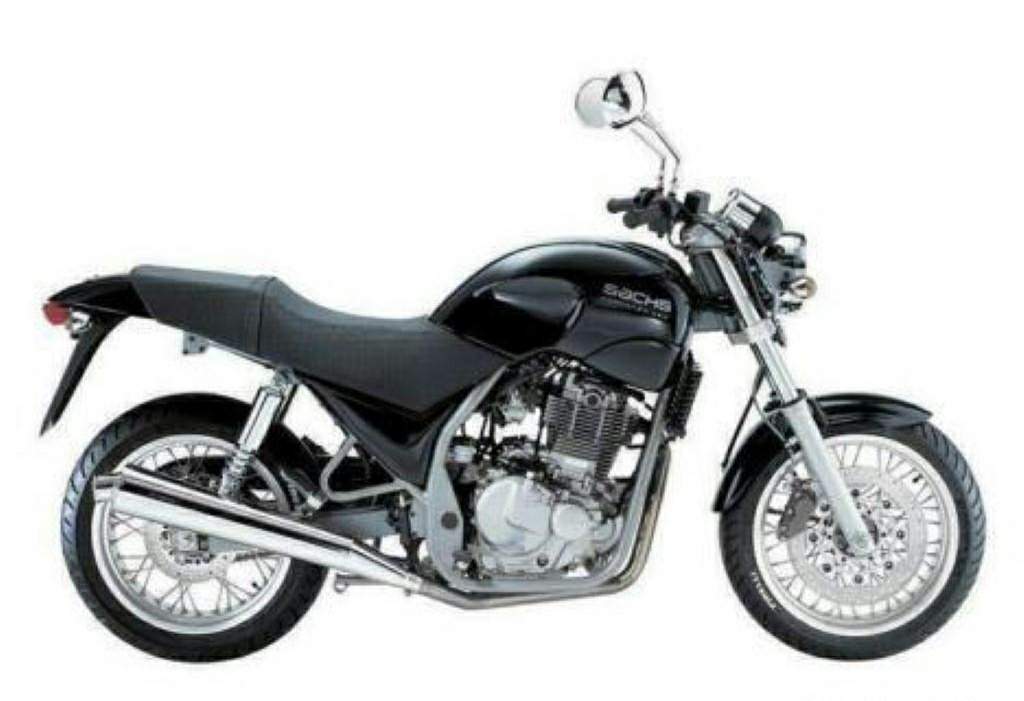

Sachs Big Roadster V3.8







Make Model

Sachs Big Roadster V3.8

Year

2000

Engine

Four stroke, V-twin, SOHC

Capacity

805 cc / 49.1 cu-in
Bore x Stroke 83 x 74.4 mm
Cooling System Liquid cooled
Compression Ratio 10.0:1

Induction

2x 36mm Mikuni carburetors
Lubrication Wet sump

Ignition

Digital
Starting Electric

Max power

57 hp / 41.6 kW @ 6000rpm

Max Torque

71 Nm / 52.4 lb-ft @ 4000rpm
Clutch Wet, cable operated

Transmission

5 Speed
Final Drive Shaft
Frame Steel tubular type

Front Suspension

40mm upside down hydraulic fork

Rear Suspension

Twin telescopic shock

Front Brakes

2x 320mm discs  4 piston calipers

Rear Brakes

180mm drum

Front Tyre

120/70 ZR17

Rear Tyre

160/60 ZR17
Wheelbase 1480 mm / 58.3 in
Seat Height 770 mm / 30.3 in

Dry Weight

209 Kg / 460.8 lbs

Fuel Capacity

17 Litres / 4.5 US gal
