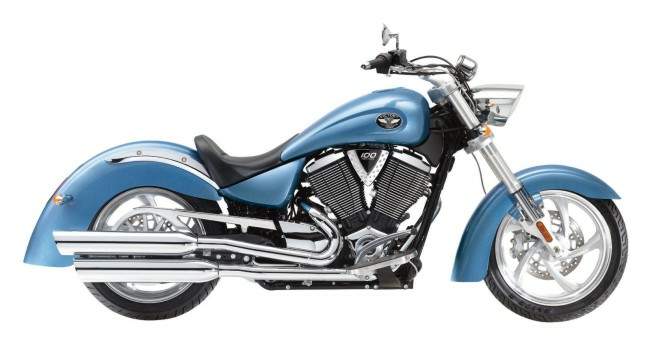

Victory Kingpin Low







Make Model

Victory Kingpin Low

Year

2009 - 10

Engine

Four stroke, 50° V twin SOHC, 4 valves per cylinder

Capacity

1634 cc / 100 cu-in
Bore x Stroke 101 x 102 mm
Cooling System Air / oil
Compression Ratio 9.8:1

Induction

Electronic Fuel Injection with 44mm throttle bodies

Starting

Electric
Battery 12 volts / 18 amp hours
Clutch Wet, multi-plate

Transmission

6 Speed
Final Drive Carbon Fiber Reinforced Belt

Front Suspension

43mm Inverted cartridge telescopic fork
Front Wheel Travel 130 mm / 5.1 in

Rear Suspension

Single, mono-tube gas forged and cast aluminum w/ rising-rate linkage
Rear Wheel Travel 100 mm / 3.9 in

Front Brakes

Single 300mm floating rotor 4 piston caliper

Rear Brakes

Single 300mm floating rotor 2 piston caliper

Front Tyre

130/70 -21

Rear Tyre

180/55 B18
Seat Height 640 mm  /  25.1 in
GVWR 549 kg / 1210 lbs

Dry Weight

297 kg / 654 lbs

Fuel Capacity

17 Litres / 4.5 US gal

Riders who seek a low seat height and easily accessible controls will feel like these Low Cruisers have been custom-sized just for them. The ergonomics deliver comfort and inspire confidence.

New model for 2009 plus
- New Stingray cast wheels that are 13.8 lbs lighter
- New LED tail light is twice as bright
- New Headlight lighter and better pattern


Key Features
- Lowered Classic Cruiser: reassuring, stabile, and comfortable – visual mass is a plus
- Narrower and lower 25.2” seat height
- Foot and hand controls moved back 2”
- Passenger seat and pegs removed for clean look


Features & Benefits

• 2 inch Pull back bars

• Foot pegs moved 2.25" rearward

• Split-Tail fuel tank integrated with solo seat

• Mutli LED Tail light

• Lower seat height and narrower side covers

• Freedom 100 Cubic Inch V-Twin Engine

• Custom-inspired headlight

• Inverted forks

• Stingray billet wheels

• Comfortable riding position
