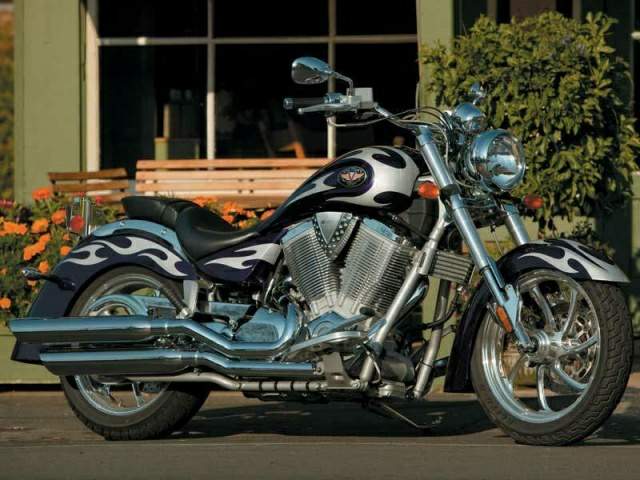

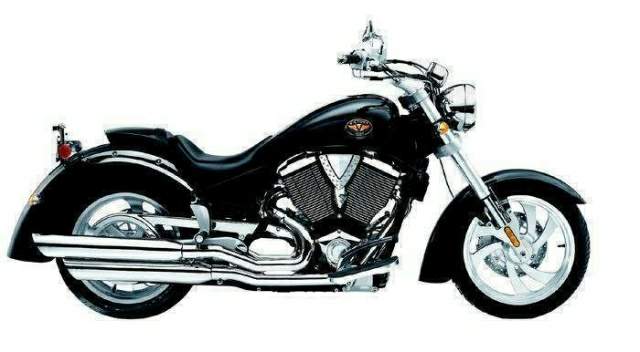

Victory Kingpin







Make Model

Victory Kingpin

Year

2004 - 05

Engine

Four stroke, 50° V twin SOHC, 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters

Capacity

1507 cc / 91.9 cu-in
Bore x Stroke 97 x 102 mm
Cooling System Air/oil cooled
Compression Ratio 9.2:1

Induction

Electronic Fuel Injection with 44mm throttle bodies

Starting

Electric

Transmission

5 Speed
Final Drive Carbon Fiber Reinforced Belt

Front Suspension

Inverted cartridge telescopic fork

Rear Suspension

Single, mono-tube gas forged and cast aluminum w/ rising-rate linkage 100mm wheel travel, preload adjustable spring

Front Brakes

Single 300mm floating rotor 4 piston caliper

Rear Brakes

Single 300mm floating rotor 2 piston caliper

Front Tyre

130/70-18

Rear Tyre

180/55-B18
Seat Height 673 mm  /  26.5 in
GVWR 549 kg / 1210 lbs

Dry Weight

297 kg / 654 lbs

Fuel Capacity

17 Litres / 4.5 US gal

Steel and chrome have never looked sweeter. Introducing Kingpin,™ the newest of The New American Motorcycles. The attitude of this cruiser says cool and comfortable, whether it's gathering a crowd on a city street or breaking away from it on the open road. Follow the curve of the fully valanced front fender to the massive, inverted front fork, across the handlebars and down the scalloped tank to the business end of Kingpin. A 92 cubic inch Freedom V-twin engine ready to power you to the next time zone.

The rest of the Kingpin is pure comfort. Eighteen-inch front and rear wheels, roomy, vibration-absorbing floorboards, and front and rear suspensions built and fine-tuned for an extra measure of cross-country smooth.

You won't see this cruiser on every street corner. First, because this gorgeous masterwork was created by Arlen Ness, America's premier designer of custom motorcycles. Second, because we're only building a few hundred of them. But those few hundred riders lucky enough to add this limited edition to their cruiser collection will be the envy of everyone, everywhere. Fully optioned, with radical paint and chrome, it's as breathtaking to look at as it is to ride. The Limited Edition Arlen Ness Signature Series isn't for everyone. But when you're dealing in art as powerful as a Victory® motorcycle, that's exactly the point.
