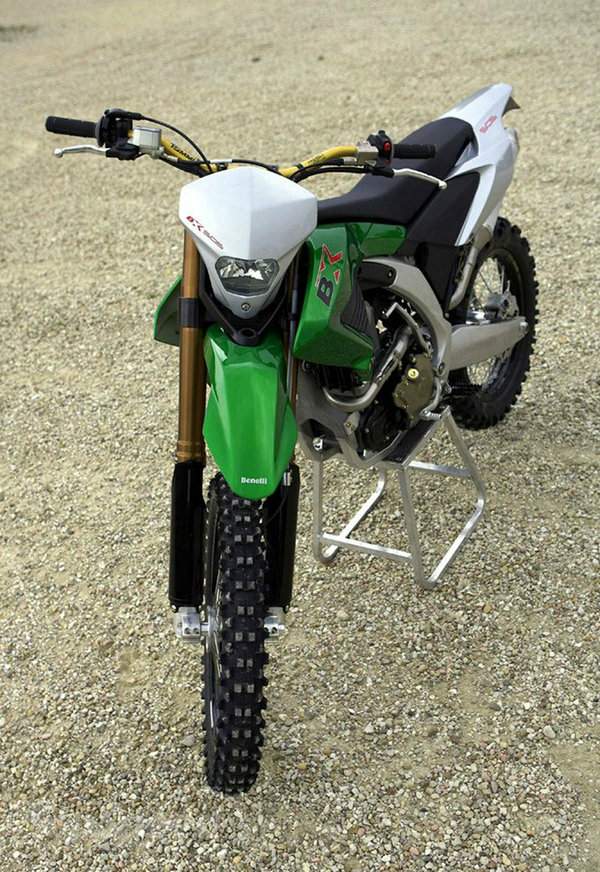

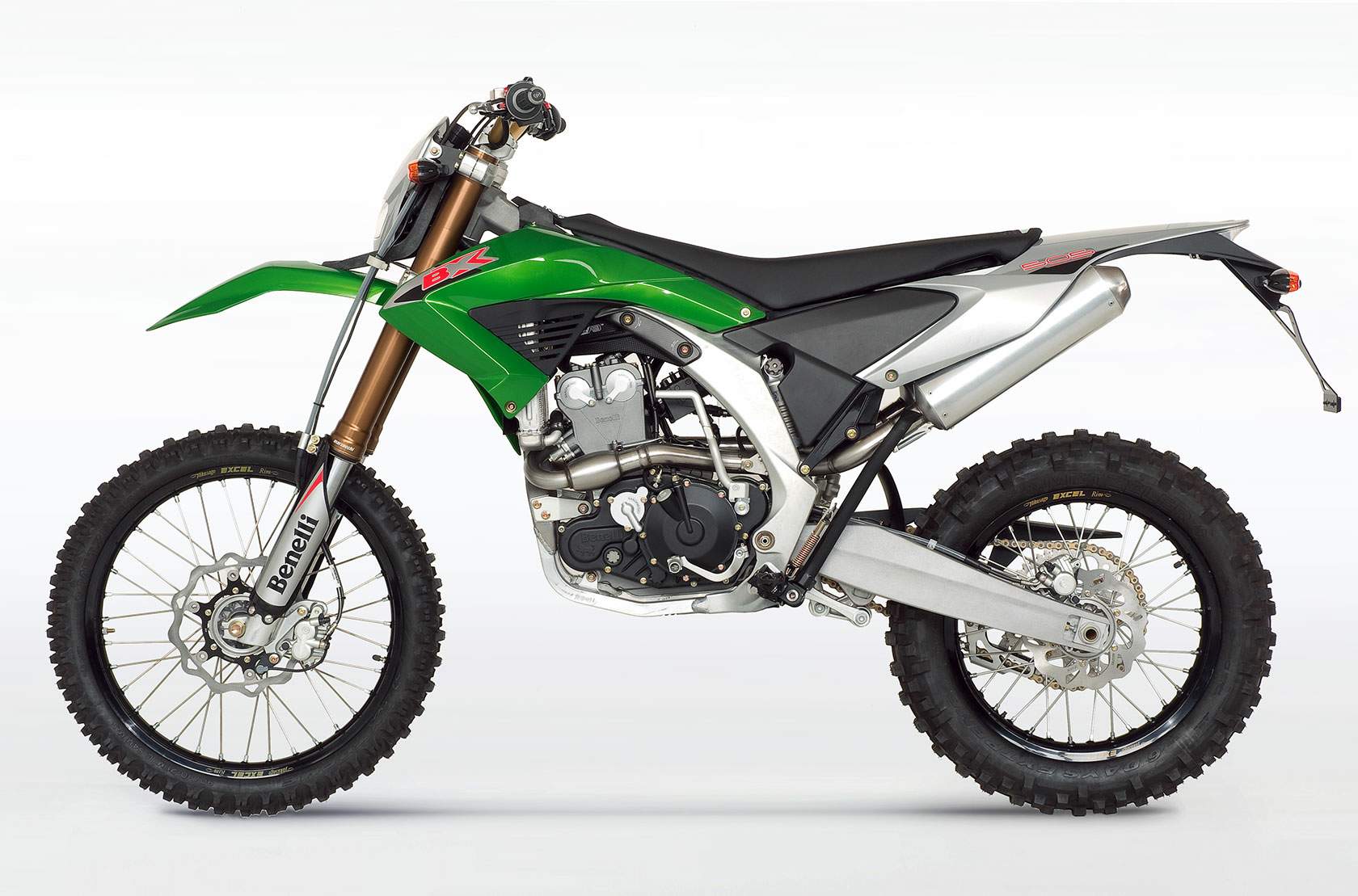

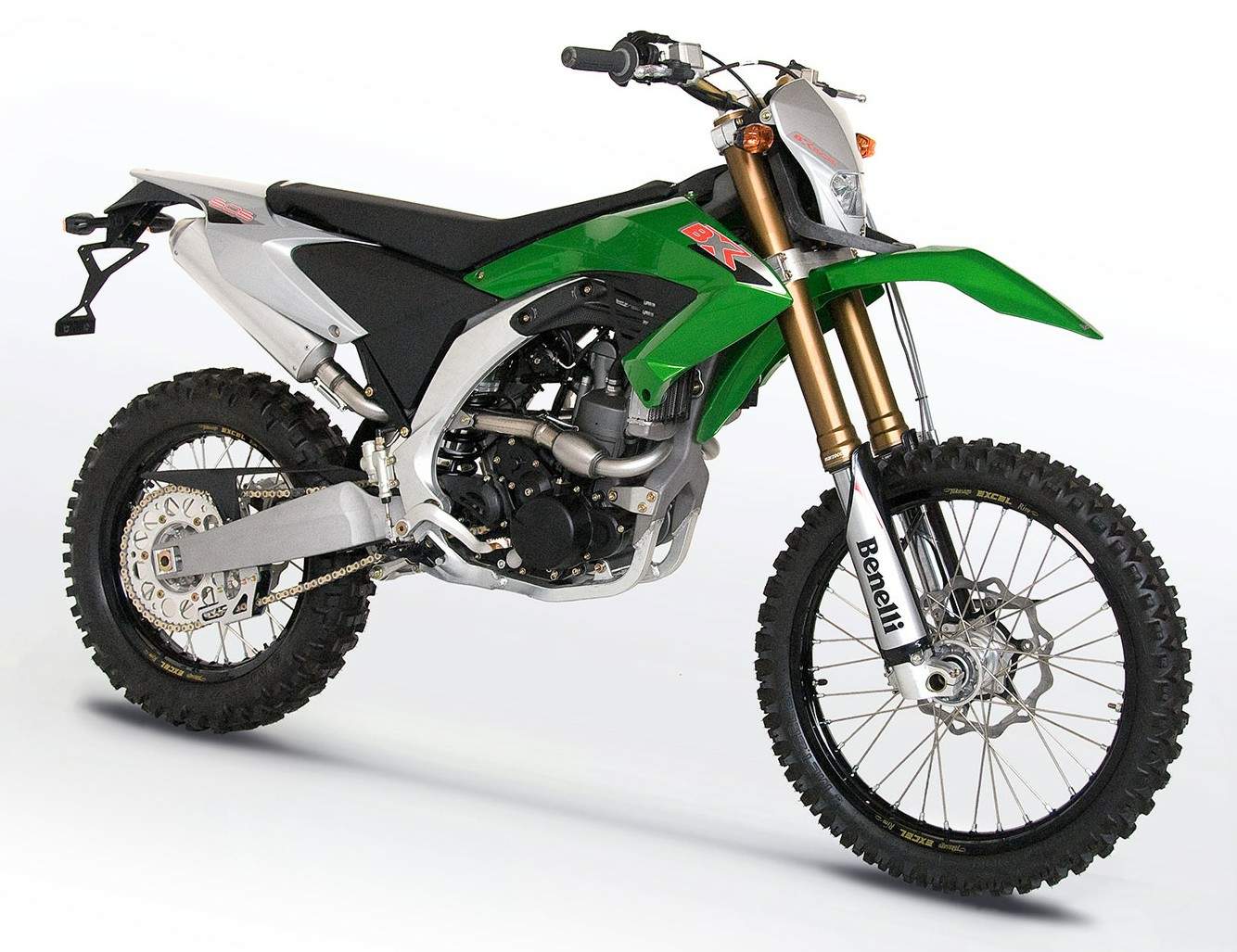

Benelli BX 505 Enduro







Make Model

Benelli BX 505 Enduro

Year

2008

Engine

Four stroke, single cylinder

Capacity

505 cc  / 30.8 cu in
Bore x Stroke 104 x 59,5  mm
Compression Ratio 11.5:1
Cooling System Liquid cooled
Lubrication Wet sump and reeds

Induction

Electronic injection-throttle body 42 mm

Ignition

Digital

Starting

Kick and electric
Exhaust system  With catalytic converter and oxygen sensor
Clutch Wet clutch, 7 steel disks

Max Power

44.5 kW / 59.7 hp @ 8500 rpm

Max Torque

50 Nm / 5.1 kgf-m / 36.9 lb-ft @ 5750 rpm

Transmission

6 Speed

Final Drive

Chain
Frame Aluminium alloy Perimeter with casting, moulded,  extruded parts and structural carbon rods

Rake

26.5°

Trail

110 mm / 4.3 in

Steering angle

45°/45°

Front Suspension

50 mm Upside down fork, fully adjustable

Front Wheel Travel

310 mm / 12.2 in

Rear Suspension

Sachs mono shock absorber fully adjustable

Rear Wheel Travel

310 mm / 12.2 in

Front Brakes

Single 260mm disc, wave

Rear Brakes

Single 220 mm disc, wave

Front Rim

1.6 x 21 in

Rear Rim

2.15 x 18 in

Front Tyre

80/100-21

Rear Tyre

140/80-18
Dimensions

Length: 2160 mm / 85.0 in

Width:     810 mm / 31.9 in

Height:  1240 mm / 48.8 in

Wheelbase 1450 mm / 57.1
Seat Height 960 mm / 37.8 in

Weight

110 kg / 243 lbs

Fuel Capacity

9 Litres / 2.4 US gal
Review Top Speed

Out on the trails, there is simply nothing to stop the Benelli BX 505 Enduro from making a damn good impression. From the first leg swing over it to some six-gear accelerating action, the machine speaks about the Italian’s intention to penetrate the Enduro market all over the world.

As soon as you are introduced to its narrow seat, motocross-like handlebars and ergonomically positioned footpegs you know that this is no ordinary trail bike or nothing like that. The idea was to create good accommodation so that the biker would concentrate on the aggressive riding that he is doing, but isn’t that a little too close to motocross? I mean that there is no possibility to ride the thing half a day without feeling that a razor blade splits you in half and start searching for aftermarket seats that never let themselves found, especially in the case of a motocr…sorry, enduro bike.

But if you are more into hard enduro, the engine will feel like it was especially designed to fulfill your riding needs. A real torque and horsepower provider, the 505cc single cylinder four-stroke DOHC four titanium valves fuel injected powerplant needs a single twist of the throttle to spin the rubber and uncover the ground beneath the wet leaves. This happens when taking it hardly in first gear, but quick take offs can easily be made also in second gear with an even longer and continuous accelerating feel. The clutch is smooth engaging and the gearbox is quite precise so it will be enjoyable to approach it like a dirt bike. But when finding a straight piece of land and shifting an upper gear when only wanting to make sure that you’re riding in fifth, surprise! The sixth gear won’t harm anyone, but only take their enjoyment even further.

All through the rev range, this thumper will deliver the best it can: great torque from down low, a powerful mid-range and never ending top. It is definitely comparable to powerplants found on the Husky and KTM models and its 72 horses clearly say their heavy word.

Handling the 505 Enduro feels light, easy and very responsive thanks to the bike’s 26.5 degrees in rake. It seems that Benelli didn’t intended to make a clear difference between the BX 449 Cross and the Enduro model 505 BX so the chassis is identical to the one found on its racing cousin.

Suspensions will be efficient, as expected, so that stability and consistency reach the highest levels and end up defining endurance with their 310mm wheel travel at both ends.

One truly great riding experience, the brand new Benelli BX 505 Enduro will definitely be a great bike in anyone’s garage and a nice memory in the mind of the test rider.

Conclusion
Having presented us the best of both worlds, the Italian manufacturer intends on retaining the qualities of a motocrosser into an Enduro bike and that looks like a great idea. It is indeed, that is if you don’t feel like riding it for hours and hours. The stylish looking Benelli BX 505 Enduro attracts and doesn’t disappoint, but the track would seem like its most appropriate riding space.
