Bimota DBx Concept









Make Model

Bimota DBx

Year

2013

Engine

Four stroke, 90°“L”twin cylinder, SOHC, Desmodromic 2 valves per cylinder

Capacity

1078 cc / 65.8 cub. in.

Bore x Stroke

98 x 71.5 mm

Compression Ratio

10.5:1

Cooling System

Air / oil cooled

Induction

Electronic fuel injection - 45 mm throttle body

Ignition

Marelli electronic

Starting

Electric

Max Power

70.5 kW / 95 hp @ 7050 rpm

Max Torque

103 Nm / 76 lb/ft. @ 5500 rpm

Transmission

6 Speed

Final Drive

Chain

Frame

niCrmo4 steel frame with aluminum inserts

Front Suspension

48mm Öhlins adjustable,

Rear Suspension

Öhlins adjustable

Front Brakes

2x 300mm / 11.8 in. discs

Rear Brakes

Single 255mm / 10.0 in. disc

Front Tyre

90/90-21

Rear Tyre

180/55ZR -17

Dimensions

Length  2220 mm / 87.4 in.

Width:     850 mm / 33.5 in.

Height   1200 mm / 47.2 in.

Wheelbase

1465 mm / 57.7 in.

Seat Height

890 mm / 35.0 in.

Weight

175 kg / 385.8 lbs

Fuel Capacity  17 Litres / 4.5 US gal

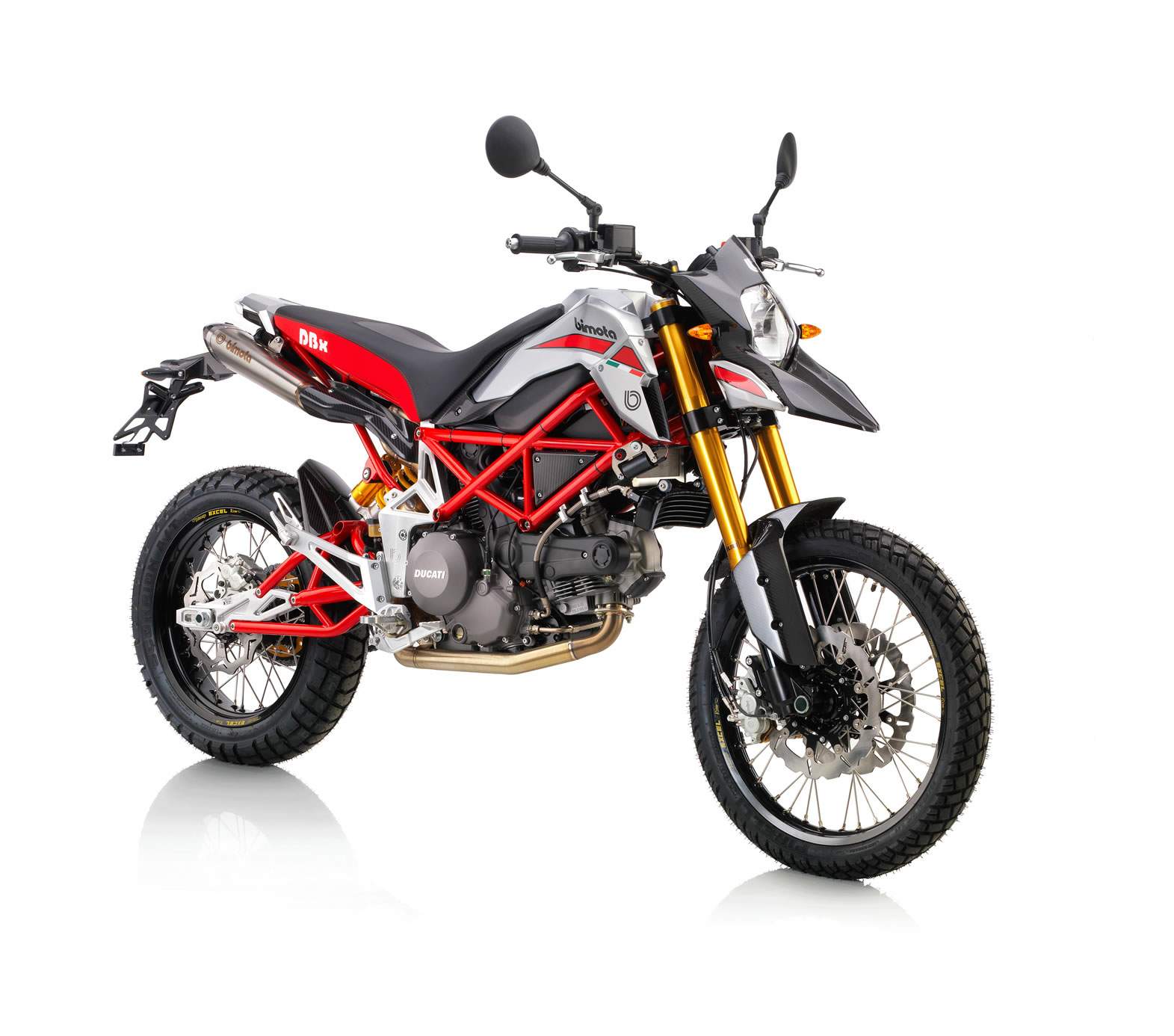

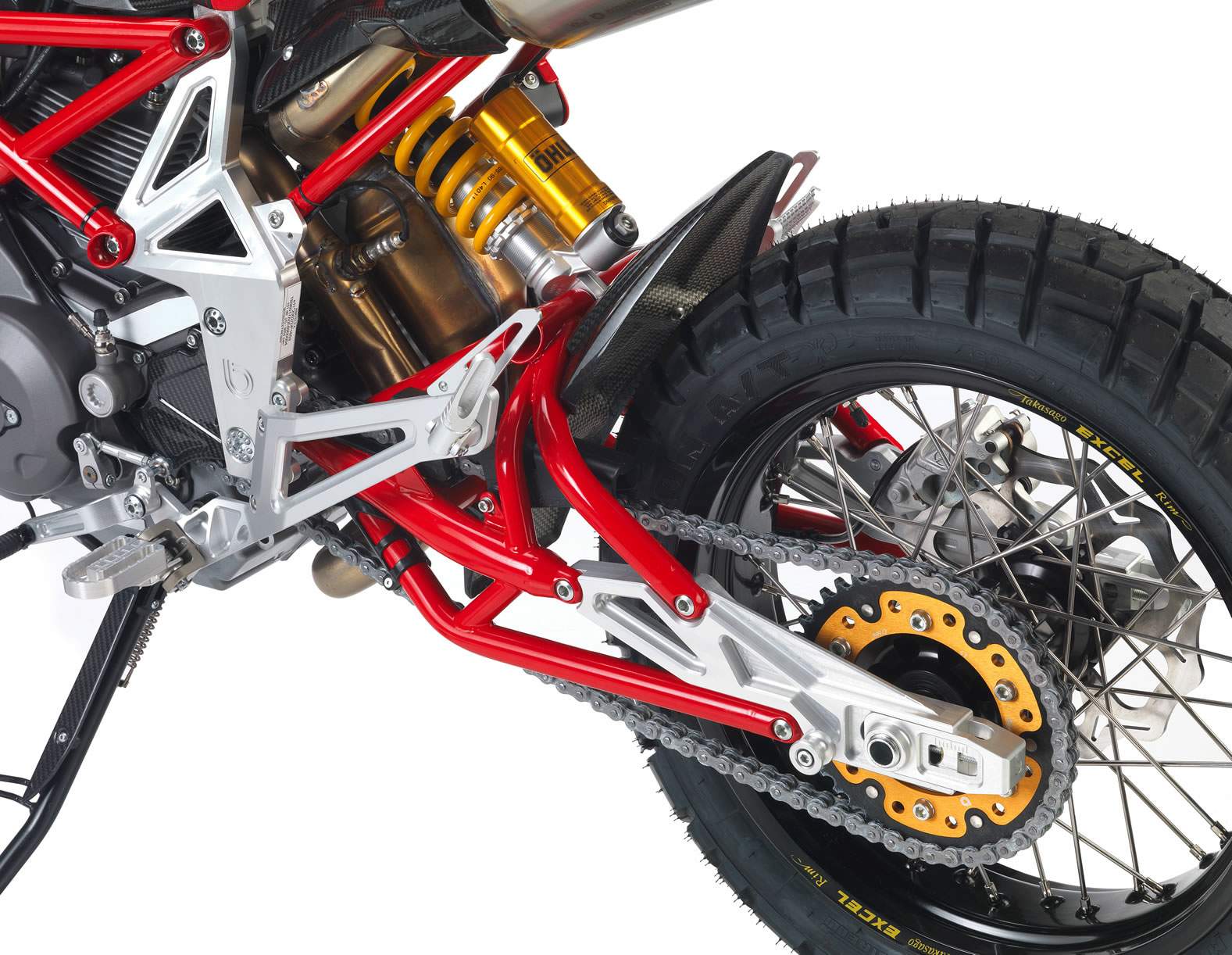

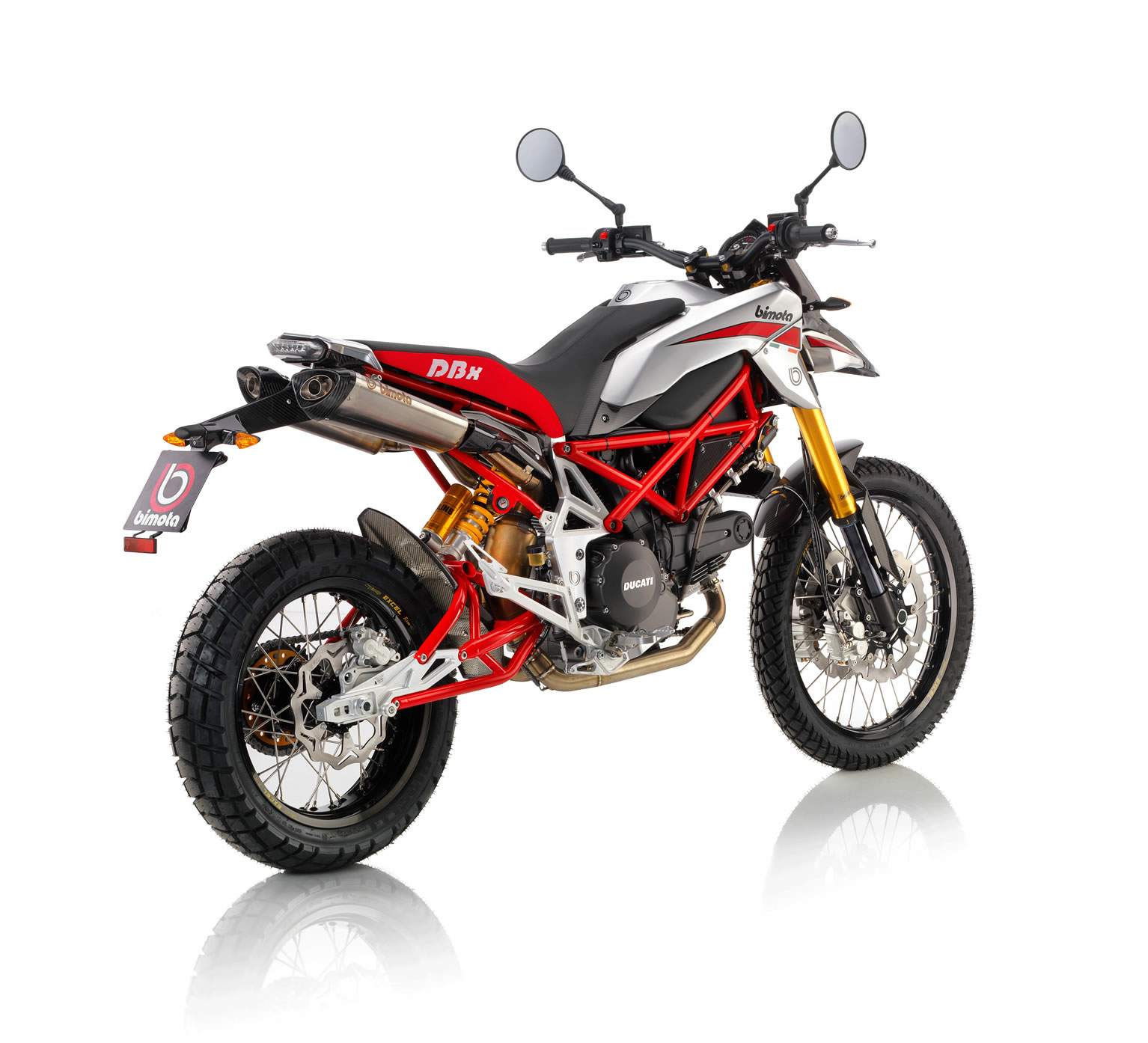

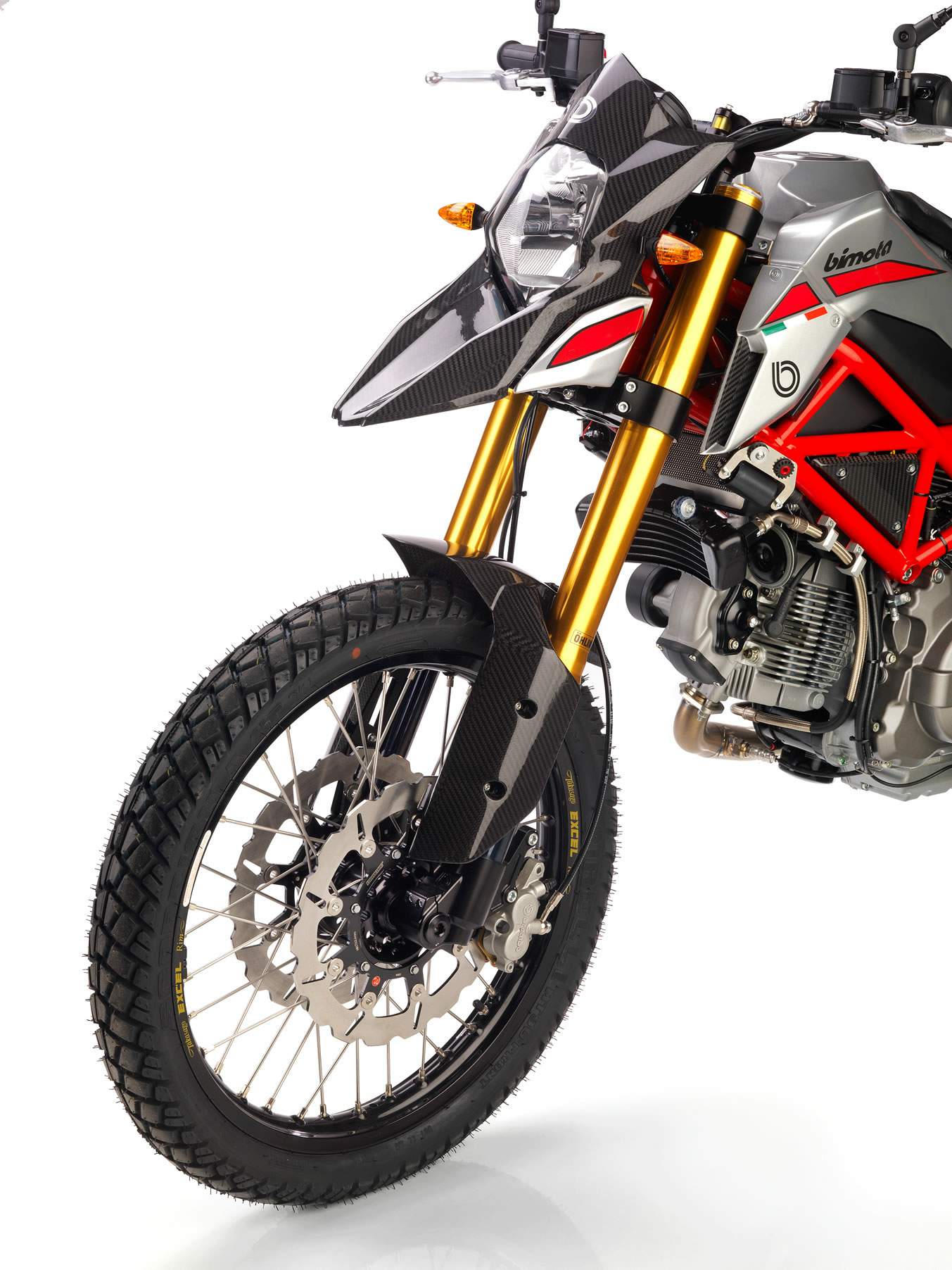

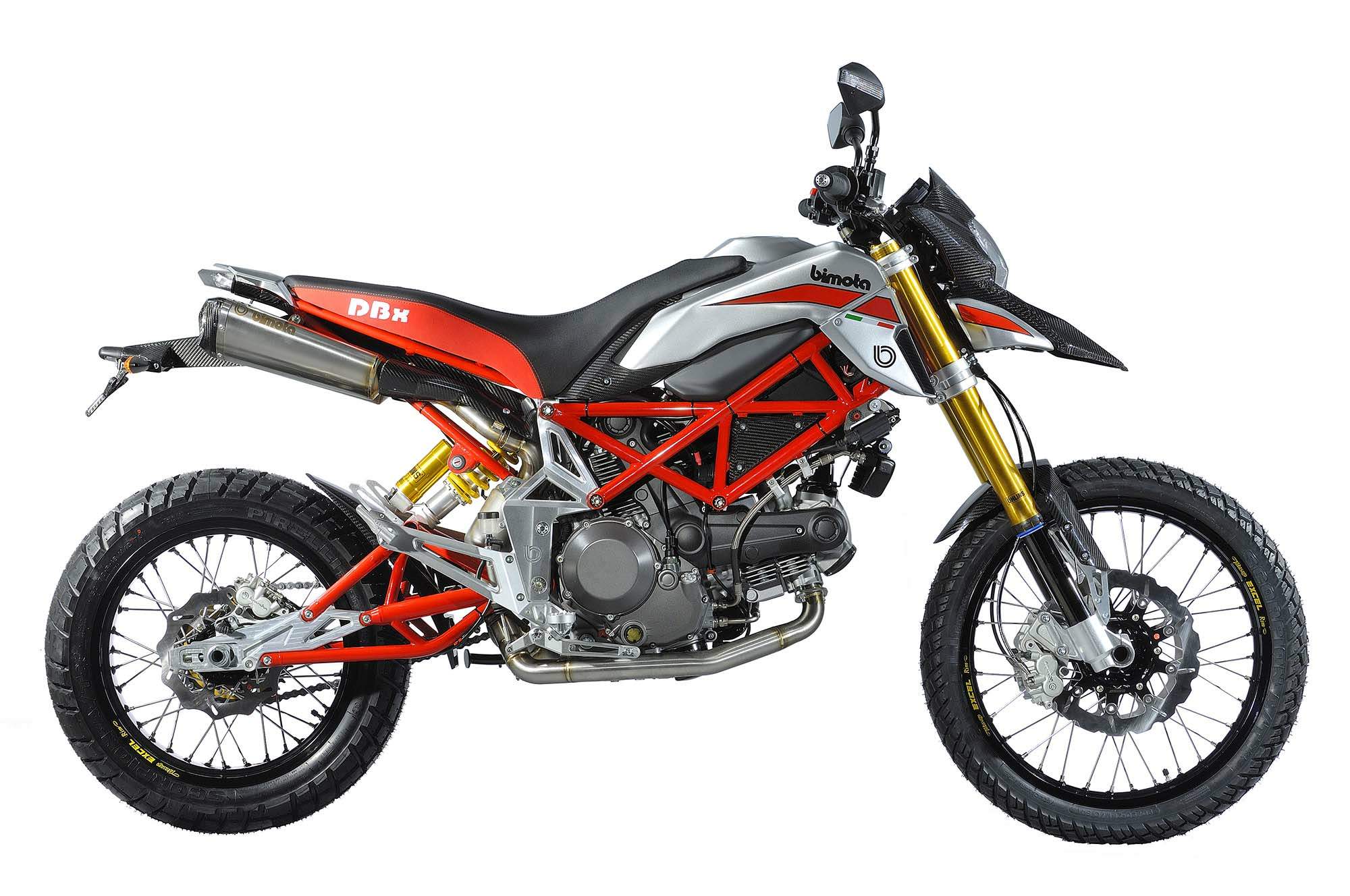

The DBx is a rugged dual sport bike fitted with Öhlins TTX forks and four-way adjustable shock, Brembo monoblocs (2 x 300mm discs up front, 200mm in the back) and a lot of carbon fiber. Weighting only 385 lbs and powered by a 95 hp engine the new DBx is the lightest and most powerful bike in its class. With 19 inch front and 17 inch (18 inch optional ) rear wheels wrapped in Pirelli tires the Bimota DBx seems ready to conquer any terrain with poise.

Unfortunately, the new bike is only a concept developed to see test the public’s response. Judging by the way it looks and its sporty specs, the new bike could have a pretty bright future and we sincerely hope that Bimota will decide to launch it into production.
