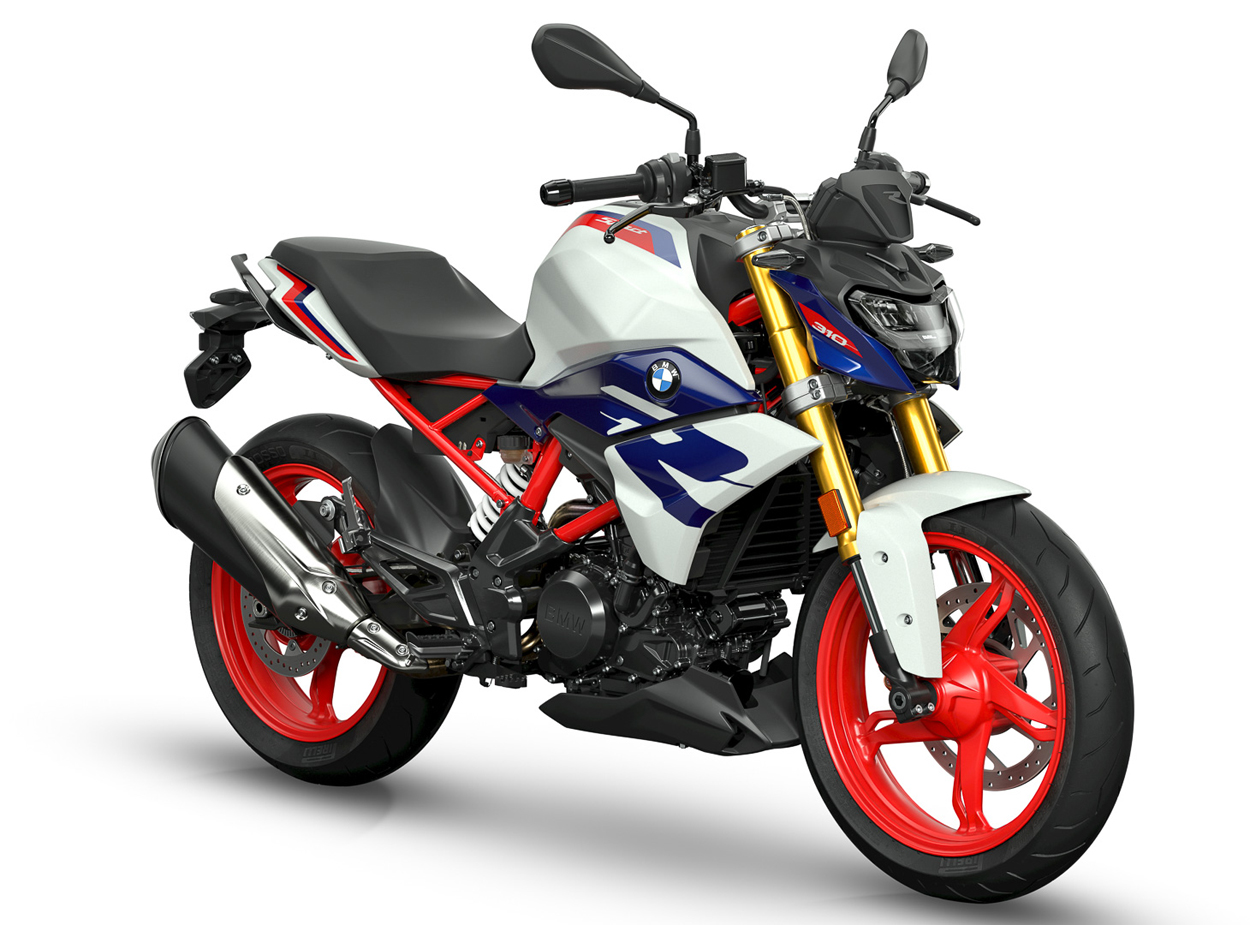

BMW G 310R

.

Make Model

BMW G 310R

Year

2022

Engine

Single cylinder, DOHC and cam followers, 4 valves

Capacity

313 cc / 19.1 cu in
Bore x Stroke 80 x 62.1 mm
Compression Ratio 10.9:1
Cooling Liquid Cooled

Induction

Electronic fuel injection
Emission Closed-loop 3-way catalytic converter, emission standard EU-5
Alternator Three-phase alternator with 308 W
Battery 12 V / 8 Ah, maintenance-free
Starting Electric

Max Power

25 kW / 34 hp @ 9250 rpm

Max Torque

28 Nm / 20.7 ft-lb @ 7500 rpm
Clutch Multi-disc oil bath (anti-hopping) with self-reinforcement

Transmission

6-Speed, constant-mesh
Final Drive Endless X-ring chain with shock damping in rear wheel hub
Frame Tubular space frame

Front Suspension

41mm USD telescopic fork
Front Wheel Travel 140 mm / 5.5 in
Rear Suspension Cast aluminium dual swing arm, central spring strut, spring pre-load adjustable
Rear Wheel Travel 131 mm / 5.5 in
Front Brakes Single 300mm disc, 4-piston fixed caliper, radially bolted
Rear Brakes Single 240mm disc, single-piston floating caliper
ABS BMW Motorrad ABS
Wheels 5-Spoke, cast aluminium
Front Rim 3.0 x 17
Rear Rim 4.0 x 17

Front Tyre

110/70 R17

Rear Tyre

150/60 R17
Castor 114 mm / 4.48 in
Steering Head Angle 64.9°
Dimensions Length: 2005 mm / 78.9 in
Width:    849 mm / 33.4 in
Height: 1080 mm / 42.5 in
Wheelbase 1380 mm / 54.3 in
Seat Height 785 mm / 30.9 in
OA low seat:   770 mm / 30.3 in
OE high seat: 800 mm / 31.4 in
Wet Weight 164 kg / 361.5 lbs

Fuel Capacity

11 Litres / 2.9 US gal
.

With its powerful, dynamic single cylinder, the appearance in 2015 of the BMW G 310 R opened up the world of BMW Motorrad’s Dynamic Roadster. Quick and agile in the city, confident and powerful on the open road – as a result, the lively, purposeful Dynamic Roadster delighted many customers all over the world. In order to sustain this going forward, BMW Motorrad has made the BMW G 310 R fit for the future and afforded it a range of enhancements.

With its powerful, dynamic single cylinder, the appearance in 2015 of the BMW G 310 R opened up the world of BMW Motorrad’s Dynamic Roadster for the capacity segment under 500 ccm. Quick and agile in the city, confident and powerful on the open road – as a result, the lively, purposeful Dynamic Roadster delighted many customers all over the world, especially newcomers. In order to sustain this going forward, BMW Motorrad has made the BMW G 310 R fit for the future and afforded it a range of enhancements.

Single-cylinder engine according to EU-5 homologation with automatic idle boost, electromotive throttle controller and self-boosting anti-hopping clutch.

The heart of the new BMW G 310 R is still the reliable 313 ccm liquid-cooled single-cylinder engine with four valves, two overhead camshafts and electronic fuel injection. The cylinder inclination to the rear and the cylinder head rotated by 180 degrees with intake at the front and exhaust at the rear remain the design characteristics. This arrangement follows the logic of optimal combustion air ducting and results in a particularly compact vehicle architecture. With an output of 25 kW (34 HP) at 9 500 rpm and a maximum torque of 28 Nm at 7 500 rpm, the single-cylinder engine of the new BMW G 310 R is the ideal partner for dynamic Roadster pleasure, including in the current EU 5 homologation.

For use in the new BMW G 310 R, the engine has been equipped with a so-called "electronic throttle grip" (electromotive throttle controller) and now offers an even more sensitive throttle response. Automatic idle speed increase when starting also prevents a possible sudden stalling of the engine. The self-boosting anti-hopping clutch is also new. It reduces engine drag torque and provides a significant increase in driving safety - particularly during braking manoeuvres involving simultaneous downshifting. It also offers significantly reduced operating forces at the clutch lever.

New LED headlight and LED flashing turn indicators – seeing and being seen optimally.

Whereas the BMW G 310 R was already equipped with brake lights in LED technology, the new BMW G 310 R now has a full-LED headlight for even better visibility at night and LED flashing turn indicators for increased visibility in traffic. The new LED headlight ensures particularly bright and homogeneous illumination of the road. The three light functions high beam, low beam and – depending on the country – daytime driving light can be conveniently operated using the left handlebar controls.

Hand lever adjustable in four stages for brake and clutch.

Both, the clutch lever and the handbrake lever are now adjustable in four stages. It thus now provides ergonomic benefits – particularly for people with small hands. Stage 3 of the brake lever adjustment corresponds to the grip width until now. In the 1st position the brake lever is 6 mm closer to the handlebar.

Softly reimagined design with two attractive base colours and the exclusive "Sport" style option.

Dynamics and agility are also reflected in the design of the new BMW G 310 R. Here the visual similarity to sporty family members like the BMW S 1000 R is unmistakeable. This is also reflected in the colour scheme of the Dynamic Roadster. What all three colour options of the BMW G 310 R have in common are the engine housing covers for the alternator, clutch and coolant pump as well as footrest plate and rear grab handle, now painted in Titanium Grey Metallic.

Besides the base colour, Cosmic Black, and accentuated masculine touch, another base colour option, Polar White, is now available, which together with blue painted accents represents the traditional BMW corporate colours in a fresh, dynamic way. In Sport style with the base colour, Limestone Metallic, eye-catching red "R" graphic on the fairing side panels and red frame and wheels, the new BMW G 310 R confidently reveals its sporty side.

All new features of the BMW G 310 R at a glance:

- Single-cylinder engine according to EU-5 homologation with electromotive throttle controller and automatic idle speed increase.
- Self-boosting anti-hopping clutch.
- New LED headlight and LED flashing turn indicators.
- Hand lever adjustable in four stages for brake and clutch.
- Engine housing covers for the alternator, clutch and coolant pump as well as footrest plate and rear grab handle painted in Titanium Grey Metallic.
- Softly reimagined design with two attractive base colours and the exclusive style option “Sport” with red as accent colour.
