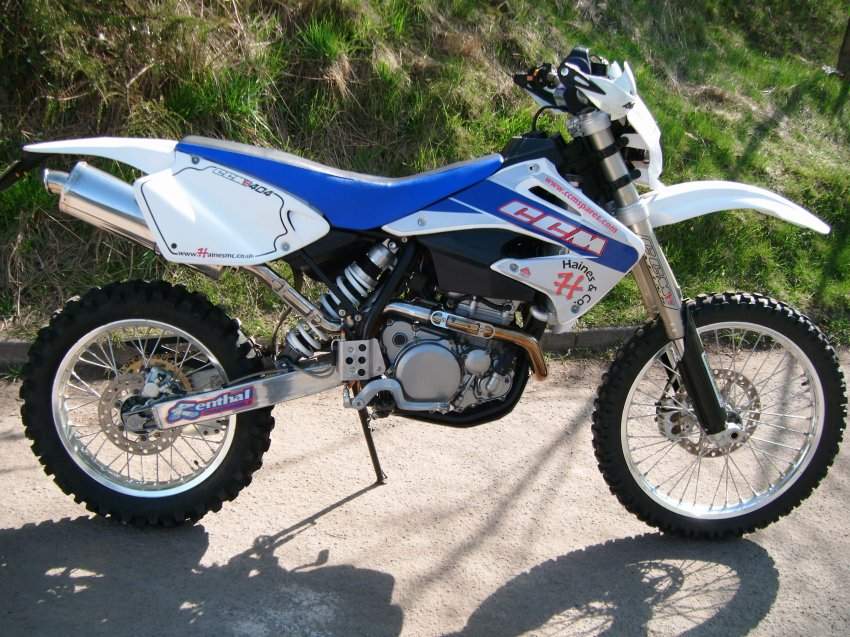

CCM 404 DS Trail







Make Model.

CCM 404 DS Trail

Year

2006 - 07

Engine

Four stroke, single cylinder, DOHC, 4 valves

Capacity

398 cc / 24.3 cu in
Bore x Stroke 90 x 62.6 mm
Compression Ratio 12.2:1
Lubrication System Dry sump
Cooling System Liquid cooled

Exhaust

Stainless steel with stainless steel silencer

Induction

Keihin FCR 39

Ignition

Electronic CDI

Starting

Electric

Battery

YUASA 6.5 Ah

Max Power

39.5 kW / 53 hp @ 7000 rpm

Transmission

5 Speed

Final Drive

Chain, 520 Heavy duty, O-ring

Frame

Aluminium triple box, swingarm

Rake

28.5°

Trail

126 mm / 4.9"

Front Suspension

WP 48mm adjustable for compression and rebound

Front Wheel Travel

275 mm / 10.8"

Rear Suspension

WP PDS adjustable for compression, rebound and preload

Rear Wheel Travel

256 mm / 10.1"

Front Brakes

Single 260 mm disc, Brembo 2 piston caliper

Rear Brakes

Single 220 mm disc, Brembo 1 piston caliper

Front Tyre

90/90-21

Rear Tyre

120/70-18
Wheelbase 1501 mm / 59.1 in
Ground Clearance 352 mm / 13.9"
Seat Height 950 mm /  37.4 in

Dry Weight

124 kg / 273.4 lb

Fuel Capacity

11 L / 2.9 US gal
