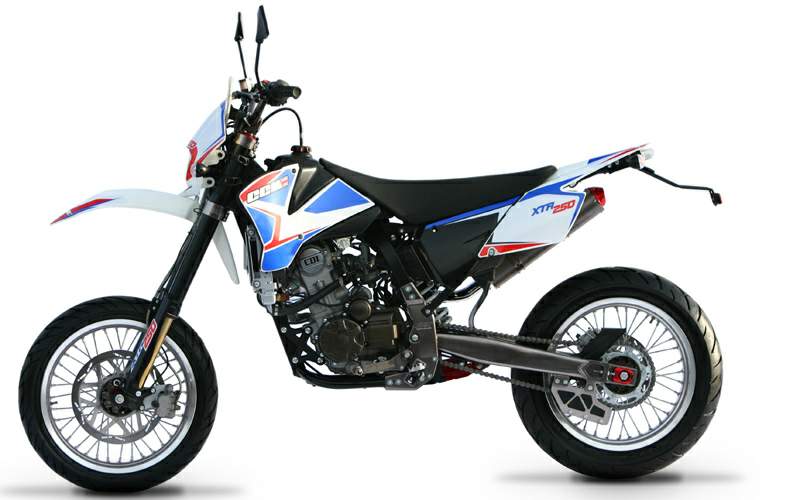

CCM X-TR 250







Make Model.

CCM X-TR250

Year

2009

Engine

Four stroke, single cylinder, SOHC, 2 valves

Capacity

230 cc / 14.0 cu in
Bore x Stroke 70.0 x 64.8 mm
Compression Ratio 10.8:1
Cooling System Liquid cooled

Induction

Mikuni carburetor

Ignition

Electronic ignition CDI

Starting

Electric & kick

Max Power

17.6 kW / 23.6 hp@ 7000 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Upside down 41mm fork, adjustable rebound, compression and preload, 300mm wheel travel.

Front Wheel Travel

300 mm / 11.8"

Rear Suspension

Single shock absorber, adjustable for rebound, compression and preload

Rear Wheel Travel

300 mm / 11.8"

Front Brakes

Single 320mm disc

Rear Brakes

Single 260 mm disc

Front Tyre

120/60 -17

Rear Tyre

150/60 -17
Wheelbase 1505 mm / 59.3 in
Ground Clearance 280 mm / 11.0 "
Seat Height 940 mm / 37.0"

Dry Weight

113 kg / 249 lbs

Fuel Capacity

8.8 L / 2.1 US gal

The XTR250, with an affordable price. Like its smaller brother, the XTR250 is also supplied as standard in trail trim, with supermoto wheels being offered as an optional extra.

With its red, white and blue design the XTR250 carries a look very similar to CCMs factory MX race bikes that will grace the Grand Prix circuits later this year and which have provided the pedigree for CCMs new road going ranges.
