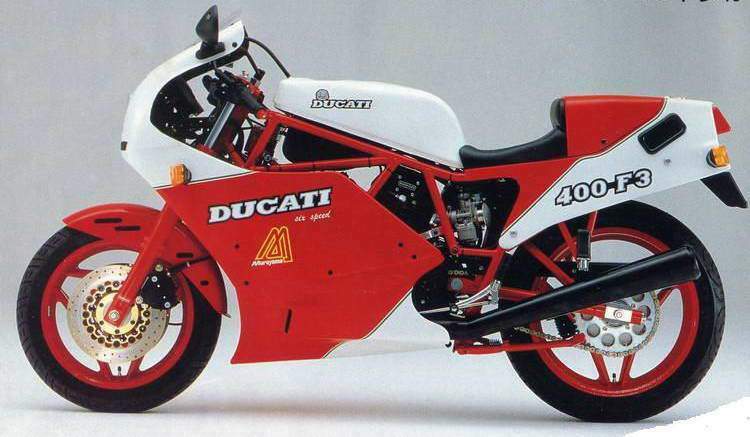

Ducati 400F3







Make Model.

Ducati 400F3

Year

1986

Engine

Four stroke, 90°“L” twin cylinder, Desmo SOHC, belt-driven

Capacity

398 cc / 24.3 cu in
Bore x Stroke 70.5 x 51mm
Compression Ratio 10.4:1
Cooling System Air cooled

Induction

Dell'Orto PHF30M carburetor (1988: PHF36)

Spark Plug

Champion L82YC

Ignition

Electronic ignition, Bosch BTZ

Starting

Electric

Battery

Yuasa 12V 14Ah

Max Power

34.6 kW / 47 hp @ 10000 rpm

Max Torque

26.5 Nm / 2.7 kgf-m / 19.5 ft-lb @ 7500 rpm

Clutch

Wet multiplate

Transmission

5-speed (1988:) 6 Speed

Primary Drive

2.226:1 (31/69)

Gear Ratios

1986-87: 1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.931:1

Final Drive

Chain

Front Suspension

35 mm Marzocchi fork

Rear Suspension

Single adjustable shock, Boge

Front Brakes

2 x 260mm discs

Rear Brakes

Single 260 mm disc

Front Tyre

100/90-18

Rear Tyre

120/80-18

Dimensions

Length: 2050 mm / 80.7 in
Width:    670 mm / 26.4 in
Height:   900 mm / 35.4 in

Wheelbase

1400 mm / 55.1 in

Seat Height

750 mm / 29.5 in

Dry Weight

180 kg / 397 lbs

Fuel Capacity

1986: 22L / 5.8 US gal / 4.8 Imp gal
1987 - 88: 18 L / 4.8 US gal / 4.0 Imp gal
Top Speed 175 km/h / 108.7 mph

Japan was one of the biggest markets for Ducati in the 1980s but limited sport bikes to 400 cc, so smaller versions of the F1 were sold there as the F3 from 1986-88. A similar restriction in Italy was set at 350 cc, and a red and white F3 was sold there in, only available in 1986. The Japanese 400-cc F3 generated 47 horsepower, while the Italian 350 F3 made 42.5. Basic suspension was fitted to the little bikes: 35-mm Marzocchi forks and 260-mm dual discs with Brembo callipers. The two models each weighed 397 pounds, and the 400 F3 was tested at 110.8 mph, which is quite respectable.
