Ducati 916 Senna

.

Make Model

Ducati 916 Senna

Year

1995

Engine

Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valve per cylinder, belt driven

Capacity

916 cc / 55.9 cu in
Bore x Stroke 94 x 66 mm
Cooling System Liquid cooled
Compression Ratio 11.0:1

Induction

Weber I.A.W. CPU P8 electronic indirect injection
Spark Plugs Champion RA59GC
Lubrication Wet sump
Engine Oil Synthetic, 15w-50

Ignition

Electronic I.A.W
Battery 12V 16Ah
Starting Electric

Max Power

83.8 kW / 114 hp @ 9000 rpm

Max Torque

90 Nm / 9 kgf-m / 66.3 lb-ft @ 7000 rpm

Clutch

Dry, multiplate

Transmission

6 Speed
Primary Drive Ratio 2:1 (31/62)
Gear Ratios 1st 2.466 / 2nd 1.765 / 3rd 1.350 / 4th 1.091 / 5th 0.958 / 6th 0.857
Final Drive Ratio 2.4:1 (15/36)
Final Drive Chain
Frame Steel, Trellis frame

Front Suspension

43 mm Adjustable Showa GD051 inverted fork
Front Wheel Travel 127 mm / 5.0 in

Rear Suspension

Showa GD52-007-02, rising rate progressive linkage adjustable monoshock
Rear Wheel Travel 130 mm / 5.1 in

Front Brakes

2 x 320 mm Discs, 4 piston calipers

Rear Brakes

Single 220 disc, 2 piston caliper

Front Wheel

3.50 x 17

RearWheel

5.50 x 17

Front Tyre

120/70 ZR17

Rear Tyre

190/50 ZR17 or 180/55 ZR17
Rake Adjustable 24o - 25o
Trail 94 - 100 mm / 3.7 - 3.9 in

Dimensions

Length 2050 mm / 80.7 in
Width 685 mm / 27.0 in
Height 1090 mm / 42.9 in
Wheelbase 1410 mm / 56.6 in
Seat Height 790 mm / 31.1 in

Dry Weight

198 kg / 436 lbs
Wet Weight 204 kg / 450 lbs

Fuel Capacity

17 Litres / 4.4 US gal / 3.7 Imp gal
Reserve 4 L / 1.1 IS gal / 0.9 Imp gal

Consumption Average

5.4 L/100 km / 18.5 km/l / 43.5 US mpg / 52.3 Imp mpg

Braking 60 km/h - 0

12.9 m / 42.3 ft

Braking 100 km/h - 0

39.9 m / 131 ft

Standing ¼ Mile

10.6 sec / 207.4 km/h / 128.9 mph

Top Speed

255.1 km/h / 158.5 mph
Manual Ducati 916 Manuals
Road Test Moto Sprint 1994

Tutomoto 1994

.

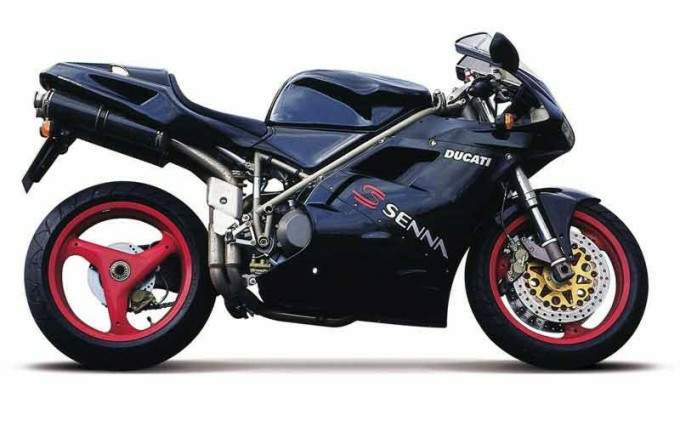

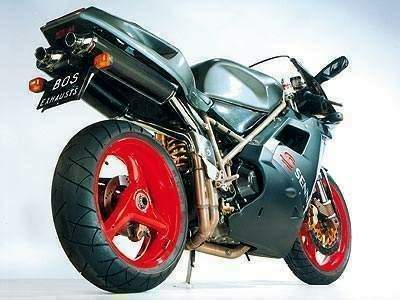

The great Brazilian Formula One driver Ayrton Senna was a friend of the Castiglioni brothers, and an owner of an 851. Only a few months before his death in 1994 Senna agreed to the production of a limited edition 916 Senna, with the profits going to the Senna Foundation. The Senna 1 appeared for 1995, and setting it apart from the regular 916 was the black and gray color scheme with red wheels. Apart from steel Pankl conrods, the engine specification was that of the 916 Strada, while the chassis was similar to the 916 SP. This included the solo seat, aluminum rear subframe, Öhlins shock absorber, and fully floating cast-iron front brake discs. Also shared with the SP were adjustable brake and clutch levers, stainless-steel brake lines, and carbon-fiber front fender, clutch cover, chain guard, and exhaust pipe insulating panel.
