Ducati 998S Final Edition

Make Model	Ducati 998 S Final Edition
Year	2004
Engine	Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valve per cylinder, belt driven
Capacity	998 cc / 60.9 cu in
Bore x Stroke	100 x 63.5 mm
Cooling System	Liquid cooled
Compression Ratio	11.4:1
Lubrication	Wet sump
Induction	Weber Marelli CPU 5.9M, 54mm throttle bodies, electronic fuel injection
Spark Plugs	Champion RG4HC
Exhaust	2 Aluminum mufflers by Termignoni
Ignition	Digital CDI
Battery	12V 10Ah
Starting	Electric
Max Power	100 kW / 136 hp @ 10200 rpm
Max Torque	101 Nm / 74.4 lb-ft @ 8000 rpm
Clutch	Dry multiplate with hydraulic control
Transmission	6 Speed
Primary Drive Ratio	1.84:1 (32/59), straight cut gears
Gear Ratios	1st 2.466 / 2nd 1.765 / 3rd 1.400 / 4th 1.182 / 5th 1.043 / 6th 0.958:1
Final Drive Ratio	2.40:1 1(5/36)
Final Drive	Chain
Frame	Tubular steel trellis
Front Suspension	Öhlins upside down fork with 43 mm of condition pipe diameter, TiN coating
Front Wheel Travel	120 mm / 4.7 in
Rear Suspension	A arm rocker with progressively working Öhlins central shock strut
Rear Wheel Travel	130 mm / 5.1 in
Front Brakes	2 x 320 mm Discs, 4 piston calipers
Rear Brakes	Single 220 mm disc, 2 piston caliper
Front Tyre	120/70 ZR17
Rear Tyre	190/50 ZR17
Dimensions	Length 2030 mm / 79.9 in Width 780 mm / 30.7 in Height 1080 mm / 42.5 in
Wheelbase	1410 mm / 55.5 in
Seat Height	790 mm / 31.1 in
Dry Weight	187 kg / 412 lbs
Fuel Capacity	17 Litres / 4.5 US gal / 3.7 Imp gal
Consumption Average	5.8 L/100 km / 17.1 km/l / 40.2 US mpg / 48.3 Imp mpg
Standing ¼ Mile	10.7 sec
Top Speed	270 km/h / 168 mph

2004 will mark the ten-year anniversary of the most iconic and victorious motorcycle ever made. As a final tribute to this remarkable creation, Ducati presents the limited edition Ducati 998S Final Edition.

The “S” model Testastretta engine delivers the extraordinary power and performance the world-beating 996R. Included is the Corse extended crankcase sump - for positive lubrication no matter the acceleration or lean angle.

Fully adjustable Öhlins front forks and an Öhlins rear shock let you lean-in and power-out confidently in the turns, while an Öhlins steering damper keeps the front end stable.

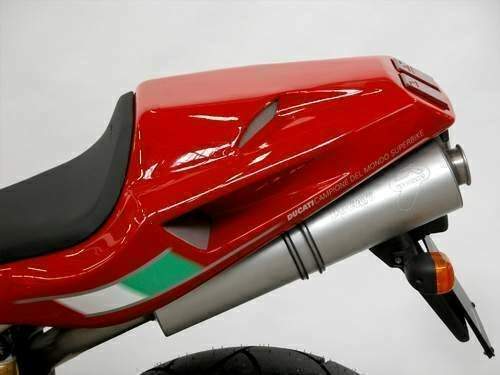

Additional features make the 998 F.E. a truly unique bike. A silver plate on the steering head is inscribed “Ducati998S Final Edition”. The bike tail is painted like the Italian tricolor (red, white and green) and bears the Italian claim, Ducati Campione del Mondo (Ducati World Champion). The tank is emblazoned with Victor’s laurels, the number 1 and the total number of 998 victories (8 Championships, 115 races).
