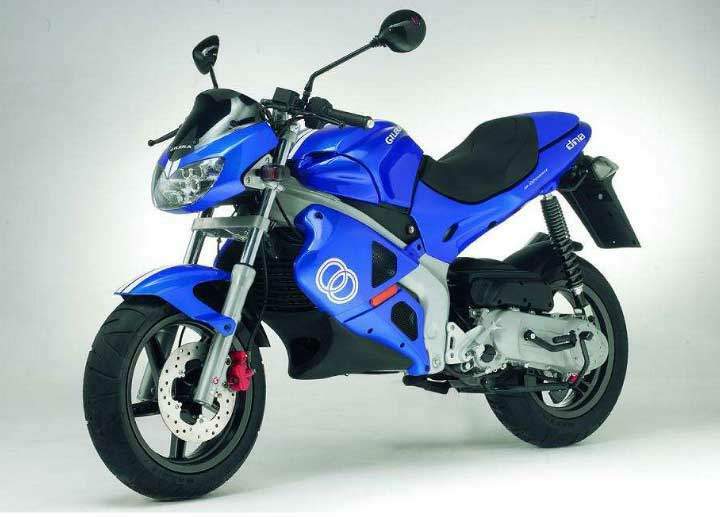

Gilera DNA 125







Make Model

Gilera DNA 125

Year

2000 -

Engine

Four stroke, single cylinder, SOHC, 4 valve

Capacity

125 cc / 7.6 cu-in
Bore x Stroke 57 x 48.6 mm
Cooling System Liquid cooled
Compression Ratio

Induction

Ignition

CDI
Starting Electric & kick

Max Power

Max Torque

Clutch Automatic dry centrifuge type

Transmission

Twist and go
Frame Open cradle frame with two descending beams in drawn steel

Front Suspension

35mm Hydraulic fork

Rear Suspension

Dual shock absorbers, 4-way spring preload adjustment

Front Brakes

Single 240mm disc 2 piston clipper

Rear Brakes

Single 240mm disc 1 piston clipper

Front Tyre

120/70-14

Rear Tyre

140/60-14
Seat Height 780 mm / 30.7 in

Dry Weight

125 kg / 275.5 lbs

Fuel Capacity

10 Litres / 2.6 US gal
