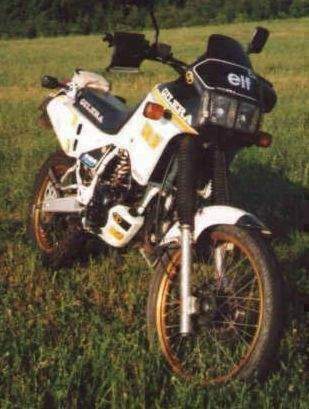

Gilera R1-125







Make Model

Gilera R1 125

Year

1988 - 89

Engine

Two stroke, single cylinder, reed valve

Capacity

124 ccc / 7.6 cu-in
Bore x Stroke 56 x 50.5 mm
Cooling System Liquid cooled
Compression Ratio 13.0;1

Induction

28 Dell'Orto PHBH carburetors

Ignition

Electric ignition with capacitive output
Starting Electric

Max Power

29.3 hp / 21.8 kW @ 9900 rpm
Max Power Rear Tyre 25.3 hp @ 9500 rpm

Max Torque

18 Nm / 13.2 lb-ft @ 10250  rpm
Clutch Multi-disc oil bath

Transmission

6 Speed
Final Drive Chain

Front Suspension

Telescopic forks

Rear Suspension

Swing arm gas single shock

Front Brakes

Single 240mm disc

Rear Brakes

Drum

Front Tyre

2.75-21

Rear Tyre

4.10-17

Dry Weight

115 kg / 253 lbs

Wet Weight

 134 kg / 295 lbs

Fuel Capacity

Consumption Average

19.8 km/lit

Braking 60 - 0 / 100 - 0

13.4 m / 40.9 m

Standing ¼ Mile

16.3 sec / 122.2 km/h

Top Speed

134.4 km/h
