Harley Davidson FLHR-SE2 Screaming Eagle Road King CVO







Make Model

Harley Davidson FLHR-SE2 Screaming Eagle Road King CVO

Year

2003

Engine

Four stroke, 45° V-Twin, Twin Cam 88® vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1690 cc / 103 cu-in
Bore x Stroke 95.2 x 110.8 mm
Cooling System Air cooled
Compression Ratio 9.0:1
Lubrication Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10ě pressurized oil filter

Induction

Electronic sequential port fuel injection single runner, 45mm throttle bore ESPFI

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Toque

135.5 Nm / 100 lb-ft.@ 3500 rpm
Clutch Hydraulically actuated 9-plate

Transmission

5 Speed
Final Driver Gates carbon fiber reinforced poly chain belt
Gear Ratio 1st 10.110  2nd 6.958  3rd 4.953  4th 3.862  5th 3.150
Frame Mild steel; square-section backbone w/ twin downtubes
Swing Arm Mild steel, rectangular section w/ forged ends

Front Suspension

41.3mm Telescopic forks, 116mm wheel travel

Rear Suspension

Air-adjustable shocks, 76mm wheel travel

Front Brakes

2x 292mm discs 4 piston calipers

Rear Brakes

Single 292mm disc 4 piston caliper

Front Tyre

D402 MT90B16 72H

Rear Tyre

D402 MT90B16 74H
Rake  26.0°
Trail 156.6.3 mm / 6.2 in
Demensions Length  2380.0 mm / 93.7 in
Wheelbase 1612 mm / 63.5 in
Seat Height 685 mm / 27.0 in
Ground Clearance 127 mm / 5.0 in

Dry Weight

336 kg / 745 lbs

Fuel Capacity

18 9 Litres / 5.0 US gal

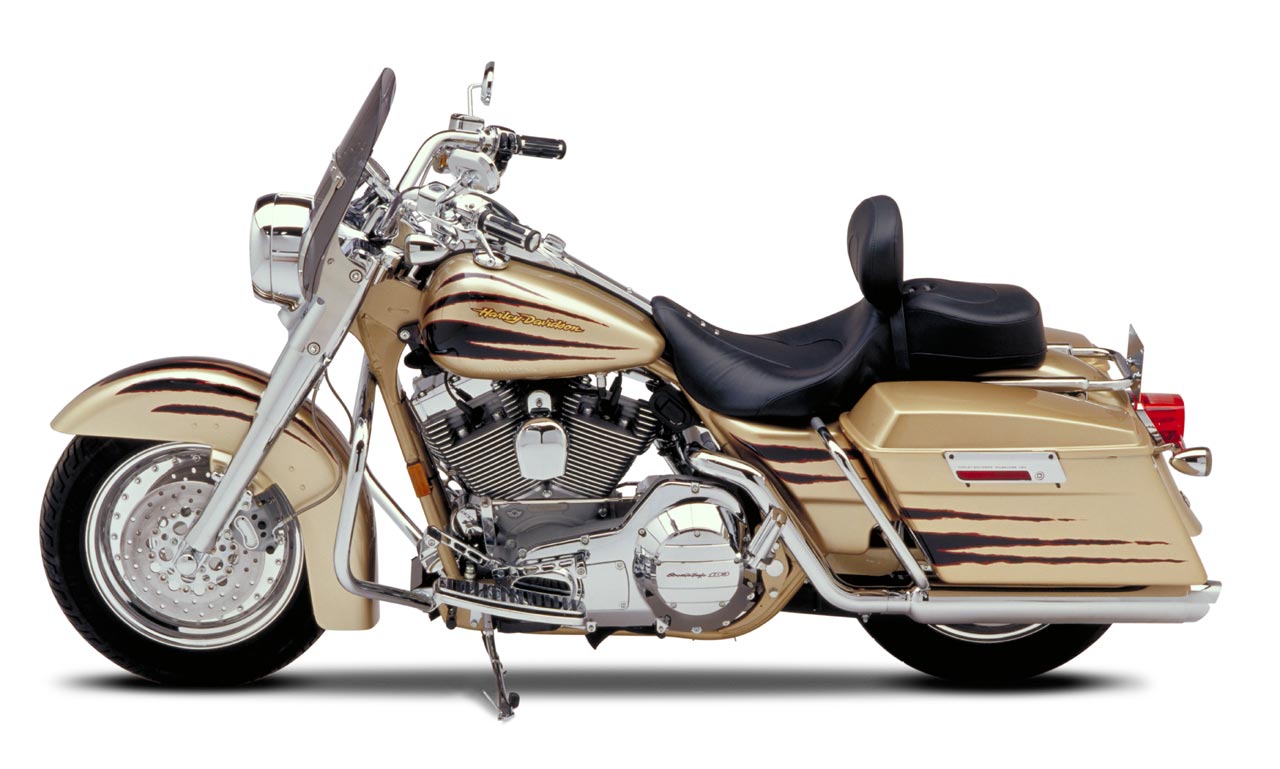

Built on the framework of a FLHRI Road King®, the Screamin' Eagle® Road King® continues to reign supreme. When parked in a place of honor, the subjects are certain to notice the Centennial Gold paint, with Vivid Black accents "ripped" through the front fender and saddlebags. The contrasting burgundy pinstripes set the tone, and the Gold Leaf tank emblem adds a royal touch. The Silver and Chrome 103 cubic inch "Stroker" Twin Cam powertrain lets the FLHRSEI2 rule the road. Grab the hydraulic lever that tames the high-performance clutch, drop it into gear, and let it roll.   But custom paint and exclusive features isn't all that makes the FLHRSEI2 unique.

FLHRSEI 2 incorporates all the Road King FLHRI model updates for model year 2003, and includes the following additional standard features:


-Twin Cam 103™ Powertrain finished in Silver and Chrome
-Black High Torque 1.4 KW Starter
-High Performance Clutch with Hydraulic Actuation
-High Strength Final Drive Belt
-Custom Oil Cooler
-Custom Oil Filter Mount with Internal Thermostat
-Bright Polished Spun Aluminum Solid Wheels
-Chrome Front and Rear Floating Brake Rotors
-Chrome Fork Sliders and Chrome Upper Fork Covers
-Chrome Lower Triple Tree Cover
-Silver Brake Calipers with Billet-style Inserts
-Chrome Front Axle Nut Covers
-Chrome Headlamp Bezel
-Bullet-style Front Turn Signals with Chrome Turn Signal Mounting Brackets
-Smoked Turn Signal Lenses with Amber Bulbs
-Detachable Dark Tinted Mini Wind Deflector
-Chrome, Fat 11/4-inch Diameter Handlebar with Internal Wiring
-Chrome Clutch and Brake Master Cylinders and Levers, and Chrome Switch Housings
Cruise Control
-Clear-coated, Braided Stainless Steel Control Cables
-Clear-coated, Braided Stainless Steel Front Brake and Clutch Lines
-Oval Billet-style Mirrors
-Silver Face Speedometer and Matching Mini Tach
-Billet Mini Tach Mount with 100th Anniversary Badges
-Custom Full-Length Billet Style Fuel Tank Console
-Chrome Extended Reach Billet Brake Lever
-Chrome Billet Heel/Toe Shift Levers
-Polished Stainless Steel Shift Rod
-Chrome Footboard Inserts, Shifter Pegs and Brake Pedal Pad
-Chrome Passenger Footpegs with Chrome Peg Mounts
-Stratum Collection Chrome Billet Timer, Derby and Air Cleaner Cover with Color-filled Script
-Chrome Head Bolt Covers
-Chrome Voltage Regulator
-Chrome Oil Vent Line with Chrome Fittings
-Chrome Oil Line Cover
-Custom Leather Seat with Chrome Inserts; Fully Adjustable Rider Backrest
-Detachable Passenger Backrest with Chrome Inserts
-Profile™ Low Rear Suspension
-Chrome Touring Mufflers with Chrome Billet End Caps
-Chrome Touring Muffler Shields
-Bullet-style Rear Turn Signals Mounted on a Chrome Narrow Turn Signal Bar
-Custom Painted Saddlebag Filler Strips
-Custom Rear Fender Cloisonne Medallion
-H-D ® Factory Security System with Alarm Siren
-Saddlebag Liners
-Custom Indoor Storage Cover
-Custom Color
-Centennial Gold with Vivid Black and Burgundy Accents
-Color-Matched Centennial Gold Frame, Swingarm and Footboard Support
